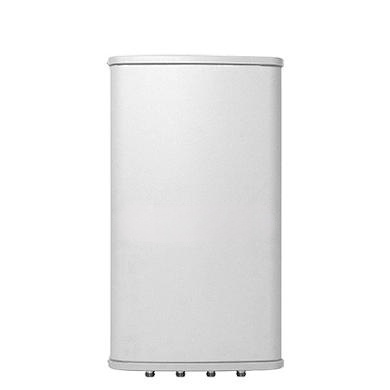

China Moneypro 4×4 MIMO Dual Band High Gain Panel Sector Antenna 2200-2500MHz 4400-5000 MHz 11-13dBi

Revolutionize Your Connectivity with a 4×4 MIMO Dual-Band Sector High-Gain Flat Panel Antenna

nn

In today’s fast-paced digital world, a weak signal can be more than an inconvenience; it can disrupt productivity, communication, and even security. If you are constantly battling dropped connections or sluggish data speeds, the solution lies in advanced antenna technology. Our 4×4 MIMO dual-band sector high-gain flat panel antenna is engineered to eliminate signal woes, delivering a robust and reliable communication experience. Whether you are managing a sprawling enterprise campus or a critical base station, this antenna promises to transform how you connect.

nn

Traditional antennas often struggle to balance coverage, capacity, and interference. This innovative design addresses these challenges head-on. As a sector antenna, it produces a distinct, controlled radiation pattern—typically a 120-degree azimuth beamwidth—that focuses energy precisely where it is needed. This targeted coverage reduces signal blind spots and minimizes interference with adjacent sectors, making it ideal for cellular networks, Wi-Fi hotspots, and point-to-multipoint systems. By concentrating the signal, you achieve stronger, more consistent connections across your coverage area.

nn

Unlocking New Speeds with 4×4 MIMO Technology

nn

At the heart of this antenna is 4×4 MIMO technology (Multiple Input, Multiple Output), a game-changer for modern wireless networks. Unlike single-antenna systems, 4×4 MIMO uses four separate transmit and receive paths to send multiple data streams simultaneously. This spatial multiplexing dramatically increases data throughput and network capacity—doubling or even quadrupling the data rate compared to standard configurations. For users, this means blazing-fast downloads, smoother video streaming, and lower latency, even in congested environments. The antenna’s four ports (each with dual-band capability) ensure that every data stream is transmitted with maximum efficiency, leveraging both the S-band (2200–2500 MHz) and C-band (4400–5000 MHz) frequencies.

nn

Dual Polarization for Enhanced Stability and Interference Rejection

nn

Another standout feature is the antenna’s dual polarization antenna design. By processing signals in two orthogonal polarizations—specifically, ±45° slant—it effectively doubles the available signal paths without requiring additional spectrum. This dual-polarization architecture enhances signal stability and resilience against interference, such as reflections from buildings or obstacles. In practical terms, it reduces fading and multipath effects, ensuring a cleaner, more reliable connection. Whether you are deploying for 4G LTE or 5G NR networks, this antenna’s polarization diversity guarantees robust performance in diverse environmental conditions.

nn

Seamless Adaptation Across 4G and 5G Networks

nn

Flexibility is a key requirement for future-proof infrastructure. The 4×4 MIMO dual-band sector high-gain flat panel antenna is designed to operate across two critical frequency bands—2200–2500 MHz and 4400–5000 MHz—making it compatible with both 4G and 5G networks. As a 4G 5G sector antenna, it supports legacy systems while embracing next-generation standards. This dual-band capability means you can bridge the gap between current and emerging technologies without hardware replacement. For example, in a 5G deployment, the C-band provides higher capacity and faster speeds, while the S-band ensures broader coverage and better penetration, making it an ideal choice for urban, suburban, and rural applications.

nn

High Gain and Long-Range Performance

nn

Signal strength over distance is a critical metric for any antenna. This model boasts a high gain of 11 dBi minimum in the S-band and 13 dBi minimum in the C-band—across all four ports. Combined with a narrow elevation beamwidth of 9 to 11 degrees, this gain ensures that the signal remains powerful and focused even over long distances. The result is a reliable link for remote sites, large warehouses, or outdoor events where distance and obstacles are constant challenges.

nn

Product Specifications: 4×4 MIMO Dual-Band Sector High-Gain Flat Panel Antenna

nn

Below are the complete technical parameters for this antenna. These specifications are crucial for system integrators and network engineers to ensure optimal integration and performance.

nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

Rugged Design for Any Environment

nn

Durability is just as important as performance. This flat panel antenna features a sleek, low-profile design that simplifies installation. The UV-stable radome and IP-67 ingress protection rating ensure resistance to dust, rain, snow, and extreme temperatures ranging from -40°F to +140°F. With a rated wind speed of 150 mph, it can withstand severe weather conditions without compromising performance. The included pole mounting kit supports 1.0” to 3.0” outer diameter pipes and offers 0 to -15 degrees of adjustable elevation angle (downtilt), allowing for precise alignment and coverage optimization.

nn

Conclusion

nn

From base station signal coverage in dense urban areas to enterprise campus network installations, this 4×4 MIMO dual-band sector high-gain flat panel antenna is the ultimate solution for high-speed, stable, and interference-resistant communication. Its combination of sector pattern precision, MIMO efficiency, dual polarization resilience, and rugged construction makes it a versatile and future-ready choice. Say goodbye to poor signal and hello to a new era of connectivity—where every packet, every call, and every stream is delivered with uncompromising quality.
