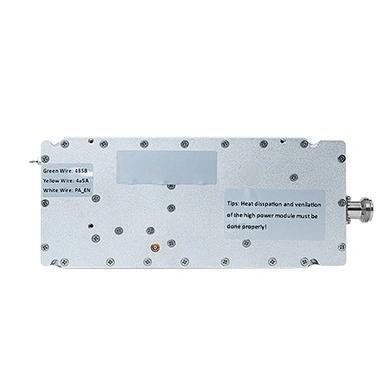

Powerful Performance: The MOP-PA-5.1/5.9G-150W Wideband Power Amplifier
n
In the demanding world of RF communications, signal integrity and output power are non-negotiable. The MOP-PA-5.1/5.9G-150W power amplifier module stands as a robust solution, engineered to deliver a consistent 150W of linear power across a staggering range of frequencies. This isn’t just another amplifier; it’s a precision component built for mission-critical systems where reliability and clarity are paramount. For engineers and system integrators seeking a 150W power amplifier module that combines flexibility with high gain, this device offers a perfect balance of performance and durability, ensuring your signals cut through noise and distance with unwavering strength.
n
The device is meticulously designed to handle multiple communication standards and frequency bands, from 20 MHz up to 6000 MHz. Whether you are working on specialized point-to-point links, broadband jamming systems, or sophisticated SDR platforms, this module adapts to your specific frequency needs while maintaining an impressive 50dB of gain. Its compact, shielded enclosure not only protects the sensitive electronics but also simplifies integration into existing rack-mount or chassis-based systems.
nn
Exceptional Gain and Signal Fidelity
n
One of the standout features of this 150W power amplifier module is its remarkable 50±2dB gain, which allows for weak input signals to be amplified with minimal distortion. The in-band flatness ensures that the entire operational bandwidth remains consistent, preventing signal droop at the edges. This level of fidelity is critical for digital modulations that rely on precise amplitude and phase relationships. Furthermore, with an input and output VSWR of ≤1.5, the amplifier presents an excellent 50-ohm match to both the driver stage and the antenna, reducing reflections and maximizing power transfer.
n
The amplifier is protected by a sophisticated monitoring and control interface. A standard DB9 connector provides real-time access to critical telemetry, including temperature readings (TEMP) and voltage standing wave ratio (VSWR). The PA_EN pin allows for quick enable/disable control, making it easy to implement power-saving modes or emergency shutdown sequences. These features make the module not just powerful, but intelligent and user-friendly for both development and deployment phases.
nn
Comprehensive Specifications of the 150W Power Amplifier Module
nn
| Parameter | Value / Range |
|---|---|
| Model | MOP-PA-5.1/5.9G-150W |
| Output Power | 150W (Continuous) |
| Gain | 50 ± 2 dB |
| Operating Voltage | DC +28V |
| Operating Current | Depends on Power Output |
| Working Frequency | 20-100 / 100-300 / 300-500 / 500-700 / 700-851 / 851-894 / 894-960 / 925-960 / 960-1300 / 1300-1570 / 1570-1620 / 1620-1805 / 1805-1880 / 1880-2110 / 2110-2170 / 2110-2400 / 2400-2500 / 2500-2700 / 2700-3400 / 3400-3800 / 3800-4400 / 4400-5000 / 5000-6000 / 5100-5900 MHz |
| In-Band Flatness | Optimized per Band |
| Input/Output VSWR | ≤1.5 |
| Maximum Lossless Input | +10 dBm |
| RF Ports | RF IN: SMA-KFD; RF OUT: N-F |
| Power Supply Interface | 2W2 (2-pin Power Connector) |
| Monitoring Interface | DB9: Pin 1 (TEMP), Pin 3 (VSWR), Pin 6 (PA_EN) |
| Out-of-Band Spurs | 9kHz-1GHz: ≤-36dBm/30kHz; 1GHz-12.75GHz: ≤-30dBm/30kHz |
| Amplifier Dimensions | 181 x 77 x 25 mm |
nn
Built for Rugged Environments
n
Durability is a cornerstone of this design. The 150W power amplifier module is rated for an operating temperature range of -10°C to +55°C and can be stored between -25°C and +65°C. Relative humidity from 5% to 95% without condensation is also supported, ensuring reliable performance even in challenging climates. The module’s robust housing and military-grade connectors (SMA for input and N-type for output) guarantee a secure, low-loss connection that withstands vibration and thermal cycling.
n
From base stations and repeaters to military communications and test equipment, this amplifier is a versatile workhorse. Its ability to cover such a broad spectrum with a single unit reduces inventory complexity and system footprint. If your project demands a high-power, clean, and reliable signal amplification, the MOP-PA-5.1/5.9G-150W is precisely the 150W power amplifier module you need to get the job done right. Whether in a lab or in the field, this module delivers consistent, measurable performance that professionals can trust.
