Unleashing the Power of the 5.8G Power Amplifier: A Comprehensive Guide
The world of signal generation demands precision, reliability, and robust power. Whether you are an engineer testing new wireless protocols, a technician calibrating communication equipment, or a researcher pushing the boundaries of RF technology, the quality of your signal source is paramount. This is where a high-performance 5.8G power amplifier becomes an indispensable tool. It is not merely a booster; it is the critical bridge between a weak signal generator and a powerful, usable output. By taking a clean, low-power signal and elevating it to a formidable 50W, this module transforms your signal source into a versatile and potent asset.
Operating in the dedicated 5725–5850MHz ISM band, this amplifier is engineered for industrial, scientific, and commercial applications. It combines exceptional efficiency with intelligent monitoring, ensuring that your signal remains stable, clean, and precisely controlled. From drone communication and wireless video broadcasting to test equipment and cellular infrastructure, a dependable 5.8G power amplifier is the foundation for success. This guide explores the intricate details of this advanced module, from its core specifications to its comprehensive monitoring and control capabilities, helping you understand how to integrate and leverage its full potential.

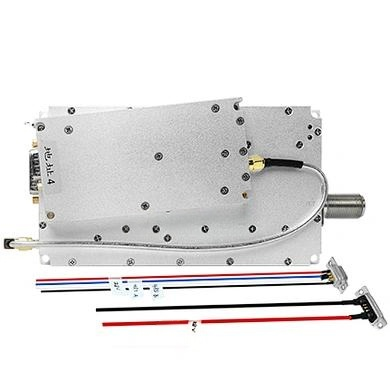

Core Technical Specifications of the 5.8G Power Amplifier
Understanding the raw performance metrics is the first step to appreciating this module. The following table details the critical electrical and physical characteristics that define its operation.
| Parameter | Value | Remark |
|---|---|---|
| Working Frequency | 5725 MHz – 5850 MHz | Full 5.8G ISM band coverage |
| Maximum Output Power | 50W (47 dBm) | Peak CW output |
| Operating Voltage | 28V DC (24-36V range) | Standard 28V recommended |
| Conversion Efficiency | ≥42% | @ 50W output power |
| Adjustable Output Power | 10W ~ 50W | Digitally controlled via software |
| Gain | 47 ± 1.0 dB | High and stable gain |
| In-Band Flatness | ≤ 2.5 dB (peak) | Ensures signal fidelity |
| Input VSWR | ≤ 1.35 | Tested with +28V, -10dBm input |
| Output VSWR | ≤ 1.35 | Tested with +28V, -10dBm input |
| Maximum Allowable Input | ≥ +10 dBm | Withstands 1 minute without damage |
| Spurious Emissions (In-band) | ≤ -15 dBm / 1MHz | Measured at max output with CW signal |
| Spurious Emissions (Out-of-band) | No higher than noise floor | 9 KHz – 12.75 GHz range |
| Operating Temperature | -10°C to +65°C | Full functionality; cold start capable |
| Gain Stability | ±1.5 dB | Over -40°C to +65°C temperature range |
| Power Stability | ±1 dB | Over -40°C to +65°C temperature range |
| Power Requirements | ≥4.5A @ +28Vdc | For 50W CW output |
| Communication Interface | RS485 | 7W2 Male Connector (1:485A, 2:485B) |
| RF Output Connector | N-Female | Standard rugged connector |
| Physical Dimensions (5.8G) | 155 x 125 x 26 mm | Integrated module; requires heatsink |
| Weight | Lightweight (approx. 500g) | Varies by frequency band variant |
| Indicator LEDs | POWER, RUN, ALARM | At-a-glance status monitoring |
Enhanced Control and Monitoring Features
Beyond raw power, a truly intelligent 5.8G power amplifier is defined by its control and protection systems. This module incorporates a sophisticated suite of monitoring functions that ensure reliable operation in demanding environments. Via the RS485 communication interface, users can directly query and set critical parameters, transforming a simple amplifier into a managed subsystem.
Detailed Setting Parameters for the Power Amplifier
The following table outlines the configurable parameters that give you precise command over the amplifier’s behavior and safety thresholds.
| Setting Parameter | Description | Function / Remark |
|---|---|---|
| Amplifier Switch | Turn the amplifier on or off | Remote shutdown and startup capability |
| Alarm Switch | Enable or disable the alarm function | Global alarm control |
| Downlink Power Control | Sets the maximum output power | Adjustment range ≥20dB; supports high, medium, low levels |
| Over-Temperature Alarm Threshold | Sets the shutdown temperature for high heat | Auto-shutdown at 85°C; auto-recovery at 65°C |
| Over-Power Alarm | Alarms when actual power exceeds ALC threshold by 2dB | Triggers automatic shutdown for protection |
| Standing Wave (VSWR) Alarm | Alarms when VSWR > 4.0 | Automatic shutdown prevents damage from mismatched loads |
| Overcurrent Alarm | Alarms when current exceeds 12A | Automatic shutdown to protect internal circuitry |
| Under-Power Alarm | Alarms when detected power is below 33dBm (2W) | Indicates a potential fault or low input signal |
| Overvoltage Alarm | Alarms when voltage exceeds 32V | Automatic shutdown prevented damage from supply spikes |
| Undervoltage Alarm | Alarms when voltage drops below safe operating level | Protects against unstable power supplies |
Detailed Query Parameters for Real-Time Status
For complete awareness, the amplifier provides a rich set of queryable data, allowing for comprehensive system health and performance diagnostics.
| Query Parameter | Description | Accuracy / Range |
|---|---|---|
| Amplifier Switch Status | ON or OFF state of the amplifier | Binary state confirmation |
| Downstream Output Power Level | Detected output power value | Detection Accuracy: Pout ± 1dB (Range: Pmax+2 to Pmax-20 dB) |
| Downward Standing Wave Ratio (VSWR) | Current VSWR value | Normal: ~1.2; Mismatch: ~4.0 |
| Temperature Query | Internal module temperature | Detection Error: ±3°C (Range: -40°C to +100°C) |
| ALC Value Query | Current Automatic Level Control value | Equals the actual set value |
| Voltage Detection | Module working voltage | Real-time supply voltage reading |
| Current Detection | Module operating current | Real-time current draw reading |
Signal Generator Integration and Control Modes
A key advantage of this 5.8G power amplifier is its deep integration capability with modern signal generators. The RS485 interface allows a host controller to treat the amplifier as a seamless extension of the source, with multiple frequency setting modes to suit various testing and operational scenarios.
| Frequency Setting Mode | Description | Key Parameters |
|---|---|---|
| Mode 1: Single Frequency | Set any single frequency point within the 5725-5850 MHz range | Frequency setting accuracy: 1 MHz |
| Mode 2: Broadband Sweep | Set a broadband frequency sweep, defining start, stop, interval steps, and dwell time | Maximum bandwidth: 500 MHz within the 6G range |
| Mode 3: Sub-Frequency Segments | Set any 4 sub-frequency segments within the total bandwidth; segments are incremented automatically | Supports complex test sequences |
Conclusion: Elevating Your Signal Source Performance
The journey from a delicate signal generator output to a robust, high-power transmission demands a partner you can trust. This 5.8G power amplifier is exactly that—a meticulously engineered module that not only delivers exceptional power and efficiency but also offers the intelligence and control required for mission-critical applications. Its 50W peak output, combined with precise gain and excellent in-band flatness, ensures that your signal source’s integrity is preserved while its strength is dramatically amplified.
Furthermore, the comprehensive suite of protection and monitoring functions, from over-temperature to VSWR alarms, guarantees operational safety and longevity. The ability to set, query, and control parameters via RS485 transforms this amplifier from a simple component into a smart, adaptable asset. For any engineer or technician seeking to get the most out of their signal source, investing in a high-quality 5.8G power amplifier is the definitive step toward achieving reliable, powerful, and precise signal processing. This module is not just about boosting power; it is about empowering your entire RF system to perform at its peak.
