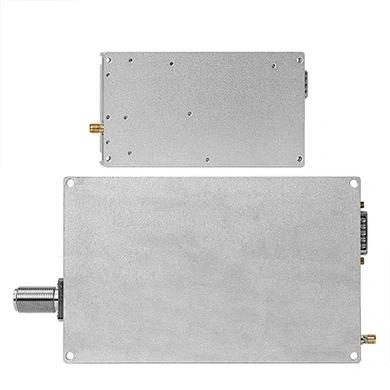

Exceptional RF Amplification: The Ultimate Module with DDS Signal Source
In the competitive landscape of RF amplification, finding a unit that combines power, precision, and versatility can be a daunting task. This high-performance amplifier delivers robust RF amplification across a 300-600MHz operating range, establishing itself as a premier power amplifier for sale in commercial and industrial markets. Whether you are driving analog sources or integrating with digital synthesis systems, this module with DDS signal source compatibility provides the stability and performance required for the most demanding applications.
Reaching a peak output power of 50W while maintaining exceptional spectral purity, this amplifier sets a new standard for clean amplification. Harmonics are suppressed below -10dBc, and spurious emissions are held under -60dBc, ensuring that your signal integrity remains intact even at full power. This makes it an ideal signal source power amplifier for environments where electromagnetic cleanliness is non-negotiable, such as electronic warfare, radar, and precision test equipment.
Signal Source Power Amplifier: Performance That Delivers
Engineered for reliability and consistency, this amplifier combines a robust 48±3dB gain with ±3dB flatness, ensuring stable performance across the entire operating band. Whether you are using it as a standalone unit or as a module with DDS signal source capability, you can count on predictable, repeatable results. The device operates at 22% efficiency with a 28-30V DC supply, drawing only 6.5A at 40W output, making it both powerful and power-conscious.
The unit’s ≤2:1 VSWR at both ports minimizes impedance matching challenges, a critical advantage when interfacing with sensitive DDS amplifier equipment. This low VSWR reduces signal reflections and preserves the quality of your output, especially in complex system architectures. The amplifier’s 5dBm maximum input tolerance provides ample headroom, protecting against accidental overdrive and ensuring long-term reliability.
Key Specifications and Performance Data
To fully appreciate the capabilities of this module with DDS signal source, review the detailed specifications below. All technical parameters are presented in a clear, structured format for easy reference.
| Parameter | Unit | Min | Typ | Max | Symbol |
|---|---|---|---|---|---|
| Operating Frequency | MHz | 300 | – | 600 | Fo |
| Operating Bandwidth | MHz | – | 1300 | – | BW |
| Peak Output Power @CW Signal | W | – | 50 | – | PSAT |
| Input Power | dBm | – | -2±3 | – | PIN |
| Maximum Input Power @Without Damage | dBm | – | – | 5 | PIN, MAX |
| Power Gain @Input Power 0dBm | dB | – | 48±3 | – | GP |
| Gain Flatness @Input Power 0dBm | dB | – | – | ±3 | ∆GP |
| Efficiency | % | – | 22 | – | EFF |
| Harmonics 1 to N @Output Power 40W | dBc | 10 | – | – | HN |
| Spurious Level | dBc | 60 | – | – | Spur |
| Input VSWR | dB | – | – | 2:1 | VSWR |
| Output VSWR | dB | – | – | 2:1 | VSWR |
| Operating Voltage | V | – | 28-30 | – | VDC |
| Current Consumption @Output Power 40W | A | – | 6.5 | – | IDC |
Broadband Excellence: The Power Amplifier for Sale That Delivers
One of the standout features of this signal source power amplifier is its exceptional instantaneous bandwidth of 1300MHz—a rare achievement for a 50W unit. This wide bandwidth allows the amplifier to cover multiple frequency bands and standards without the need for switching or retuning, making it an indispensable tool for multi-standard testing, broadband communication systems, and electronic warfare applications. The module with DDS signal source capability ensures that digital synthesis precision is maintained across the entire frequency range, offering unmatched flexibility.
In military and aerospace applications, the ability to maintain -60dBc spurious suppression even at full power is critical for operating in sensitive spectral environments. The amplifier’s rugged design ensures reliable operation at baseplate temperatures up to 50°C, providing the durability required for harsh field conditions. Commercial wireless infrastructure equally benefits from its flexible 300-600MHz coverage and efficient 22% operation, reducing heat dissipation and operational costs.
Versatile Applications Across Industries
This power amplifier for sale is not limited to a single use case. Laboratories will appreciate its ±3dB flatness and 48dB gain, which ensure measurement accuracy and repeatability in device testing. When used as a module with DDS signal source driver in ECM or radar systems, it delivers the stability and precision required for critical operations. The amplifier’s compatibility with DDS amplifier systems makes it a natural fit for applications requiring digital synthesis, such as software-defined radio and advanced signal generation.
Unlike many power amplifier for sale options that are limited to narrow bands, this unit maintains full specifications across its entire range—a key advantage for multi-standard testing and future-proofing your investment. Whether you are upgrading an existing system or designing a new one from scratch, this amplifier offers the power, bandwidth, and linearity you need.
Conclusion: A Standout Choice in the Power Amplifier for Sale Market
This amplifier unit combines DDS amplifier compatibility with robust 50W output in a thermally-efficient package, making it a superior choice for a wide range of applications. Whether used as a module with DDS signal source component or as a standalone signal source power amplifier, it delivers exceptional bandwidth, power, and linearity. The attention to spectral purity, low spurious emissions, and wide operating bandwidth ensures that this power amplifier for sale stands out among its peers. For engineers and system integrators seeking reliability, performance, and versatility, this amplifier represents a standout choice in the power amplifier for sale market—a true workhorse for the most demanding RF environments.
