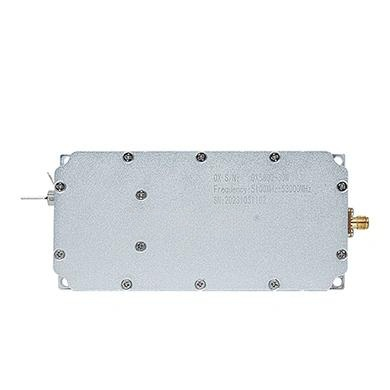

100W Power Amplifier with VCO Signal Source Module: MOP-PA-5725/5850M-30W
nn
Unlock the full potential of your RF systems with the MOP-PA-5725/5850M-30W, a robust 100W power amplifier module that integrates a cutting-edge VCO signal source. Designed for demanding applications in the 5.1–5.3 GHz frequency range, this module delivers exceptional power output and stability, making it an ideal choice for communication, radar, and testing environments. Whether you need high-fidelity signal amplification or reliable performance under extreme conditions, this module offers a compact, all-in-one solution. Its built-in protection features and customizable control options ensure operational safety and flexibility, making it a trustworthy component for engineers and hobbyists alike.
nn
Key Specifications and Technical Parameters
nn
Below are the detailed specifications for the MOP-PA-5725/5850M-30W module, highlighting its performance metrics, electrical requirements, and physical characteristics. These parameters ensure optimal functionality in a variety of RF applications.
nn
| Test Item | Indicator | Remarks |
|---|---|---|
| PA Frequency Range | 5100–5300 MHz | Bandwidth: 200 MHz |
| Maximum Output Power | 45 ± 0.5 dBm | Approximately 100W |
| Operating Voltage | 28 V (24–28 V range) | Stable within tolerance |
| Operating Current | 2.3 A @ 30W (typical) | Varies with output power |
| In-Band Fluctuation | ±1 dB | Lasts 1 min without damage |
| Gain | 45 ± 0.5 dB | Peak to peak |
| Input/Output VSWR | ≤1.5 | Voltage standing wave ratio |
| Power Stability | ±1 dB @ –20°C to +85°C | Over operating temperature range |
| RF Output Connector | SMA-50KFD | Standard SMA female |
| Operating Temperature | –20°C to +85°C | Industrial grade |
| Module Dimensions | 119 × 50 × 16 mm | Compact form factor |
| Module Protection | Over-temperature, standing wave | Built-in safeguards |
| Control Switch | 3.3V/5V: ON; 0V: OFF | Feedthrough capacitor |
| Input Signal Source | Built-in high-speed noise modulation | VCO-based |
| Power Supply Input | VCC +28V; GND | Via feedthrough capacitor |
nn
Comprehensive Performance Insights
nn
This module excels in high-power amplification, boasting a maximum output of 100W with minimal gain variation across the 200 MHz bandwidth. The integrated VCO signal source eliminates the need for external oscillators, simplifying system design and reducing component count. Its power stability of ±1 dB over a wide temperature range ensures consistent operation in harsh environments, from industrial settings to outdoor installations.
nn
Robust Protection and Control Features
nn
Safety is paramount with this amplifier. The over-temperature and standing wave protection mechanisms prevent damage from thermal overload and impedance mismatches, extending the module’s lifespan. The control switch, operating at 3.3V or 5V logic (with 0V for shutdown), allows easy integration into automated systems via feedthrough capacitors.
nn
Operational Flexibility and Applications
nn
The MOP-PA-5725/5850M-30W is engineered for versatility. Its compact dimensions (119×50×16 mm) make it suitable for space-constrained enclosures, while the SMA-50KFD connector ensures compatibility with standard RF cabling. Typical applications include point-to-point communications, wireless backhaul, and test equipment, where reliable power amplification and signal fidelity are critical.
nn
Conclusion
nn
The MOP-PA-5725/5850M-30W 100W power amplifier with VCO signal source module delivers a powerful combination of high output, built-in intelligence, and rugged design. By integrating key specifications like 45 dB gain, ±1 dB stability, and comprehensive protection, it addresses the needs of modern RF engineers. Whether you are optimizing a communication link or designing a test bench, this module provides the confidence of performance without compromise.
