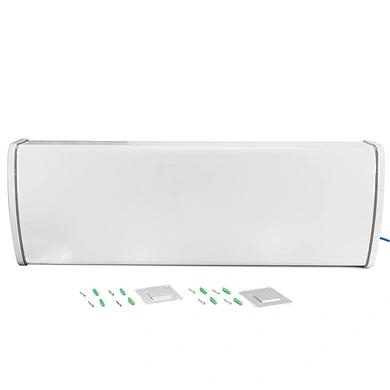

Unlocking Reliable Connectivity: The MOP-BDA-738-5/6NF(DF/MF) Antenna
nn
In the fast-evolving world of wireless communication, the backbone of any robust network lies in its antenna technology. Whether you are enhancing indoor coverage, extending cellular reach, or supporting critical infrastructure, choosing the right antenna can make the difference between dropped calls and seamless data streams. The MOP-BDA-738-5/6NF(DF/MF) emerges as a versatile and high-performance solution, engineered to meet the stringent demands of modern telecommunications. This article delves into the electrical and mechanical prowess of this antenna, exploring how its specifications translate into real-world performance. From its wide frequency coverage to its rugged design, we uncover why this model is a trusted choice for professionals seeking reliability and efficiency. By the end of this deep dive, you will understand how this antenna holds its own in a competitive market, offering a blend of power, precision, and practicality.
nn
Understanding the Electrical Specifications of the MOP-BDA-738-5/6NF(DF/MF)
nn
At the heart of any antenna’s performance lie its electrical characteristics. These specifications define how the antenna interacts with radio signals, influencing coverage, signal strength, and overall system efficiency. The MOP-BDA-738-5/6NF(DF/MF) is designed to operate across two critical frequency ranges, ensuring compatibility with a wide array of wireless standards, including 2G, 3G, 4G LTE, and even some 5G bands. Let’s break down these parameters to appreciate their significance.
nn
Frequency Range and Gain: A Dual-Band Advantage
nn
The antenna covers 698–960 MHz and 1710–3800 MHz, bridging low-band and high-band frequencies. This dual-band capability is essential for systems that require both wide-area coverage (lower frequencies) and high-capacity data throughput (higher frequencies). The gain, a measure of signal focus, is specified at 5±1 dBi for the lower band and 6±1 dBi for the upper band. This provides a balanced performance, ensuring strong signal delivery without excessive complexity. The vertical polarization aligns with standard base station and mobile device configurations, making integration straightforward.
nn
VSWR and Power Handling: Efficiency and Durability
nn
A Voltage Standing Wave Ratio (VSWR) of ≤1.5 across both bands indicates excellent impedance matching. This low VSWR minimizes signal reflection, maximizing power transfer from the transmitter to the antenna. It also reduces heat generation and protects the radio equipment. With a maximum input power of 200 watts, this antenna can handle substantial energy, making it suitable for both indoor and outdoor bi-directional amplifier (BDA) systems. This power rating ensures reliable performance in high-traffic zones like stadiums, shopping centers, and corporate campuses.
nn
Connector Type and Mechanical Resilience
nn
The flexibility to support N-type, Din, or 4.3-10 female connectors allows for easy integration with various cable types and equipment brands. Weighing in at just 2.0 kilograms, the antenna is lightweight yet robust. Its wind survival rating of 120 mph (200 kph) ensures it remains stable in harsh weather conditions, while the equivalent flat plate area of 0.63 square feet (0.058 square meters) minimizes wind load on mounting structures. For a comprehensive view, the table below summarizes all key electrical and mechanical specifications.
nn
| Parameter | Low Band (698–960 MHz) | High Band (1710–3800 MHz) |
|---|---|---|
| Frequency Range | 698–960 MHz | 1710–3800 MHz |
| Gain | 5 ±1 dBi | 6 ±1 dBi |
| VSWR | ≤1.5 | ≤1.5 |
| Polarization | Vertical | |
| Maximum Input Power | 200 watts | |
| Connector Type | N / Din / 4.3-10 Female | |
| Weight | 2.0 kg | |
| Wind Survival Rating | 120 mph (200 kph) | |
| Equivalent Flat Plate Area | 0.63 ft² (0.058 m²) | |
| Shipping Dimensions | 892 × 320 × 170 mm | |
| Shipping Weight | 4.3 kg | |
| Mounting Type | Wall mounted | |
nn
Practical Applications and Installation Considerations
nn
The MOP-BDA-738-5/6NF(DF/MF) is engineered for simplicity and effectiveness. Its wall-mountable design makes it ideal for indoor or protected outdoor installations where vertical surface mounting is convenient. The compact shipping dimensions of 892×320×170 mm and a shipping weight of 4.3 kg facilitate easy logistics and handling. Low VSWR and high power handling ensure that this antenna supports bidirectional amplifier systems without degrading signal quality. For installers, the combination of optional connectors simplifies inventory management across multiple projects.
nn
Choosing the Right Antenna for Your Network
nn
When upgrading or building a wireless system, the electrical specifications of an antenna directly impact coverage footprint and data throughput. A dual-band antenna like this one reduces the need for separate units, saving space and cost. The vertical polarization matches common infrastructure, and the robust mechanical design promises longevity. By selecting an antenna with these well-considered electrical specifications, you invest in a solution that bridges performance and reliability, whether for an office building, hospital, or public venue.
nn
Conclusion: A Balanced Performer for Modern Demands
nn
The MOP-BDA-738-5/6NF(DF/MF) antenna stands out through its precise electrical specifications, combining wide frequency agility with efficient power handling and durable construction. It meets the demands of contemporary wireless systems where coverage and capacity are paramount. By integrating this antenna into your network, you ensure that every electrical specification contributes to a stable, high-quality connection. Embrace the confidence that comes with robust design and proven performance as you enhance your communication infrastructure for tomorrow’s challenges.
