Precision 5G Signal Distribution: The 5G Micro Power Divider 3 Way Microwave Power Splitter N Female Connector
nn
In the rapidly evolving landscape of 5G communication, the need for reliable and efficient signal distribution has never been greater. The 5G Micro Power Divider 3 Way Microwave Power Splitter N Female Connector emerges as a cutting-edge solution, engineered to meet the rigorous demands of modern 5G networks. By combining advanced microstrip technology with robust design, this device ensures that signals are distributed with minimal loss and maximum clarity, making it an essential component for network engineers and system integrators.
nn
Wide Frequency Coverage and Advanced Technology
n
Optimized for 5G applications, this microfabricated power splitter covers an impressive frequency range from 698 MHz to 4000 MHz, seamlessly adapting to both sub-6 GHz and legacy bands. Its core design leverages microstrip technology, allowing for compact dimensions while maintaining superior signal integrity. This precision engineering guarantees that each output port receives an equal and well-balanced division of the input signal, a critical requirement for maintaining network performance in dense deployment scenarios.
nn
Exceptional Electrical Performance for Reduced Signal Loss
n
The electrical characteristics of the 5G Micro Power Divider 3 Way Microwave Power Splitter N Female Connector its reputation as a high-performance component. Its voltage standing wave ratio (VSWR) of ≤1.3:1 minimizes signal reflection, ensuring stable transmission without disruptive echoes. With an insertion loss of ≤1.2 dB and a distribution loss of ≤4.8 dB, energy wastage during splitting is effectively curbed, preserving signal strength across the network. Additionally, a third-order intermodulation distortion (IMD) as low as -155 dBc at 2×43 dBm keeps interference to an absolute minimum, safeguarding signal purity. The device supports an average power handling of 50W, suitable for a range of outdoor and indoor 5G infrastructure.
nn
Robust Construction and Versatile Connectivity
n

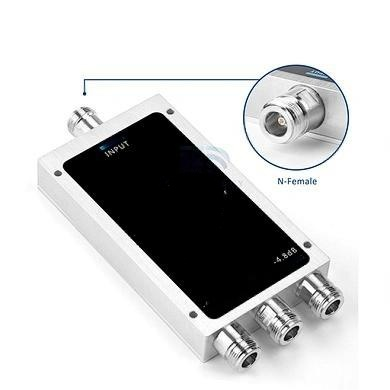

Built for reliability, this three-way splitter features a 50Ω characteristic impedance and an N-type female connector, widely recognized for its secure and stable interface with various 5G equipment. The unit operates dependably within a temperature range of -35°C to +65°C, ensuring functionality in harsh environmental conditions. Its durable black-plated finish not only enhances visual appeal but also provides corrosion resistance and long-term mechanical protection.
nn
Technical Specifications: 5G Micro Power Divider 3 Way Microwave Power Splitter N Female Connector
nn
| Parameter | Value |
|---|---|
| Frequency Range | 698 – 4000 MHz (Microstrip) |
| Number of Ways (Split) | 3 |
| Voltage Standing Wave Ratio (VSWR) | ≤1.3:1 |
| Insertion Loss | ≤1.2 dB |
| Split Loss | ≤4.8 dB |
| Average Power Handling | 50 W |
| Third Order IMD (2×43 dBm) | ≤-155 dBc |
| Impedance | 50 Ω |
| Connector Type | N Female |
| Operating Temperature Range | -35°C to +65°C |
| Application Environment | Indoor or Outdoor |
| Finish | Black Plated |
nn
Additional Configuration Options
n
For systems requiring different splitting configurations, this splitter family also supports 2, 4, 6, and 8-way models. All variants maintain the same low VSWR (≤1.3:1) and are available with DIN, 4.3-10, or N-Female connector options, while insertion loss, split loss, and average power are tailored per configuration. The black-plated finish and wide operating temperature range apply across the product range, ensuring consistent performance for diverse outdoor and indoor deployments.
nn
Applications in 5G Infrastructure
n
Whether deployed in macro base station sites, small cell installations, indoor DAS (Distributed Antenna Systems), or coverage extension for rural networks, the 5G Micro Power Divider 3 Way Microwave Power Splitter N Female Connector proves invaluable. Its low-loss characteristics and reliable connectivity help network operators achieve high-speed, stable 5G coverage while simplifying equipment planning and reducing signal degradation. This power splitter emerges as a trusted tool for building robust communication networks that meet the high-frequency and low-latency demands of the 5G era.
nn
Conclusion: Elevating 5G Network Performance
n
In summary, the 5G Micro Power Divider 3 Way Microwave Power Splitter N Female Connector stands out as a strategic choice for professionals aiming to optimize 5G signal distribution. With a design that prioritizes low loss, high isolation, and environmental resilience, it delivers on the promise of seamless connectivity for modern networks. By integrating this advanced splitter into your infrastructure, you can ensure that every signal path maintains the fidelity needed for demanding 5G applications, making it an indispensable asset in the evolution of wireless communications.
