Mastering Dual-Band Signal Processing: The MOPFC-7.7-9.5G-4342 High Suppression Filter
nnIn the demanding realm of millimeter wave components, signal integrity is paramount. The MOPFC-7.7-9.5G-4342 emerges as a sophisticated solution, combining dual-band upconversion with exceptional filtering capabilities. This high suppression filter is engineered for precision in X/Ku band applications, offering a level of performance that simplifies complex RF architectures while reducing overall system size by up to 30%.nnAt its core, this module integrates two independent RF channels, operating in the 7.7-7.85 GHz and 9.1-9.5 GHz bands. With passband flatness of ≤2 dB and out-of-band suppression exceeding 65 dBc, it effectively eliminates adjacent-channel interference, ensuring clean signal paths for sensitive communications and radar systems. The device accepts a 930 MHz IF input and delivers ≥15 dB conversion gain with an output P-1 of ≥11 dBm, making it a robust choice for transmitter chains and frequency-hopping applications.nn
Key Specifications and Technical Parameters
nnThe following table outlines the critical performance metrics of the MOPFC-7.7-9.5G-4342 high suppression filter, ensuring clarity for system designers and integrators.nn
| Parameter | Value |
|---|---|
| Conversion Gain | ≥15 dB |
| Output P-1 | ≥11 dBm |
| Output Frequency (Channel 1) | 7.7 GHz – 7.85 GHz |
| Output Frequency (Channel 2) | 9.1 GHz – 9.5 GHz |
| Passband Flatness (Each Channel) | ≤2 dB |
| Input IF Frequency | 930 MHz |
| LO Frequency (Channel 1) | 8.63 GHz – 8.78 GHz |
| LO Frequency (Channel 2) | 8.17 GHz – 8.57 GHz |
| Filter Passband (Channel 1) | 7.7 GHz – 7.85 GHz |
| Filter Passband (Channel 2) | 9.1 GHz – 9.5 GHz |
| Out-of-Band Suppression (Channel 1) | ≥65 dBc @ ≤7.2 GHz & ≥8.35 GHz |
| Out-of-Band Suppression (Channel 2) | ≥65 dBc @ ≤8.6 GHz & ≥10.0 GHz |
| Input VSWR | ≤-10 dBm |
| Output VSWR | ≤-10 dBm |
| Operating Current | ≤350 mA |
| Operating Temperature | -30°C ~ +70°C |
| Storage Temperature | -40°C ~ +75°C |
| Material | 6061 Aluminum |
| Surface Treatment | Nickel Plating |
nn
Advanced Features for Modern RF Systems

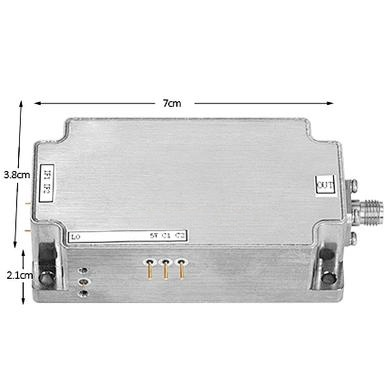

nnThe high suppression filter is designed with versatility in mind. Its configurable LO frequencies—8.63-8.78 GHz for channel 1 and 8.17-8.57 GHz for channel 2—allow for flexible spectrum planning, adapting to diverse operational requirements. A 5V TTL control interface (3.3V compatible) enables rapid channel switching via C1/C2 pins, with a response time of ≤10 μs. This agility is critical for frequency-hopping communication systems and ECM transmitter chains, where speed and accuracy define performance.nnMechanical design complements electrical excellence. The module is encased in nickel-plated 6061 aluminum, measuring 71.2 × 38.6 × 20.6 mm. This construction provides robust EMI shielding and efficient thermal management, ensuring stable operation across a temperature range of -30°C to +70°C. Φ0.38 mm glass bead terminals maintain signal integrity, while 4-hole flange SMA connectors support seamless 26 GHz connectivity. Compliance with MIL-STD-810G vibration standards further underscores its reliability in harsh environments.nn
Applications and Integration Benefits
nnReplacing discrete solutions, this high suppression filter consolidates multiple functions into a single, compact module. It is ideally suited for 5G backhaul, satellite terminals, and phased array radars, where size, weight, and power efficiency are critical. Typical applications include:n- Frequency-hopping communication systemsn- ECM transmitter chainsn- Millimeter-wave test equipmentn- Phased array radar front endsnnBy integrating dual upconversion channels with >65 dBc suppression, the MOPFC-7.7-9.5G-4342 reduces system complexity and enhances signal purity. Whether deployed in advanced radar arrays or high-data-rate satellite links, this module exemplifies the precision required for next-generation millimeter wave components.nn
Conclusion: Elevating RF Design with a High Suppression Filter
nnThe MOPFC-7.7-9.5G-4342 high suppression filter stands as a testament to advanced RF engineering, offering dual-band upconversion with unmatched suppression and gain. Its comprehensive feature set—from configurable LO frequencies to MIL-STD-810G compliance—makes it an indispensable component for modern communication and radar systems. By replacing bulkier, less efficient discrete solutions, it provides a clear path to smaller, more reliable, and higher-performing designs. For engineers seeking to optimize X/Ku band performance, this module delivers the control, clarity, and compactness necessary to stay ahead in a competitive landscape.
