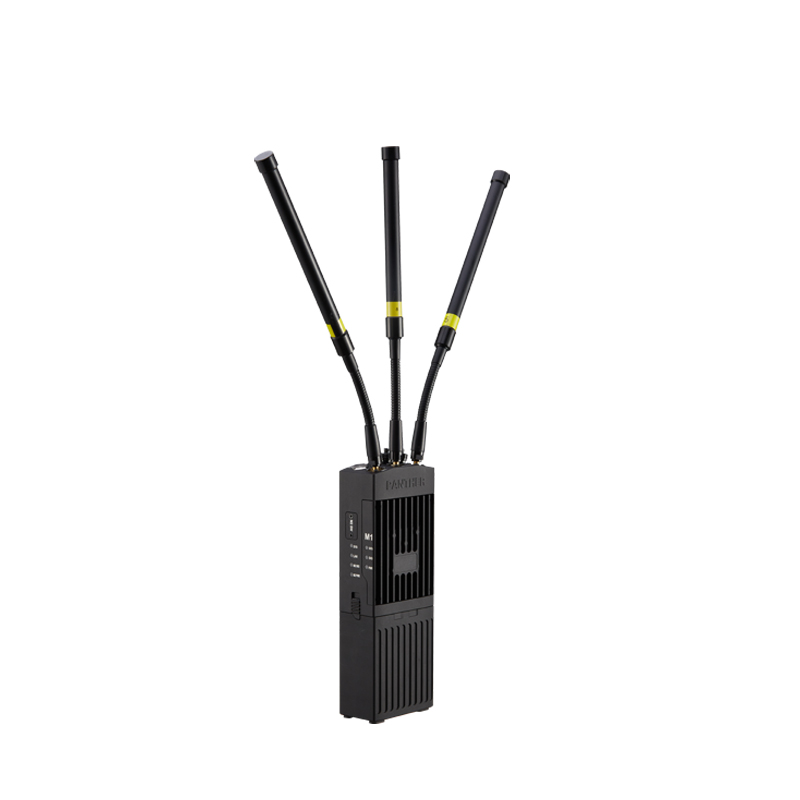

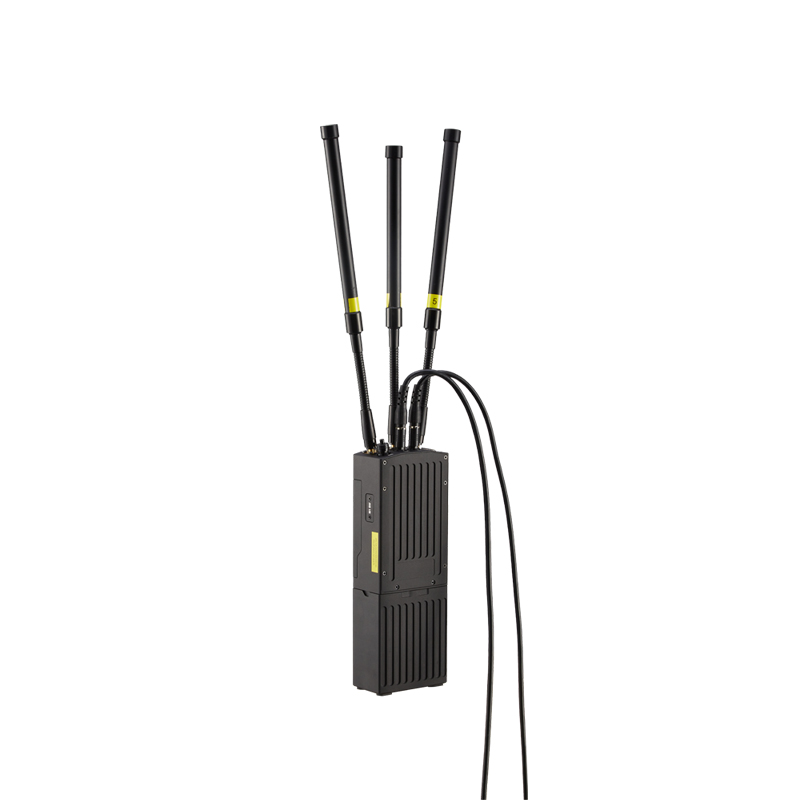

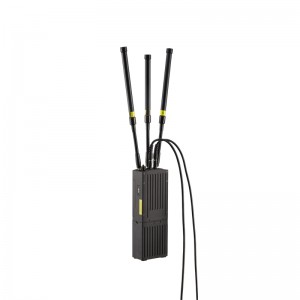

China Moneypro 5W Tactical Mesh Radios Handheld Video and PTT MIMO MANET Radio



Stay Connected. Stay Ahead.

Introducing the FD-7805HS — The Ultimate Tactical IP MESH Networking Device

Keep your team linked like never before. The FD-7805HS unites video, IP, data, and voice into one powerful, real-time network — so every critical data source is integrated, secure, and instantly accessible.

Engineered for any environment, this smart tactical device creates a highly scalable Mobile Ad Hoc Network (MANET), combining data, video, voice, and GPS into a single resilient system. Your team stays connected with advanced, real-time communication — anytime, anywhere.

Key Features:

  • High-Power Performance: 5W output power ensures reliable connectivity in demanding conditions.
  • All-in-One Design: Compatible with a wide range of cameras and audio devices, reducing the gear you need to carry.

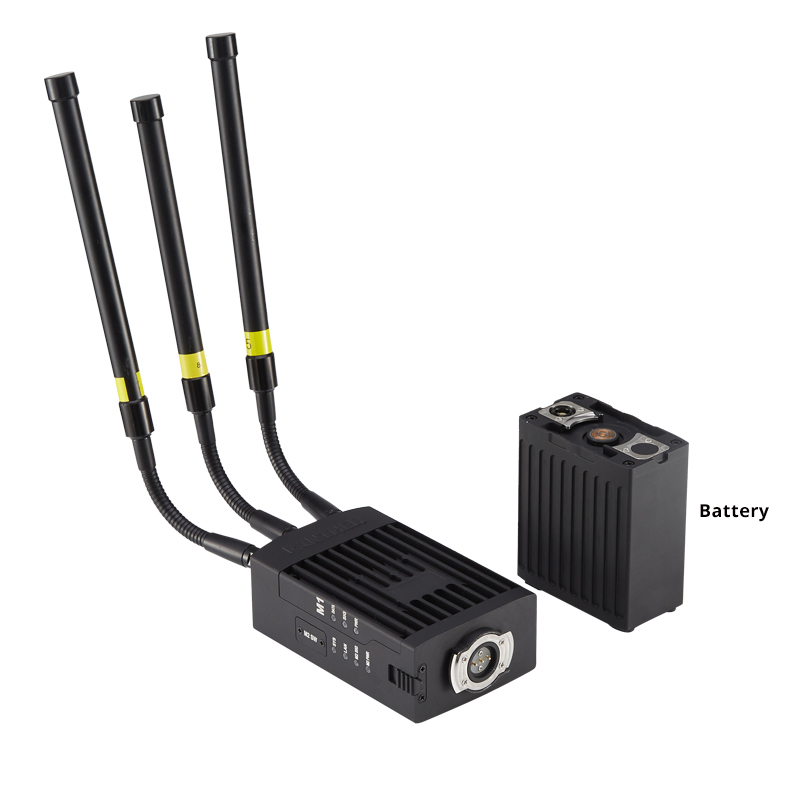

  • Long-Lasting Flexibility: Features rechargeable, removable batteries for extended operations.
  • Superior Speed & Capacity: 2×2 MIMO wireless links deliver 100Mbps throughput and support up to 64 nodes simultaneously.

With the FD-7805HS, your team maintains seamless connectivity and shares vital information in real time — mission after mission.

Equip Your Team. Elevate Your Communications.

Let me know if you’d like a shorter version or one tailored for a specific platform (web, brochure, social media, etc.).



Category:
Description




Key Features

Field-Switchable Frequency Bands: 600MHz or 1.4GHz
Built on IWAVE’s innovative Switchable Frequency Architecture, the FD-7805HS is a Software-Defined Radio (SDR) that lets you select the optimal band for your mission—switching seamlessly between L-band and UHF right in the field.

  • Band Options:
    • 1.4GHz Band: 1420–1530MHz
    • UHF Band: 566–678MHz

Why It Matters:

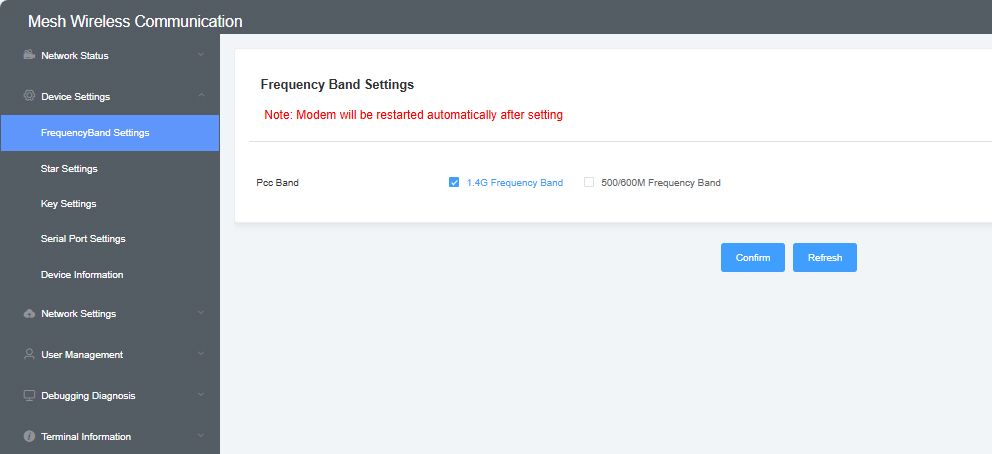

Change bands on the fly using simple software controls—no need to swap hardware, open the device, or replace internal modules. This means faster setup, uninterrupted operations, and more time focused on your mission.

Advanced Capabilities:
With software-defined audio, multiple hardware connection types, and a built-in GPS receiver, the FD-7805HS stands out as a top-tier tactical MIMO radio. Designed for reliability in high-stakes environments, it’s the trusted choice for military, law enforcement, and emergency rescue teams.

Mesh radio node

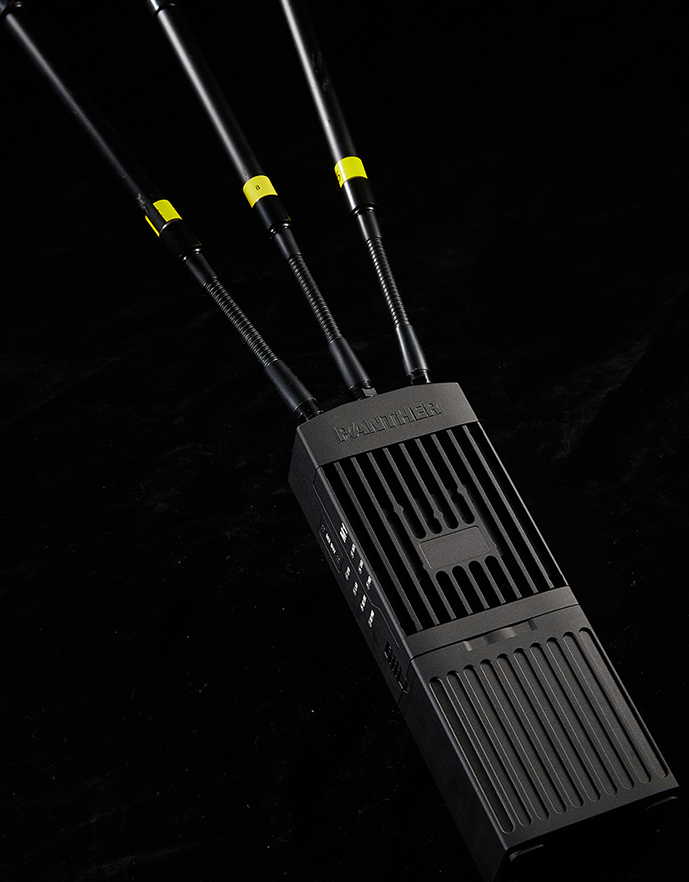

MANET Smart Radio



Frequency Hopping Spread Spectrum (FHSS)
IWAVE’s proprietary algorithms enable the FD-7805HS to continuously monitor link quality—using metrics like RSRP, SNR, and SER—and automatically hop to the best available frequency when needed.
Frequency hopping is dynamic and responsive:

  • Occurs only when wireless conditions require it
  • Maintains the current frequency if the link remains stable

HD Video Streaming
Dual on-board HD encoders support real-time H.265 video streaming at up to 1080p resolution. Flexible camera connectivity is provided through HDMI or 3G-SDI interfaces, with optional modules available for expanded compatibility.

Clear, Dynamic PTT Audio
Mission-critical voice communication stays reliable with high-quality Push-to-Talk audio. Built for tactical environments, the FD-7805HS maintains clear voice connectivity—even around obstacles and in challenging conditions.

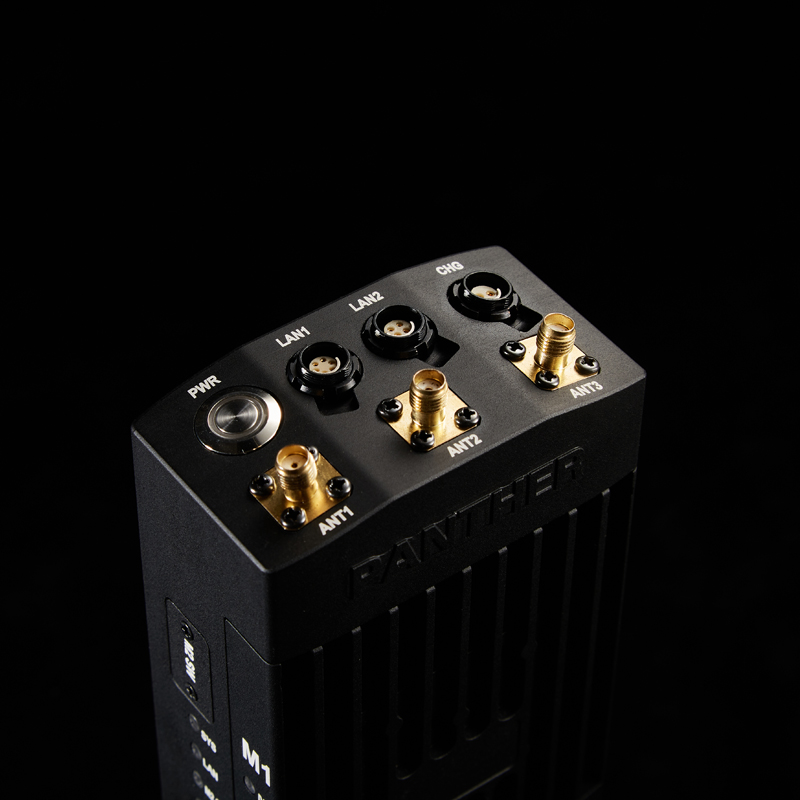

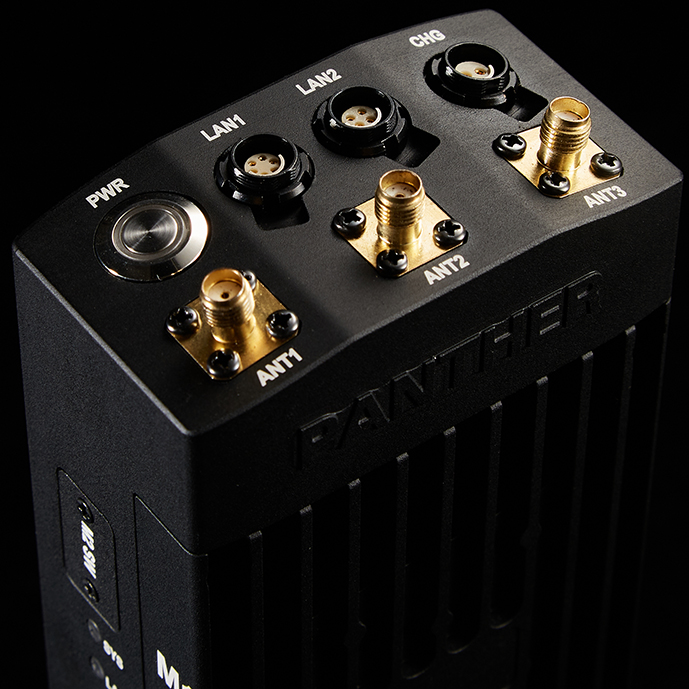

Versatile Connectivity
A range of ports supports seamless integration with cameras, audio devices, and other essential equipment.

PWR Power On/Off
LAN1 Aviation Connector with Composite Ethernet Interface
•10/100Mbps self-adaptive
•Integrated 12V DC power output (supports helmet cameras/PTT modules)
LAN2 Standard Aviation Ethernet Interface
•10/100Mbps auto-negotiating
•Uses matching aviation-grade Ethernet cables for external device connectivity
CHG Aviation-Grade Charging Port
•12V DC power input
•Powered/charged via dedicated aviation connector cable
ANT1 Host Device RF Interface
•SMA connector (female/male)
•Connects to peer devices via included mesh antenna
ANT2 Host Device RF Interface
•SMA connector (female/male)
•Connects to peer devices via included mesh antenna
ANT3 Detachable RF Interface with SMA Connector
•Standard mesh antenna included for peer-to-peer device connection
•Quick-disconnect SMA interface (male/female) for flexible deployment
wireless MIMO

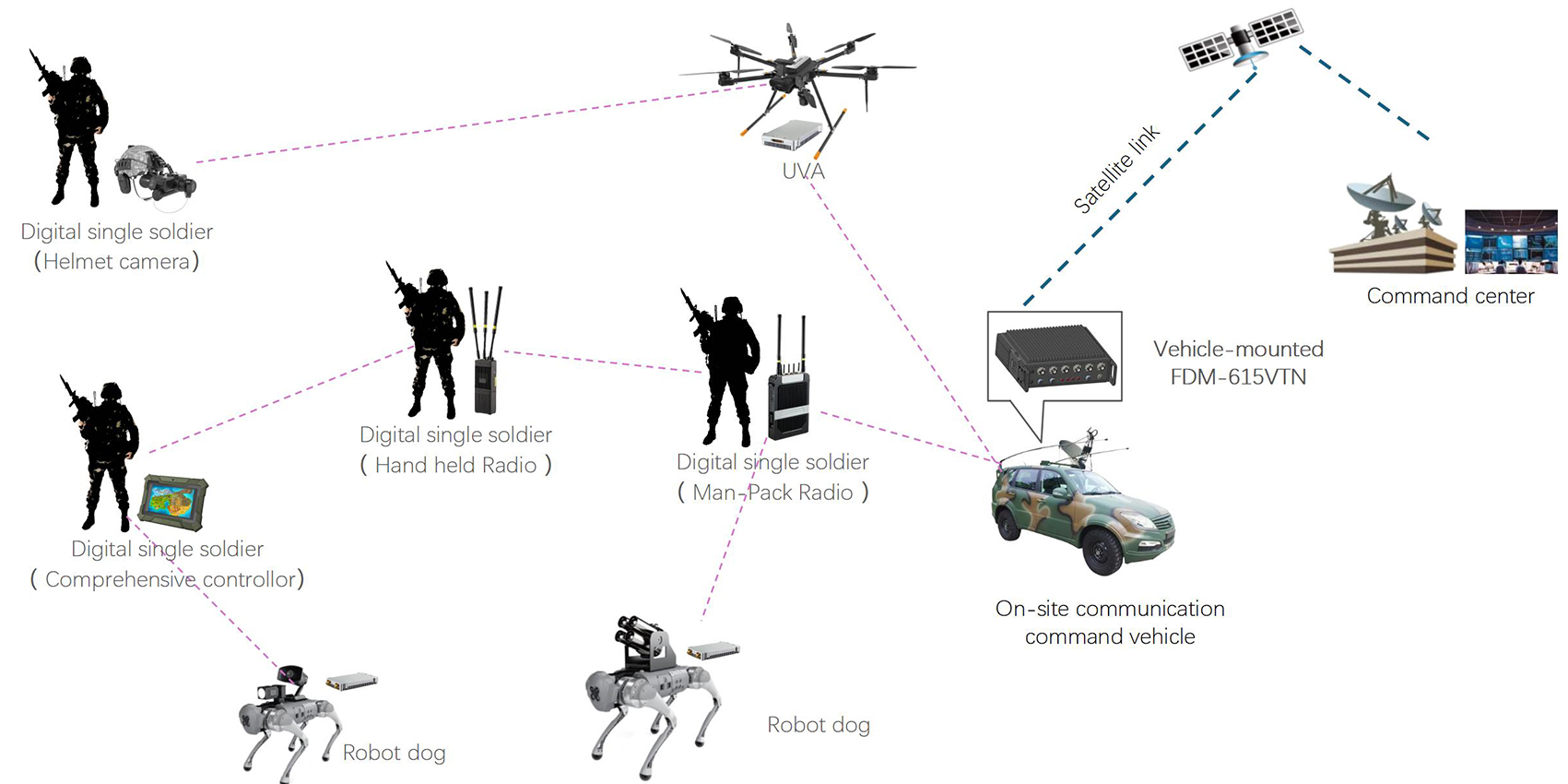

Application The FD-7805HS is a smart, mobile ad-hoc networking (MANET) radio built for teams that need to stay connected in dynamic environments. With 2×2 MIMO technology, it supports networks of up to 64 nodes while integrating GPS, native video encoding/decoding, and push-to-talk audio. This allows your team to maintain a real-time, unified operational picture—anytime, anywhere. Cross-Platform Connectivity Built around IWAVE’s proven MS‑LINK technology—featuring a proprietary time-slot frame structure and advanced waveforms—the FD-7805HS is housed in a rugged, portable enclosure. It enables ground personnel to automatically form resilient mesh networks with manned and unmanned vehicles, UAVs, maritime assets, and fixed infrastructure, delivering robust connectivity across the modern battlefield.

military tactical radios


Specifications

General  Mechanical
Technology MESH Temperature -20º to +55ºC
Encryption ZUC/SNOW3G/AES(128) OptionalLayer-2 Encryption IP Rating IP65
Modulation QPSK/16QAM/64QAM Battery 5000mAh/55.5Wh(Removable)
Data Rate 100Mbps Dimension 20.8*7.6*4.3cm
Sensitivity 10MHz/-103dBm Weight
Range 500m-10km(depends on the actual environment) Material Black Anodized Aluminum
Bandwidth 3MHz/5MHz/10MHz/20MHz/40MHz
Node 64nodes Mounting Handheld Pattern
MIMO 2X2 MIMO Power
RF Power 2*2w/2*5w Voltage DC12V
Latency One Hop Transmission≤30ms Power Consumtpion 30watts
Diagnostics Spectrum Scanning, Statistics Logging, Temperature/Voltage Monitoring Battery Life 4Hours
Anti-Jamming Frequency hopping Interfaces
Frequency Band  RF 3 x SMA
 1.4G 1420-1530MHz Ethernet 2xEthernet
 600Mhz 566Mhz-626Mhz Power DC INPUT
