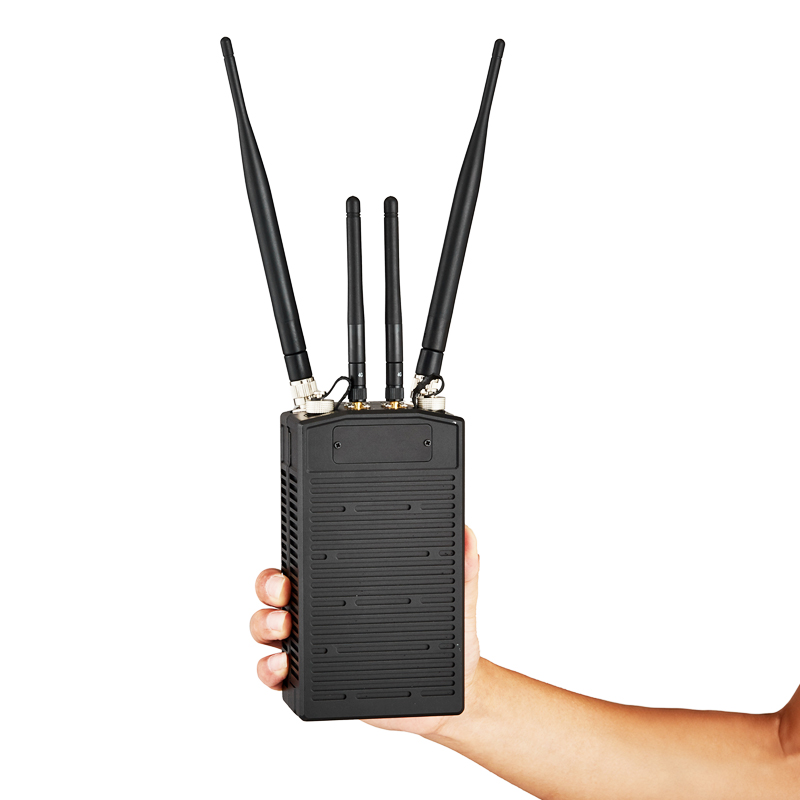

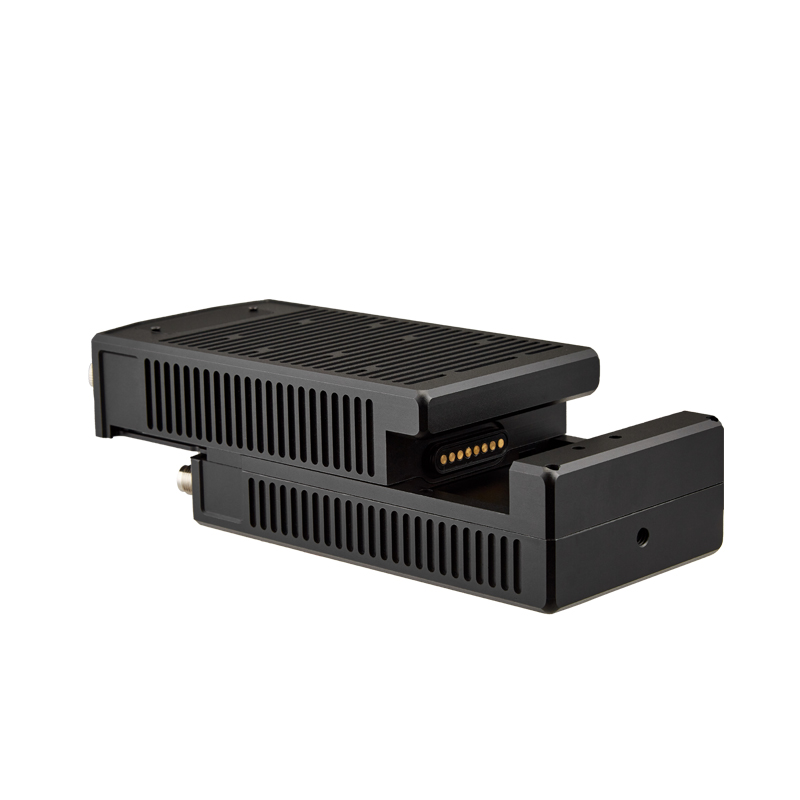

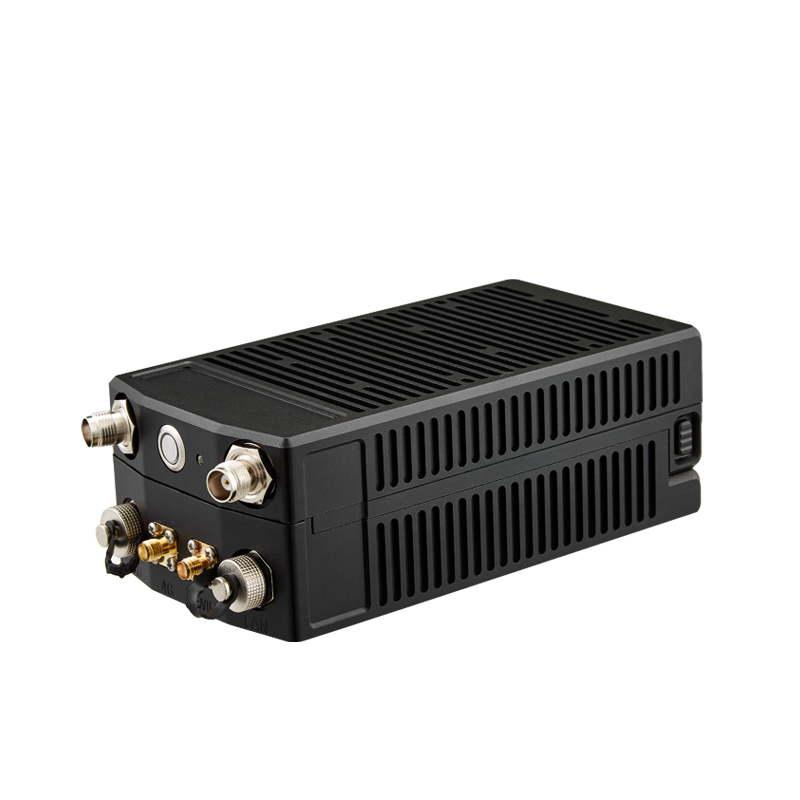

China Moneypro Tactical Handheld IP Mesh Smart Radio for Video Transmitting In NLOS

Introducing the FD-6700WG: Your Portable, All-in-One Tactical Mesh Radio

The FD-6700WG is a tactical handheld MIMO MESH radio designed for personnel on the move—combining portability, simplicity, and robust connectivity in one rugged device.

Key Features:

  • Wearable & User-Friendly: Lightweight and ergonomically designed to be worn comfortably, keeping you connected to the mesh network without hindering mobility.
  • Built-in 4G & Wi-Fi Hotspot: Stay connected in the field with integrated 4G capability. The onboard Wi-Fi hotspot allows any internet-enabled device to join the secure mesh network instantly.
  • Secure & Scalable Networking: Create powerful, mobile ad hoc networks (MANET) anywhere. Unify critical data sources in real time with advanced, scalable technology built for demanding environments.
  • Total Interoperability: Seamlessly communicate with other IWAVE IP MESH products—from high-power vehicle systems to long-range drone nodes—even in challenging beyond-line-of-sight (BLOS) terrain such as mountains and dense jungle.

Built for the Field. Designed for Connectivity.

Whether in remote, rugged landscapes or dynamic operational environments, the FD-6700WG ensures reliable, real-time communication when it matters most.

Category:
Description




Key Features Tri-Band Frequency Switch between 800MHz, 1.4GHz, and 2.4GHz via software to match your specific application needs. Exceptional Long-Range Performance Achieve point-to-point distances up to 17KM in a single hop. Expand your reach even further with chain networking, covering distances up to 150KM. Removable & Rechargeable High-Capacity Battery Stay powered longer with a 5400mAh/55.5Wh battery that supports up to 10 hours of continuous operation. Adaptive Power Control Automatically adjusts transmission and reception power based on channel conditions to reduce power consumption and minimize network interference. Advanced Anti-Interference Technology Built-in automatic frequency hopping significantly cuts interference while lowering system power use and module size. Flexible Network Topology Easily switch between linear, star, and mesh topologies—or run multiple topologies simultaneously for adaptable network design. Seamless System Integration The FD-6700WG works smoothly with other IWAVE IP MESH devices, including high-power vehicle, airborne, and UGV-mounted radios, enabling expansive and reliable communication networks.

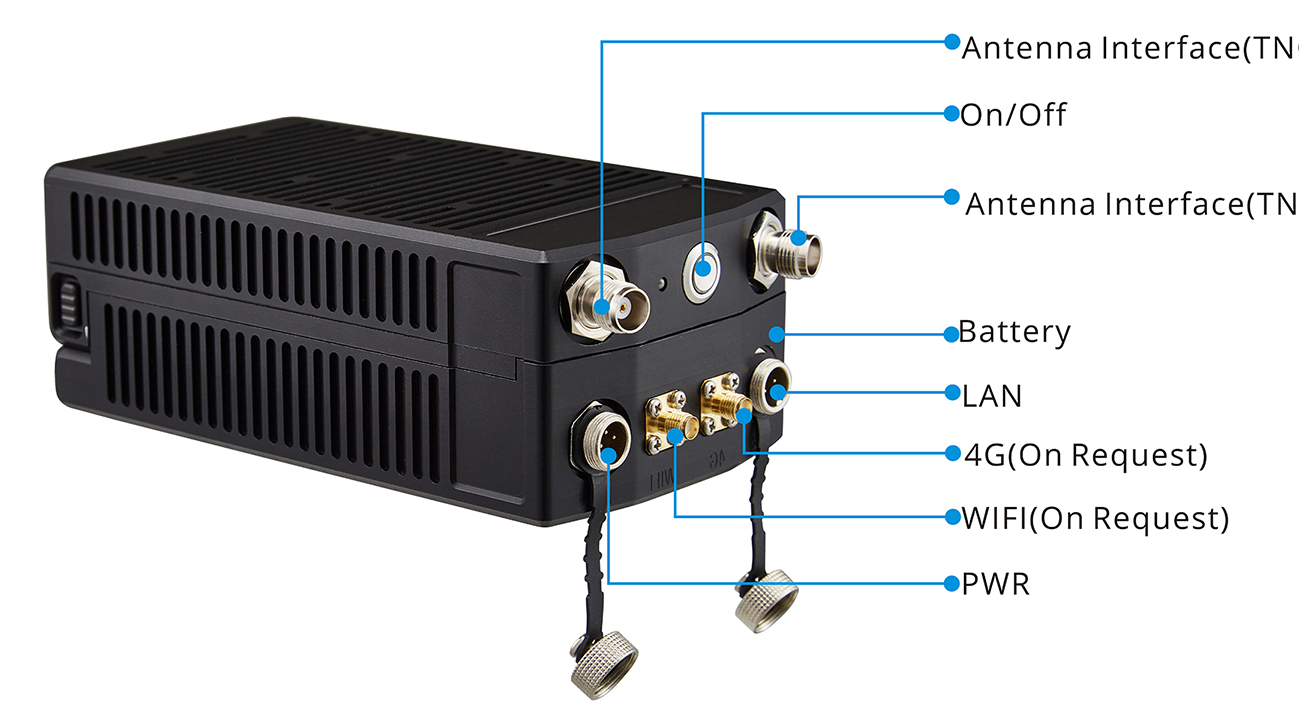

Handheld MANET Mesh Transceiver

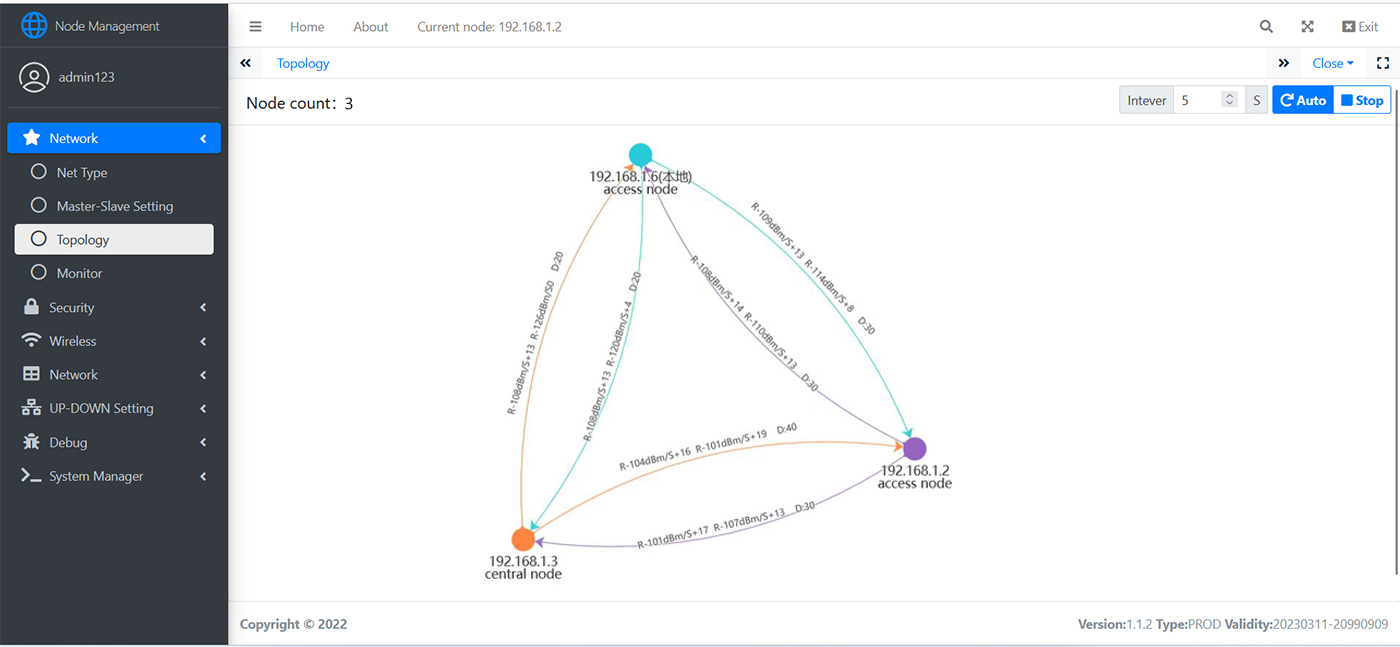

MESH Network Management Software

IWAVE self-developed MESH network management software is a Windows-based software suite. It allows manual and automated configuration, management and integration of IWAE IP MESH transmission equipment. With it you can real time get the topology, RSRP, SNR, distance, IP address and other information of all the nodes. The software is WebUi based and you can login it anytime anywhere with IE browser. From the software, you can configure the settings per your requirement, such as working frequency, bandwidth, IP address, dynamic topology, real time distance between nodes, algorithm setting, up-down sub-frame ratio, AT commands, etc.

MESH-Management-Software2




Enhanced Version:

The FD-6700WG delivers secure, high-reliability connectivity for mission-critical applications—from real-time mobile surveillance and NLOS (non-line-of-sight) communications to drone and robotics command and control.

Designed for versatility, it supports manpack and vehicle-mounted configurations and can scale to connect up to 32 nodes in cluster mode, creating a resilient, all-weather communication network ready for any environment.

Why this works better:

  • Clearer structure: Combines related ideas and removes repetitive phrasing.
  • Stronger opening: Starts with the core benefit—secure, reliable connectivity.
  • Active voice: Uses more direct and engaging language.
  • Flow: Sentences connect logically, improving readability.
  • Professional yet dynamic tone: Maintains technical accuracy while sounding confident and forward-looking.

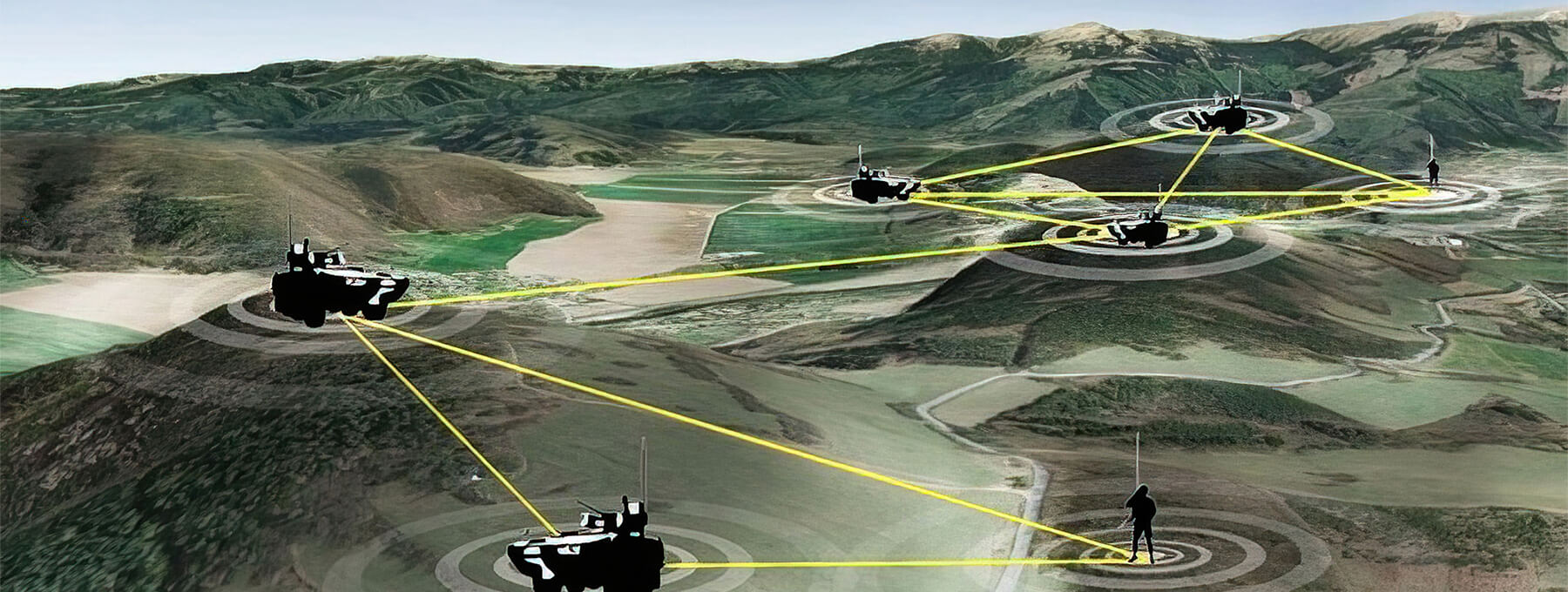

TACTICAL MIMO RADIOS


Specification

GENERAL MECHANICAL
WIRELESS MESH(Based on TD-LTE terminal access technology) TEMPERATURE -25º to +75ºC
NETWORKING MESH IPRATING IP65
MODULATION QPSK/16QAM/64QAM DIMENSIONS 175*90*60mm
ENCRYPTION ZUC/SNOW3G/AES(128/256) OptionalLayer-2 WEIGHT 1.3kg
DATA RATE 30Mbps MATERIAL Black Anodized Aluminum
SENSITIVITY -103dBm/10MHz MOUNTING Handheld Pattern
BANDWIDTH 1.4MHz/3MHz/5MHz/10MHz/20MHz(adjustable) FREQUENCY (Software Selectable)
RANGE 1km-3km(LOS)/500meters~1km(NLOS) 1.4Ghz 1427.9-1467.9MHz
NODE 32 800Mhz 806-826 MHz
MIMO Spatial Multiplexing, Space-Time Coding, TX/RX Eigen Beamforming 2.4Ghz 2401.5-2481.5 MHz
POWER 25dBm±2 POWER
AIR INTERFACE DELAY ≤200ms VOLTAGE DC12V
AIR INTERFACE DELAY ≤200ms VOLTAGE DC12V
WLAN WLAN 802.11 b/g/n/a BATTERY LIFE 10Hours(External Battery)
ANTIINTERFERENCE Frequency hopping within working frequency band INTERFACES
NETWORKING TIME RF 2 x TNC2 x  SMS(4G+WIFI Ant)
START TIME ETHERNET 1xEthernet
4G 4G full Netcom POWER DC INPUT
Networking Time
SENSITIVITY
1.4GHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
800MHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
2.4Ghz 20MHZ -99dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
