China Moneypro MIMO Broadband IP MESH Link With Outdoor Design For NLOS Video Transmitting

China Moneypro MIMO Mesh Module For Unmanned System UAV UGV Sending Video Data

Introducing the FD-7800: The Lightweight, High-Performance Mesh Radio for Demanding Applications

The FD-7800 is a software-defined 2×2 MIMO OEM mesh module designed for seamless IP, video, and full-duplex control data transmission across manned and unmanned systems.

Built for integration, this ultra-compact (72×60×10mm) and ultra-lightweight (33g) radio delivers exceptional performance where size and power matter most. Consuming just 3W of input power, it outputs 200mW—ideal for weight-sensitive UxV platforms.

Key Features & Performance:

  • High-Efficiency Mesh Networking: Leverages IWAVE’s proprietary waveform and dynamic routing algorithm to support up to 64 nodes with robust, low-latency connectivity.
  • Proven Scalability: Successfully tested in an 8-node mesh configuration, achieving high data throughput, strong anti-interference, and reliable NLOS communication.
  • Long-Range Capability: Enables point-to-point communication over 1–3 km in non-line-of-sight (NLOS) conditions.
  • High-Speed Data Transfer: Supports data rates up to 100 Mbps, ensuring smooth transmission of video and real-time control data.

Engineered for reliability and ease of platform integration, the FD-7800 combines compact form, low power consumption, and powerful mesh networking—making it the smart choice for advanced mobile communication systems.

Category:
Description


Features

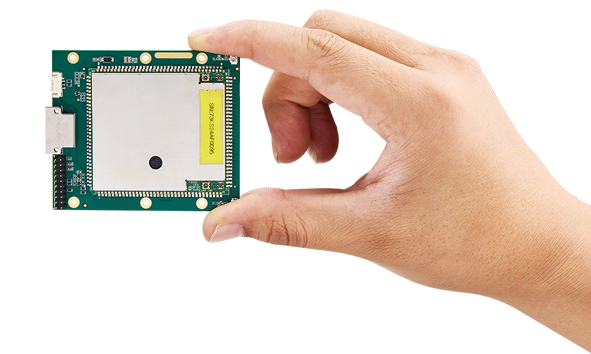

SDR



Here’s a revised version that improves clarity, flow, and engagement while keeping the technical details accurate:

Introducing the World’s Smallest MIMO Dual-Band Mesh Radio

Software-Defined Radio (SDR) – A compact, powerful mesh radio offering unparalleled flexibility and performance.

Key Features:

  • Max 40MHz Bandwidth – Uses LTE-A Carrier Aggregation (CA) technology to combine dual carriers, achieving up to 40MHz total bandwidth (2×20MHz).
  • Strong Anti-Jamming Capability – Operates across two bands: 600MHz (566–678MHz) and 1.4GHz (1420–1530MHz), with 222MHz of total frequency options to avoid interference.
  • Frequency Hopping Spread Spectrum (FHSS) – Dynamically selects the optimal frequency based on real-time metrics like RSRP, SNR, and SER.
  • High-Speed Throughput – Supports up to 100Mbps uplink/downlink, shared across 8 nodes.
  • Exceptional NLOS Performance – Maintains reliable ground-to-ground communication over 1–3km, even without a direct line of sight.
  • Long-Range Connectivity – Achieves up to 10km air-to-ground communication range under line-of-sight (LOS) conditions.

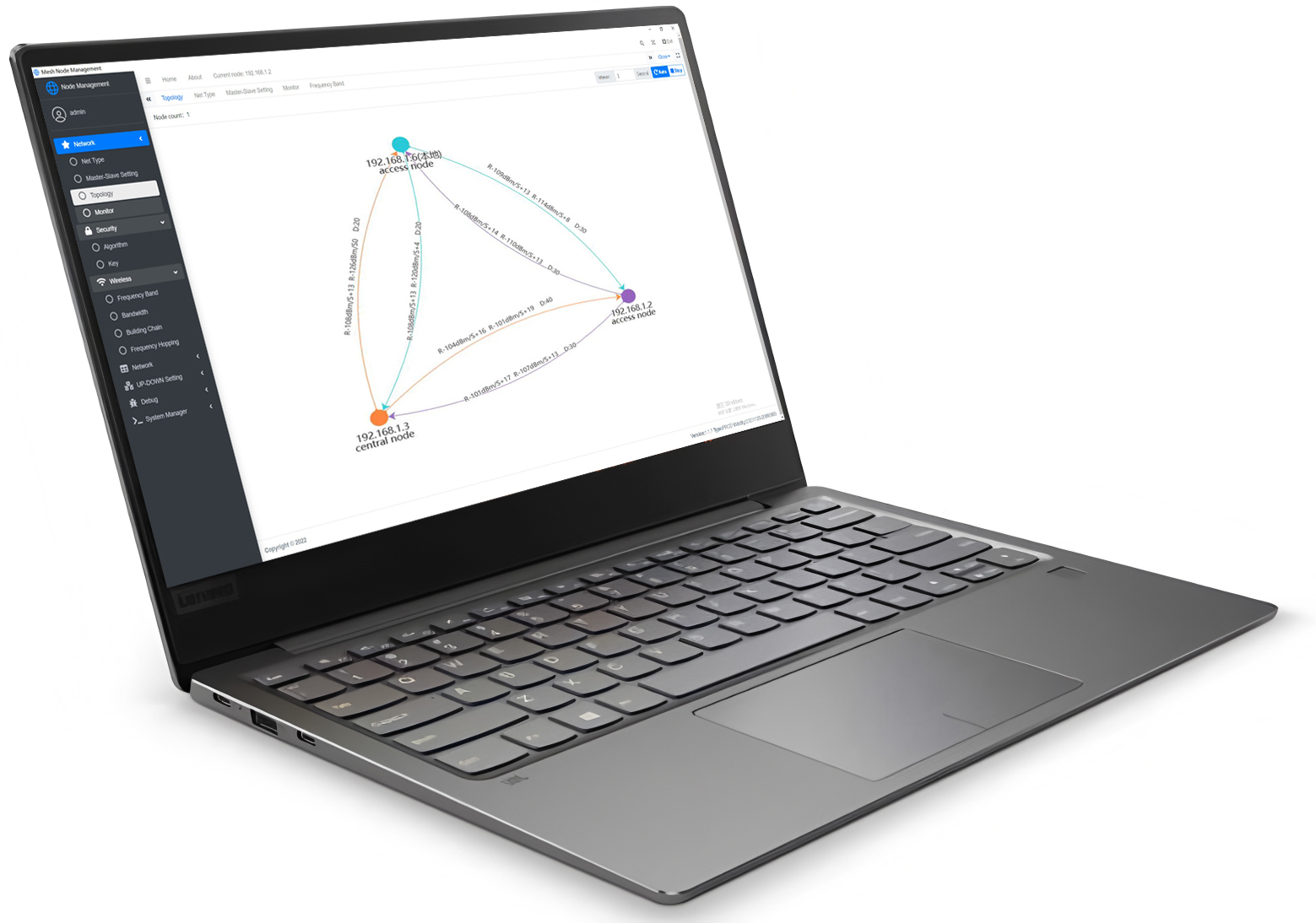

Easy & Intuitive Management

Take full control of your network with our user-friendly management software:

  • Real-Time Network Monitoring – View live topology, SNR, RSSI, and inter-node distances at a glance.
  • Full Configuration Control – Adjust frequency bands, toggle FHSS on/off, and modify IP addresses for each node.
  • Seamless Integration – We provide comprehensive API documentation and technical support for third-party unmanned platform integration.
  • Advanced Command Set – Use the IWAVE AT command set to configure encryption keys, frequency, bandwidth, check SNR, firmware version, baud rate, and more.

Let me know if you’d like this tailored for a datasheet, website, or presentation!



Network-management


Various Ports

transceivers

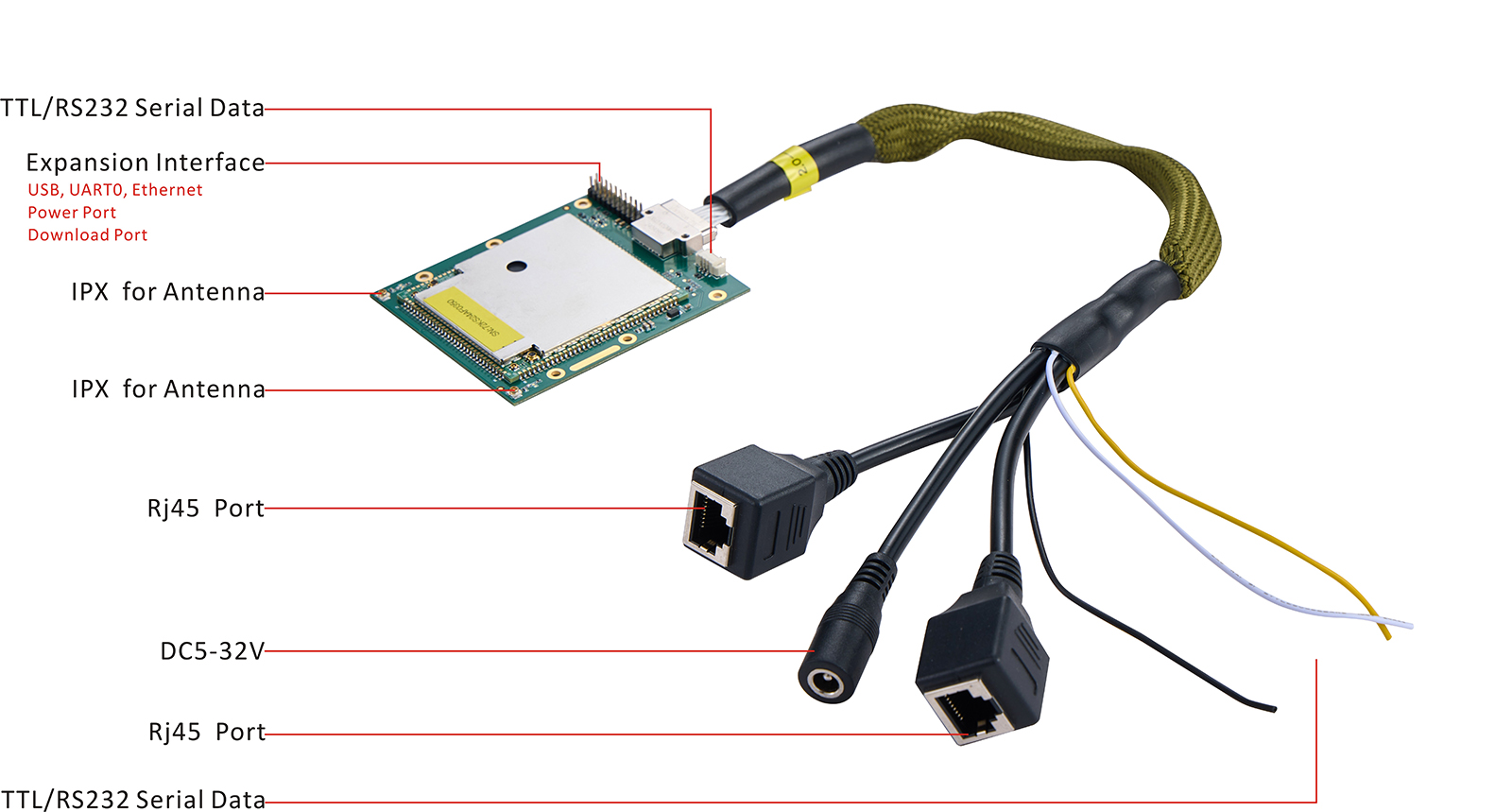

Versatile Connectivity

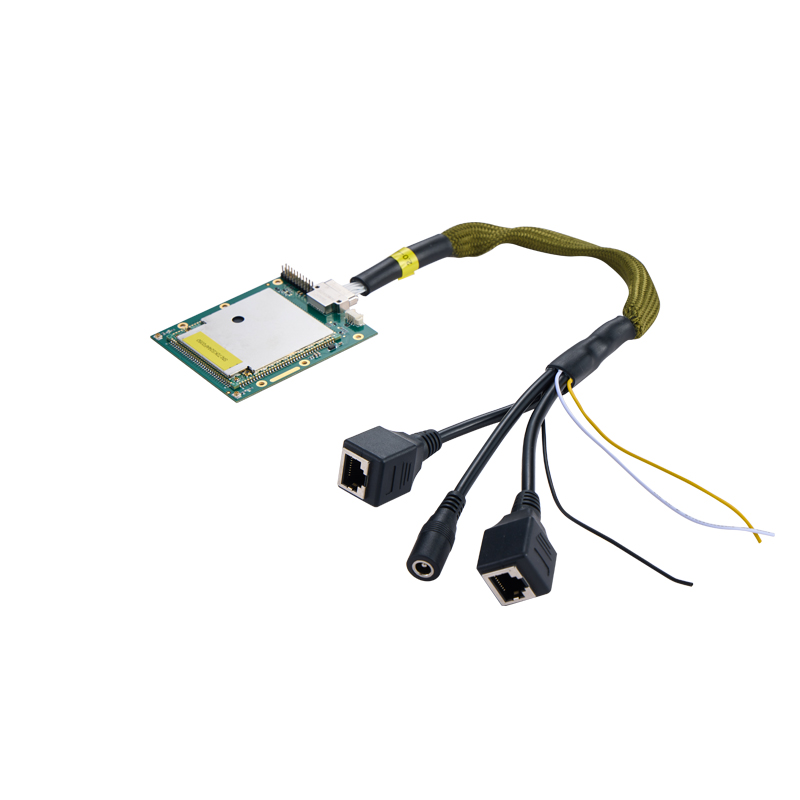

The FD-7800 is built with multiple interface options to support seamless integration with a wide range of devices and systems.

  • RJ45 Ports – Connect IP cameras, sensors, or onboard microcomputers running Linux, Windows, Android, and more.
  • Serial Port – Interface with PTZ systems, flight controllers (such as Pixhawk), and other serial-based hardware.
  • USB Port – Use for debugging, sending AT commands, or configuring as a network or AT command port.

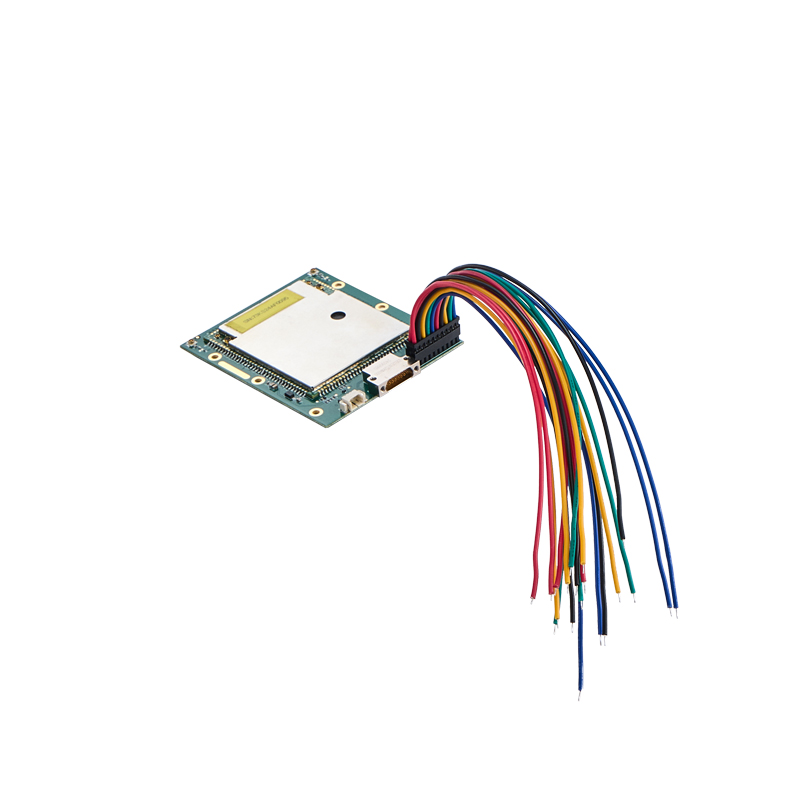

  • Expansion Port – A flexible 20-pin port for custom interfaces, microcontroller applications, programming, power input, and more.

Compact & Rugged Design

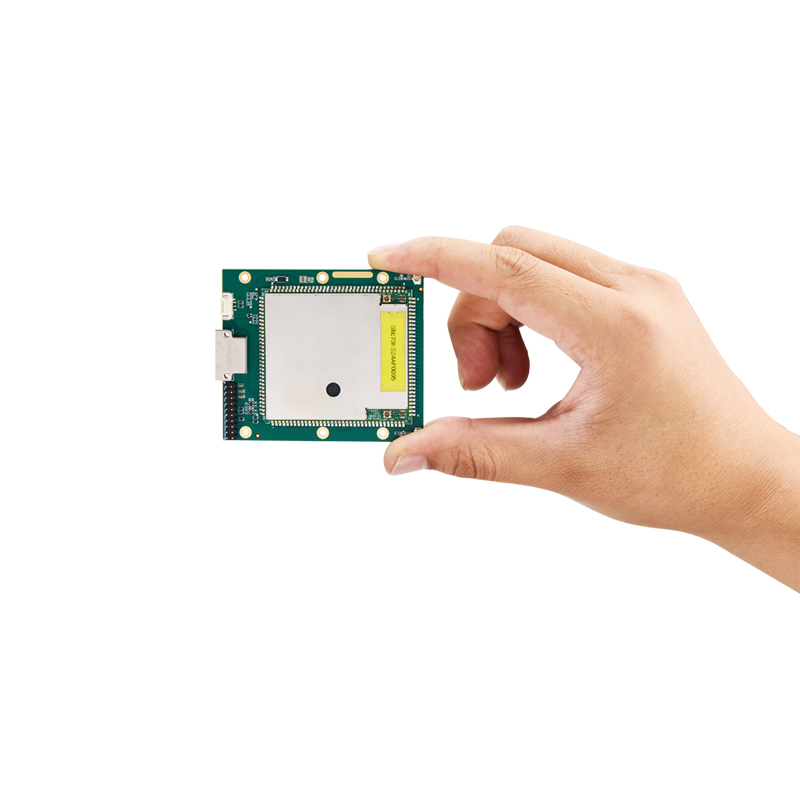

Measuring just 72×60×10 mm and weighing only 33g, the FD-7800 is engineered for durability in demanding conditions. Its small, lightweight form factor makes it an ideal fit for mobile, airborne, and maritime applications—including mini UAVs, compact robots, and other space-constrained unmanned systems.

Efficient Power Performance

With a wide input voltage range of 5–32V and a low power consumption of just 5W, the FD-7800 maximizes battery life, making it perfect for power-sensitive applications in unmanned vehicles and remote deployments.



data-link


Specifications

GENERAL

WIRELESS
TECHNOLOGY MESH based on IWAVE proprietary time slot frame structure & waveform. COMMUNICATION 1T1R1T2R2T2R
ENCRYPTION ZUC/SNOW3G/AES(128) Optional Layer-2 DATA LINK Full duplex communication
DATE RATE Max 120Mbps(Uplink and Downlink) UP AND DOWN RATIO 2D3U/3D2U/4D1U/1D4U
RANGE 200mw RF Power: 10km(Air to ground) AUTOMATIC RECONSTRUCTION CHAIN Automatic link re-establishment after link failure/ re-deploy the network after a link failure
CAPACITY 8nodes SENSITIVITY
MIMO 2×2 MIMO 1.4GHZ 20MHZ
POWER 23dBm±2 (2w, 5w or 10w on request) 10MHZ
LATENCY End to end≤5ms-15ms 5MHZ
MODULATION QPSK, 16QAM, 64QAM 600MHZ 20MHZ
ANTI-JAM FHSS(Frequency Hop Spread Spectrum) 10MHZ
BANDWIDTH 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz 5MHZ
POWER CONSUMPTION 5Watts

FREQUENCY BAND
POWER INPUT DC5-32V 1.4Ghz 1420Mhz-1530MHz
DIMENSION 72*60*10mm 600Mhz 566Mhz-678Mhz
