China Moneypro Handheld IP MESH Radio for Tactical HDMI Video Transmitting In NLOS

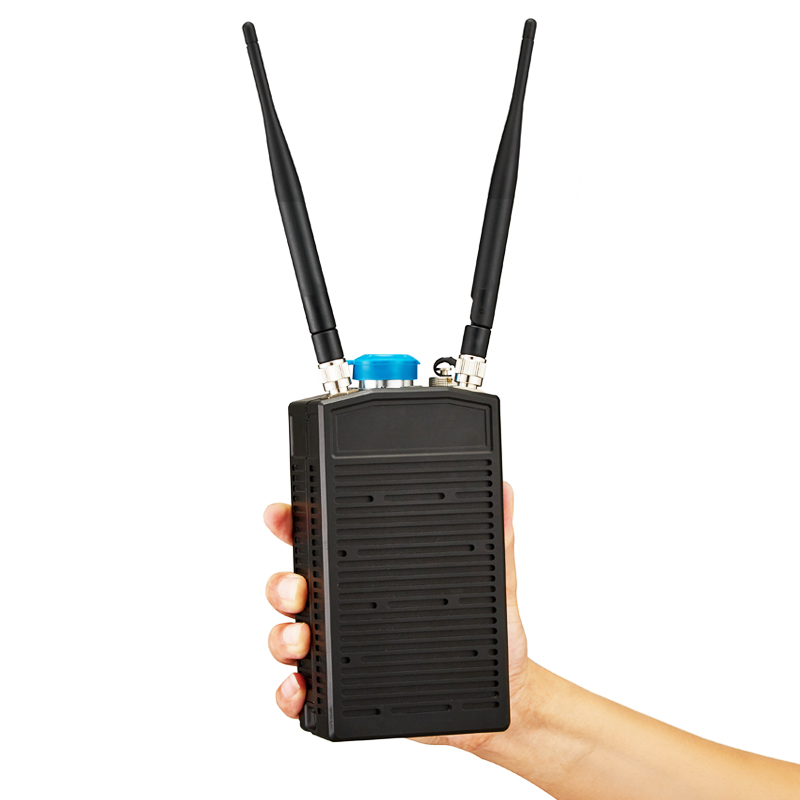

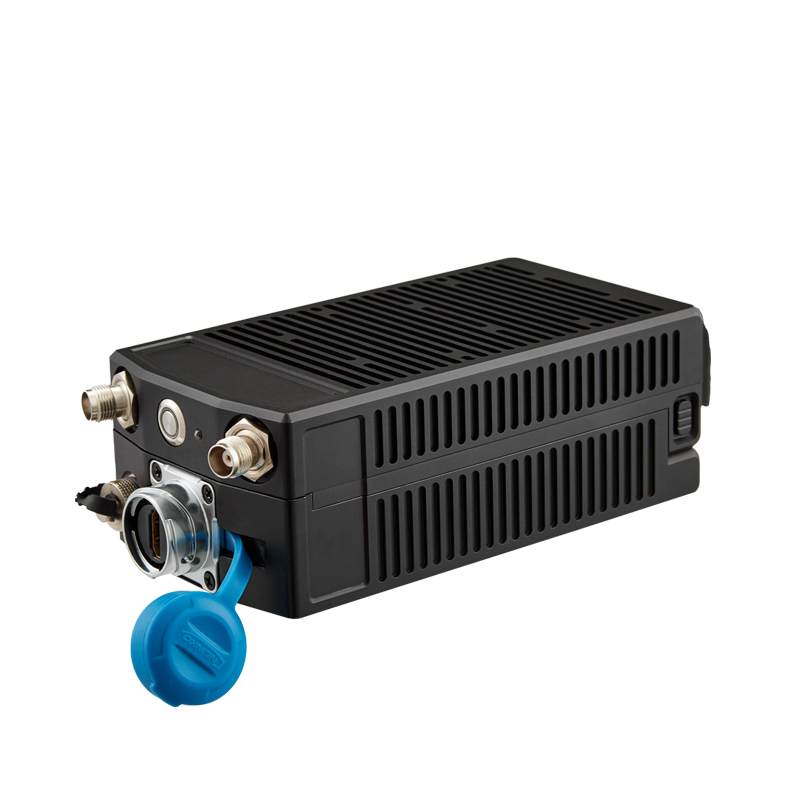

Introducing the FD-6700M Mobile Mesh Smart Radio

For teams on the move, operating in challenging RF environments and non-line-of-sight (NLOS) conditions demands wireless equipment that is both flexible and resilient. The FD-6700M delivers exactly that—a seamless, highly secure private network, even while in motion or in NLOS settings.

Powered by a robust 5000mAh battery and compatible with Android smartphones, it enables real-time transmission of video, voice, and data. Whether for tactical communications, field operations, or dynamic mesh deployments, the FD-6700M is built to perform.

Key Features Include:

  • HDMI helmet camera support
  • Integrated GPS
  • RS232 interface for expanded connectivity

Using advanced 2×2 MIMO technology, the FD-6700M achieves an impressive NLOS range of 1–3 km with throughput up to 30 Mbps. Already trusted in the field as a handheld tactical radio, it’s the reliable choice for teams that can’t afford to lose connection.

Ideal for tactical mesh networks—anywhere, anytime.

Category:
Description




Features Powerful NLOS Performance Navigate dense jungles, underground tunnels, and rugged mountains with confidence. The FD-6700M uses advanced 2×2 MIMO technology to deliver faster, longer-range data transmission—keeping your team connected and informed, even in challenging environments. Real-Time HD Video Equipped with a built-in HD video encoder for HDMI camera input, the FD-6700M streams live video to enhance situational awareness and support rapid, informed decision-making. Enhanced Situational Awareness Share live positions and full-motion HD video across your team. Commanders gain a complete operational picture, enabling quicker, smarter decisions in dynamic situations. Tri-Band Frequency Flexibility Adapt on the fly with software-selectable frequency bands (800MHz, 1.4GHz, or 2.4GHz). Optimize performance based on real-time RF conditions and signal quality. Extended Mission Readiness Powered by a removable and rechargeable 5000mAh battery, the FD-6700M supports up to 10 hours of continuous operation—engineered for missions that demand endurance.

digital handheld radio



Here’s a revised version with improved clarity, flow, and engagement:

Performance

  • Low Latency: In loaded network conditions, average latency between endpoints remains under 30ms.

Seamless Integration

  • The FD-6700M is fully compatible with other IWAVE IP MESH devices—including high-power vehicle, airborne, and UGV-mounted systems—enabling the creation of expansive, unified communication networks.

Versatile Applications

  • Built with advanced algorithms, the FD-6700M delivers secure and highly reliable connectivity for demanding use cases such as:
    • Real-time mobile video surveillance
    • Non-line-of-sight (NLOS) communications
    • Drone and robotics command and control

Let me know if you’d like this adapted for a brochure, website, or technical datasheet.

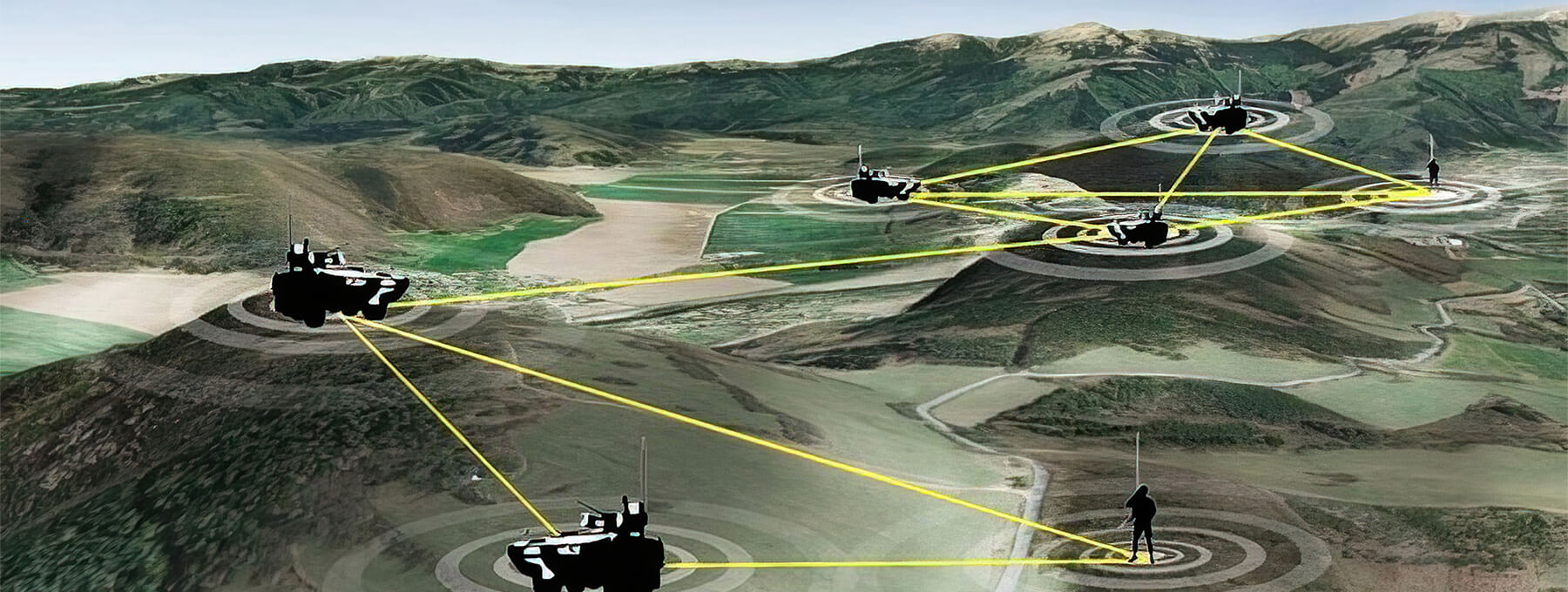

TACTICAL MIMO RADIOS


Specification

GENERAL
TECHNOLOGY MESH base on TD-LTE Wireless technology standard
ENCRYPTION ZUC/SNOW3G/AES(128/256) OptionalLayer-2
DATA RATE 30Mbps(Uplink and Downlink)
RANGE 500m-3km(nlos ground to ground)
CAPACITY 32nodes
MIMO 2×2 MIMO
POWER 200mw
LATENCY One Hop Transmission≤30ms
MODULATION QPSK, 16QAM, 64QAM
ANTI-JAM Automatically Cross-Band frequency hopping
BANDWIDTH 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz
POWER CONSUMPTION 5Watts

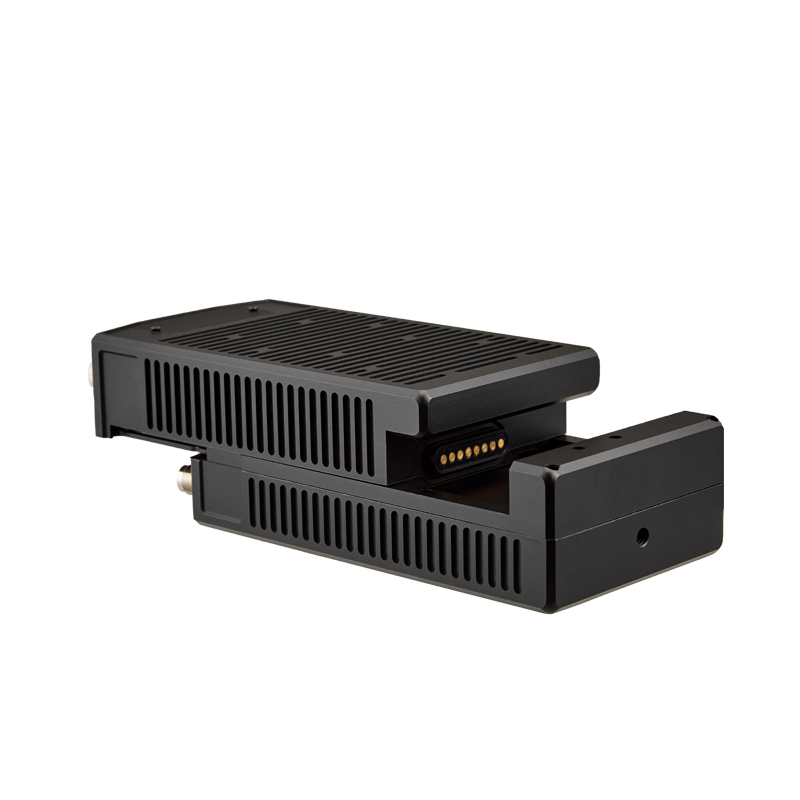

BATTERY LIFE 10Hours(Buckled Battery)
POWER INPUT DC9V-12V
SENSITIVITY
2.4GHZ 20MHZ -99dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
1.4GHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
800MHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
FREQUENCY BAND
2.4Ghz 2401.5-2481.5 MHz
1.4Ghz 1427.9-1467.9MHz
800Mhz 806-826 MHz
MECHANICAL
Temperature -25º to +75ºC
Weight 1.3kg
Dimension 18*9*6cm
MATERIAL Anodized Aluminum
MOUNTING Handheld Type
Stability MTBF≥10000hr

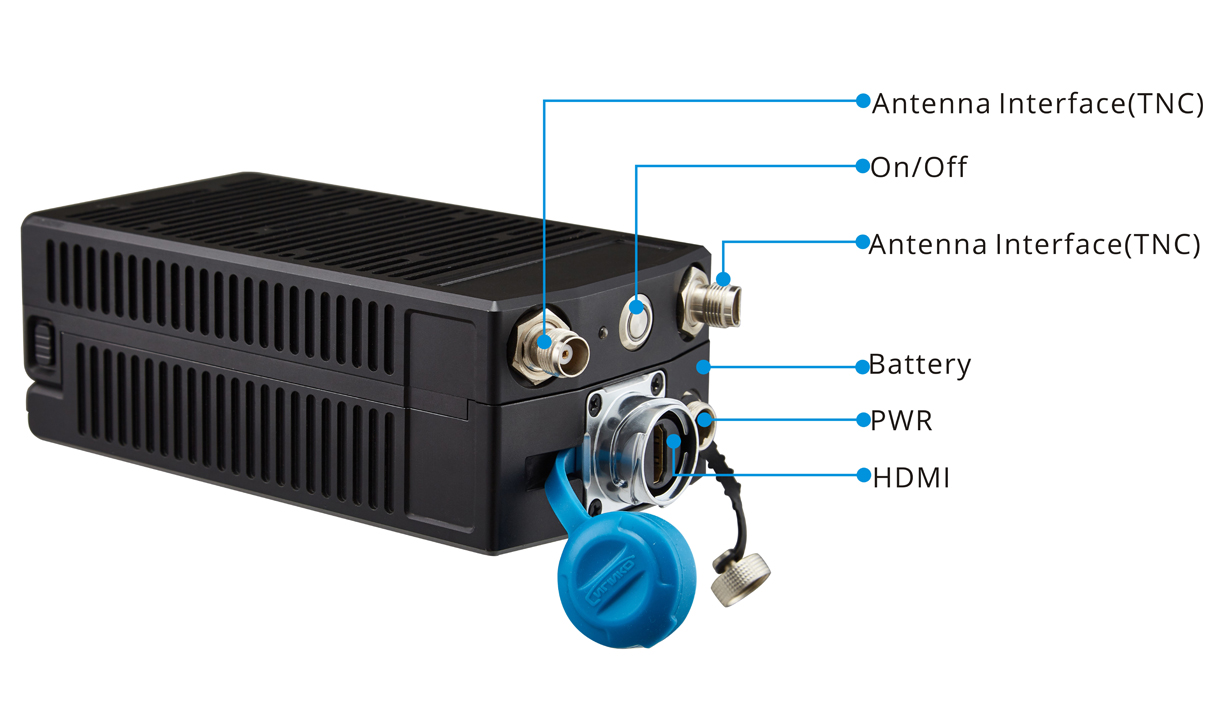

INTERFACES
RF 2 x TNC
On/Off 1xPower on/off Button
Video Input 1xHDMI
POWER DC INPUT
INDICATOR Tri-COLOR LED
