Unlocking Network Performance with the MOP‑2×1 Hybrid 698‑2700MHz
nn
In the fast-evolving world of telecommunications, the demand for reliable, high-performance signal distribution components has never been greater. Whether you are deploying a small cell network, enhancing indoor coverage, or managing an outdoor base station, the choice of hybrid coupler can define your system’s efficiency. The MOP‑2×1 Hybrid, operating across the full 698‑2700MHz spectrum, stands out as a robust solution designed for both pole and wall mounting. This article explores how this versatile component ensures seamless integration, minimal signal loss, and exceptional durability in challenging environments.
nn
At its core, the MOP‑2×1 Hybrid is engineered to combine or split RF signals with precision. Its wide frequency range covers critical bands from 698 MHz to 2700 MHz, making it compatible with 4G LTE, 5G NR, and legacy systems alike. The device’s hybrid design delivers a nominal coupling of 3.1±0.5 dB, ensuring balanced power distribution between output ports while maintaining low insertion loss. With a maximum ripple of just ±0.4 dB and isolation of ≥25 dB, this hybrid minimizes interference and preserves signal integrity—even in dense multi-carrier environments.
nn
One of the key advantages of this component is its passive intermodulation (PIM) performance. With a PIM3 rating of ≤ -155 dBc (tested with 2 x 43 dBm carriers), the MOP‑2×1 Hybrid reduces distortion that could otherwise degrade system capacity. This is critical for modern networks where high-order modulation schemes demand clean signal paths. Additionally, the device supports a peak envelope power (PEP) of 3.0 kW and an RMS power of 150 W, providing ample headroom for high-power applications without sacrificing reliability.
nn
Durable Design for Indoor and Outdoor Applications
nn

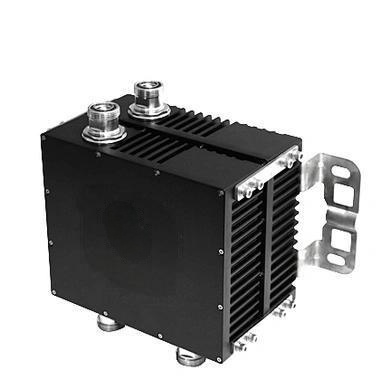

Built to withstand harsh conditions, the MOP‑2×1 Hybrid features an IP67 ingress protection rating, meaning it is fully protected against dust and temporary immersion in water. The black aluminum housing not only offers corrosion resistance but also facilitates effective heat dissipation. Operating across a temperature range from –40℃ to +65℃ and a relative humidity of 0 to 95%, this hybrid coupler is equally at home on a rooftop, inside a telecom cabinet, or mounted on a tower. Its compact dimensions of 300x280x130 mm (twin configuration) and weight of 6.5 kg allow for straightforward installation using standard brackets.
nn
MOP‑2×1 Hybrid: Technical Specifications at a Glance
nn
All critical performance parameters are summarized below, ensuring you have the data needed to evaluate compatibility with your system requirements.
nn
| Parameter | Specification |
|---|---|
| Product Name | Twin2x1 Hybrid |
| Frequency Range | 698 – 2700 MHz |
| Coupling | 3.1 ± 0.5 dB |
| Maximum Ripple / Insertion Loss | ±0.4 dB |
| Isolation | ≥ 25 dB |
| Return Loss | ≥ 20 dB |
| VSWR | ≤ 1.22 |
| PIM3 | ≤ -155 dBc (with 2 x 43 dBm) |
| Input Power (PEP) | 3.0 kW |
| Input Power (RMS) | 150 W |
| Operating Temperature | –40℃ to +65℃ |
| Relative Humidity | 0 – 95% |
| Impedance | 50 Ω |
| Size (Twin) | 300 x 280 x 130 mm |
| Weight | 6.5 kg |
| Connector Type | DIN Female |
| Ingress Protection | IP67 |
| Color | Black |
| RoHS | Meet |
nn
Why Choose the MOP‑2×1 Hybrid for Your Network?
nn
The MOP‑2×1 Hybrid is more than just a set of specifications—it is a proven building block for modern RF distribution systems. Its wideband performance eliminates the need for multiple narrowband hybrids, reducing inventory complexity and installation time. The low VSWR of ≤ 1.22 ensures excellent impedance matching, which is vital when cascading multiple components without introducing reflective losses. Furthermore, the DIN female connectors provide a secure, weather-resistant interface that is standard in professional telecom installations.
nn
Whether you are designing a distributed antenna system (DAS), a tower-mounted amplifier network, or an in-building coverage solution, the MOP‑2×1 Hybrid delivers consistent, predictable results. Its hybrid architecture allows for flexible combiner/splitter configurations, enabling operators to balance traffic loads or create redundant signal paths. With an IP67 rating and wide temperature tolerance, this component outperforms many competitors in real-world deployments, where rain, dust, and thermal cycling are daily realities.
nn
Final Thoughts on the MOP‑2×1 Hybrid
nn
Selecting the right hybrid coupler is a critical decision for any RF engineer. The MOP‑2×1 Hybrid 698‑2700MHz offers a compelling combination of wide frequency coverage, low loss, high isolation, and rugged construction—all in a compact, mountable form factor. From its industry-leading PIM performance to its robust IP67 enclosure, every aspect of this device is designed to support high-availability networks. Whether for outdoor macro sites or indoor small cells, this hybrid provides the signal purity and reliability that modern wireless systems demand. By choosing the MOP‑2×1 Hybrid, you invest in a component that will serve your infrastructure for years to come, ensuring consistent service quality across all supported bands.
