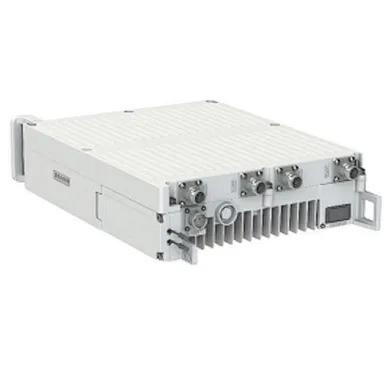

Unlocking the Future of Radio Access with the O-RAN 4T4R Remote Radio Unit
n
In the rapidly evolving landscape of telecommunications, network operators are constantly seeking innovative solutions that balance high performance with operational flexibility. The O-RAN 4T4R Remote Radio Unit (RRU) represents a significant leap forward, offering a potent combination of advanced radio technology and open architecture principles. This device is engineered to meet the demanding requirements of 4G and 5G networks, providing a seamless path for network upgrades and new deployments. At the heart of its design lies a commitment to efficiency, reliability, and the disaggregation of hardware and software, which is a cornerstone of the Open RAN movement.
n
This article delves into the technical specifications and operational benefits of this powerful unit, highlighting how it addresses the challenges of modern radio access networks (RAN). From its impressive radio frequency performance to its robust environmental resilience, the O-RAN 4T4R RRU is a versatile building block for high-capacity, future-proof networks. Whether you are deploying in dense urban environments, suburban areas, or remote locations, understanding the capabilities of this device is crucial for making informed infrastructure decisions.
n
Core Specifications and System Architecture
n
The O-RAN 4T4R RRU is designed around a 4×4 MIMO (Multiple Input Multiple Output) architecture, which is fundamental for boosting spectral efficiency and improving user throughput. This configuration allows for simultaneous transmission of multiple data streams, dramatically increasing network capacity without requiring additional spectrum. The unit supports both LTE and NR (5G New Radio) modes, making it a truly dual-mode solution that can be deployed in existing 4G networks and seamlessly upgraded for 5G services.
n
The following table outlines the key electrical specifications that define the unit’s performance and interoperability.
n
| Parameter | Downlink | Uplink |
|---|---|---|
| Frequency Band B3 (4×4 MIMO) | 1805 – 1880 MHz | 1710 – 1785 MHz |
| Instantaneous Bandwidth | 75 MHz | 75 MHz |
| Operation Bandwidth | 40 MHz | 40 MHz |
| Mode | LTE & NR | LTE & NR |
| RF Output Power | 4x40W | – |
| Power Supply | -48V DC (-36V~-57V), 27 ± 1 dBm (RF per port) | |
| O-RAN Split Option | Split option 7-2x | |
| Quantity of SFP Ports (Front Haul) | 2 | |
| Data Rate of Front Haul | Max. 10.137 Gbps | |
| 3GPP Compliance | TS36.104, TS36.141, TS38.104, TS38.141 | |
n
Performance Highlights
n
The O-RAN 4T4R RRU delivers a substantial RF output power of 4x40W, ensuring robust coverage and strong signal penetration. Its adherence to the O-RAN Split Option 7-2x is particularly critical. This split architecture allows for efficient distribution of baseband processing between the Central Unit (CU) and the Distributed Unit (DU), enabling better coordination, improved interference management, and easier network upgrades. The two high-speed SFP front haul ports, supporting data rates up to 10.137 Gbps, ensure that the unit can handle the immense data demands of modern 5G traffic without bottlenecking the network.
n
Environmental and Physical Hardiness
n
Deployment environments vary widely, from controlled indoor spaces to harsh outdoor locations exposed to extreme weather. The O-RAN 4T4R RRU is built to withstand these challenges, featuring a ruggedized design that guarantees reliable operation in virtually any climate. Its IP65 rating means it is completely protected against dust ingress and low-pressure water jets, making it ideal for pole, tower, or rooftop installations. Furthermore, the unit’s NEBS GR63 Zone 4 shockproof certification ensures it can survive severe seismic events, adding an extra layer of reliability for critical infrastructure.
n
| Parameter | Specification |
|---|---|
| Operating Temperature (No Solar Rad.) | –40°C to +55°C |
| Operating Temperature (Solar Rad.) | –40°C to +50°C |
| Relative Humidity | 5% RH to 100% RH |
| Absolute Humidity | 1 g/m³ to 30 g/m³ |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Shockproof Protection | NEBS GR63 Zone 4 |
| Ingress Protection (IP) Rating | IP65 |
n
Mechanical Integration
n

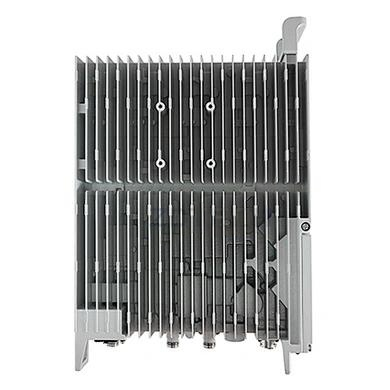

Planning for physical deployment is straightforward thanks to the unit’s compact form factor. Key mechanical data is summarized below.
n
| Parameter | Specification |
|---|---|
| Size (W x D x H) | 400 x 330 x 100 mm |
| Volume | 13.2 L |
| Weight | 15 kg |
| RF Connectors | 4 x 4.3-10 Female |
n
Conclusion: A Cornerstone for Open and Efficient Networks
n
The O-RAN 4T4R Remote Radio Unit represents more than just a piece of hardware; it is a strategic enabler for network evolution. By combining high-power output, support for both LTE and NR, and strict adherence to open standards, this unit provides operators with the flexibility and performance needed to thrive in a competitive landscape. Its robust environmental design minimizes site visits and operational downtime, while its O-RAN compliance ensures future-proofing against vendor lock-in. As the industry moves towards more software-defined and disaggregated network architectures, the O-RAN 4T4R RRU stands out as a reliable, high-capacity, and adaptable foundation for next-generation radio access. While every effort has been made to ensure the accuracy of the information provided, specifications are subject to change as part of continuous product improvement. This device is a powerful ally in building the responsive, high-performance networks of tomorrow.
