Precision Signal Control: The MOP-DC-740-300 RF Directional Coupler
n
In the fast-paced world of modern telecommunications, maintaining signal integrity is paramount. Whether you’re deploying a new 5G network or optimizing an existing 4G/LTE system, the need for precise signal coupling and monitoring has never been greater. Enter the MOP-DC-740-300, a high-performance RF directional coupler engineered to meet the rigorous demands of contemporary base stations and telecom infrastructure.
n
This compact yet robust device offers unparalleled performance across a wide frequency range, from 698 MHz to 4000 MHz. It is a versatile hybrid coupler designed to handle everything from legacy 2G and 3G networks to the latest 5G deployments. At its core, this RF directional coupler combines excellent directivity with ultra-low insertion loss, ensuring that your transmitted signal remains strong and clear while providing an accurate, low-distortion sample for monitoring or measurement.
n

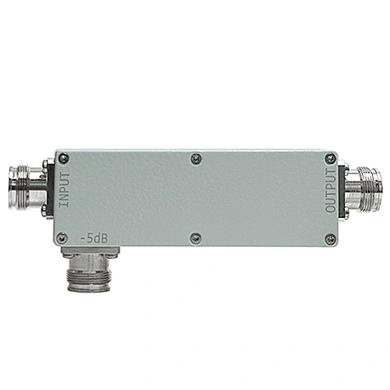

The rugged construction features high-quality 4.3-10 female connectors, a standard in the industry for their low Passive Intermodulation (PIM) performance. This is critical in demanding base station environments where even minor distortions can degrade system performance. Whether you need to measure power levels, monitor signal quality, or feed a test instrument, the MOP-DC-740-300 RF directional coupler delivers consistent, reliable results in all weather conditions, from -20°C to +55°C.
nn
Key Specifications and Technical Data
n
Understanding the performance metrics of any RF directional coupler is essential for proper system design. Below is the complete electrical and mechanical data for the MOP-DC-740-300, presented in a clear, structured format.
nn
| Parameter | Value / Description |
|---|---|
| Model Number | MOP-DC-740-300-XNF(MF/DF) |
| Frequency Range | 698 – 4000 MHz (5G Ready) |
| Coupling Values (dB) | 6, 7, 8, 10, 13, 15, 20, 30 |
| Coupling Flatness (dB) | ±0.7 (6 dB) to ±2.0 (30 dB) |
| Insertion Loss (dB) | ≤1.8 (6 dB) to ≤0.3 (30 dB) |
| Voltage Standing Wave Ratio (VSWR) | ≤1.25 |
| Directivity (dB) | ≥20 |
| Average Power Handling (W) | ≤300 |
| 3rd Order IMD (dBc) | ≤ -160 @ 2 × +43 dBm |
| Impedance (Ω) | 50 |
| Connector Type | N / Din / 4.3-10 Female |
| Operating Temperature | -20°C to +55°C |
| Application Environment | Indoor or Outdoor Use |
| Finish | Grey Plated |
nn
Why Choose This Hybrid Coupler?
n
This RF directional coupler stands out due to its exceptional balance of performance and durability. With coupling options ranging from 6 dB to 30 dB, it offers flexibility for various applications, from power monitoring to signal combining. The low VSWR (≤1.25) and high directivity (≥20 dB) ensure that the coupled port accurately reflects the forward or reverse power, minimizing measurement errors.
n
Furthermore, the low insertion loss—less than 0.4 dB for the 20 dB and 30 dB models—preserves the mainline signal strength, making it ideal for power-sensitive installations. The robust design, with its grey plated finish and weatherproof construction, ensures long-term reliability whether installed in a controlled indoor environment or an exposed outdoor base station.
nn
Where to Use Your RF Directional Coupler
n
The MOP-DC-740-300 is purpose-built for the modern telecom infrastructure. Typical applications include:
n
- n
- Signal Monitoring: Sampling transmitted signals for spectrum analysis or power level checks without interrupting the main path.
- Power Measurement: Connecting power meters or detection diodes to monitor forward and reflected power in base station transmitters.
- Network Optimization: Used in antenna line systems for 5G NR, LTE, and WCDMA to ensure optimal performance.
- Test and Measurement: Ideal for laboratory setups where precise signal coupling is required for receiver testing or amplifier characterization.
- Distributed Antenna Systems (DAS): Ensuring clean signal distribution in in-building or campus-wide coverage solutions.
n
n
n
n
n
n
In summary, the MOP-DC-740-300 RF directional coupler is a top-tier choice for any professional needing a reliable, high-performance solution for signal coupling and monitoring. Its wide bandwidth, low PIM, and robust build quality make it an essential component for anyone serious about maintaining a high-quality telecommunications network.
