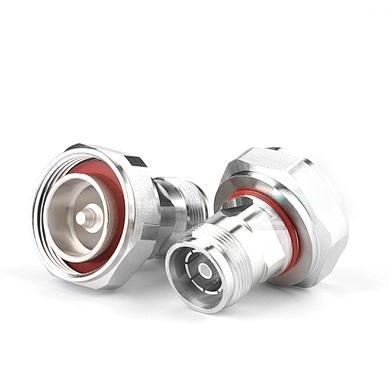

7/16 Male to 4.3-10 Female Adapter: A High-Performance RF Solution
nnIn the demanding world of RF and telecommunications, the quality of your interconnects can make or break system performance. The 7/16 male to 4.3-10 female adapter serves as a critical bridge between legacy and modern infrastructure, combining the rugged reliability of the 7/16 interface with the compact efficiency of the 4.3-10 connector. This adapter is specifically engineered for applications requiring minimal signal loss, excellent passive intermodulation (PIM) performance, and long-term durability. Whether deployed in base stations, distributed antenna systems (DAS), or test equipment, this adapter ensures seamless signal transition across frequency bands up to 2.5 GHz.nn
Robust Construction and Premium Materials
nnThis adapter is built from high-quality materials chosen for their electrical conductivity, mechanical strength, and corrosion resistance. The center contact uses tin-bronze with silver plating to optimize signal transfer, while the outer contact also benefits from tin-bronze and silver plating for low resistance. The body is machined from brass and then silver-plated, offering excellent shielding properties. A PTFE dielectric ensures stable impedance control, and a silicon rubber gasket provides environmental sealing against moisture and dust. The nut is brass with nickel plating, enabling secure torque application during installation. These material choices collectively deliver a durable adapter capable of surviving harsh outdoor conditions and repeated mating cycles.nn
Electrical Performance and Reliability
nnThe adapter is designed to meet stringent electrical specifications, making it suitable for high-performance networks. Its impedance of 50 Ohms matches standard RF systems, while the frequency range from DC to 2.5 GHz covers many cellular and wireless bands. Insulation resistance exceeds 10,000 MΩ, ensuring minimal leakage current. Contact resistance is precisely controlled: center contact resistance is 5 MΩ, and outer contact resistance is ≤1.0 MΩ. The adapter can withstand a dielectric strength of 2500V RMS and a working voltage of 1400V RMS. Insertion loss is kept below 0.10 dB from DC to 3 GHz, and VSWR is ≤1.20 over the same range. PIM performance is excellent, with values ≤ -160 dBc (measured at 2×43 dBm). Such low PIM is critical for modern cellular systems where interference can degrade call quality and data throughput. The adapter also supports at least 500 mating cycles, operating reliably across a temperature range of -40°C to +85°C, and is fully RoHS compliant.nn
Key Specifications and Technical Data
nnBelow is the complete set of specifications for the 7/16 male to 4.3-10 female adapter. All electrical, mechanical, and material parameters are organized for quick reference.nn
| Parameter | Specification |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | DC – 2.5 GHz |
| Insulation Resistance | ≥10,000 MΩ |
| Center Contact Resistance | 5 MΩ |
| Outer Contact Resistance | ≤1.0 MΩ |
| Dielectric Strength | 2500V RMS |
| Working Voltage | 1400V RMS |
| Insertion Loss (DC – 3 GHz) | ≤0.10 dB |
| VSWR (DC – 3.0 GHz) | ≤1.20 |
| PIM (2 x 43 dBm) | ≤ -160 dBc |
| Durability (Mating Cycles) | ≥500 |
| Temperature Range | -40°C to +85°C |
| RoHS Compliant | Yes |
nn
Material Composition
nnThe materials used in this adapter are chosen for performance and longevity. The table below details the plating and base materials for each component.nn
| Component | Material | Plating |
|---|---|---|
| Center Contact | Tin-bronze | Silver |
| Outer Contact | Tin-bronze | Silver |
| Body | Brass | Silver |
| Nut | Brass | Nickel |
| Dielectric | PTFE | — |
| Gasket | Silicon Rubber | — |
nn
Conclusion: Why Choose This 7/16 Male to 4.3-10 Female Adapter?
nnThis adapter represents a smart investment for network operators and system integrators who need to maintain signal integrity while transitioning between connector types. The 7/16 male to 4.3-10 female adapter offers a robust solution that does not compromise on electrical performance. Its low VSWR, minimal insertion loss, and outstanding PIM rating ensure that your system operates at peak efficiency, even in high-density environments. The durable material selection and environmental sealing make it suitable for both indoor and outdoor installations, while the 500-cycle durability rating guarantees long service life. By choosing this 7/16 male to 4.3-10 female adapter, you are investing in a component that meets the rigorous demands of modern telecommunications, from 2G to 5G networks. Upgrade your infrastructure with confidence, knowing that every connection is engineered for reliability.
