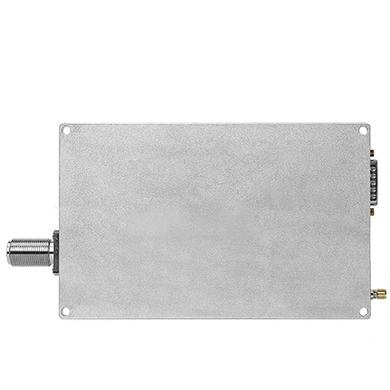

Experience Unmatched Signal Power with the 700-2700MHz 100W RF PA
n
In today’s hyper-connected world, reliable signal transmission is no longer a luxury—it’s a necessity. Whether you are managing a complex urban network, conducting critical research, or piloting a drone for professional surveys, the quality of your communication link can make or break your operation. Enter the 700 – 2700MHz 100W RF PA, a powerhouse of signal enhancement designed to meet the most demanding requirements. This wide band power amplifier module delivers exceptional performance, bridging the gap between standard signal output and the robust coverage needed for modern applications.
n
Engineered for versatility and strength, this amplifier covers a broad frequency spectrum from 700 MHz to 2700 MHz, making it an all-in-one solution for numerous wireless systems. Its ability to deliver a robust 100W of wide band RF power ensures that even in challenging environments—such as dense urban centers with high interference or remote areas with weak coverage—your signal remains strong and clear. The 700 – 2700MHz 100W RF PA is not just an amplifier; it is a reliable partner for ensuring stable, high-quality communication across multiple sectors.
n
Core Features of the 100W Wide Band Power Amplifier Module
n
High Gain and Exceptional Linearity
n
One of the standout attributes of this amplifier is its high gain, which significantly boosts signal strength while minimizing distortion. This results in clearer voice transmissions, higher data throughput, and a reduction in errors caused by signal degradation. The module’s design ensures stable performance across its entire frequency range, with a gain of 50±1.0dB and low in-band fluctuation, guaranteeing that your communication remains both powerful and reliable.
n
0-5V Adjustable Power Control
n
Flexibility is key in modern electronics, and the 0-5V adjustable power feature (PA_ADJ) puts control directly in your hands. Users can precisely dial in the output power from 100W down to minimal levels by adjusting a simple 0–5V voltage signal (0V provides maximum attenuation, while 5V offers no attenuation). This allows for real-time customization based on specific needs, whether you are conserving power during routine operations or maximizing output for long-distance transmissions. Such adaptability makes the 700 – 2700MHz 100W RF PA suitable for both fixed and adaptive environments.
n
Intelligent Protection and Monitoring
n
Built for durability, the module includes a suite of protection features to safeguard both the amplifier and your equipment. It comes equipped with over-temperature protection, standing wave (VSWR) protection, and a temperature compensation mechanism. The integrated LED indicators (POWER, RUN, VSWR) and analog monitoring outputs (temperature detection, forward power detection, and standing wave alarm) provide real-time status feedback, enabling proactive system management and preventing damage before it occurs.
n
Applications: From Drone Signal Booster to Industrial Telecom
n
The versatility of this module is unparalleled. In the realm of unmanned aerial vehicles (UAVs), it serves as a powerful Drone Signal Booster, dramatically extending control range and video transmission distance. Pilots can fly with greater confidence, performing complex tasks such as aerial surveying, inspection, and cinematography without signal drops. Beyond drones, the amplifier excels in industrial communications, cellular signal enhancement, wireless infrastructure, and scientific research, where consistent, high-power RF output is mandatory.
n
Technical Specifications
n
The following table details the comprehensive technical parameters of the amplifier module, ensuring you have all the data necessary for integration and deployment.
n
| Parameter | Specification | Remark / Test Condition |
|---|---|---|
| Frequency Range | 700 – 2700 MHz | |
| Operating Voltage | 30V (DC) | Range: 28 – 32V DC |
| Maximum Output Power | 50±1 dBm | Equivalent to ~100W |
| Operating Current | ≤12 A | |
| Gain | 50±1.0 dB | |
| In-Band Fluctuation | ±2 dB (peak) | |
| Maximum Allowable Input Power | ≥+10 dBm | Duration: 1 min without damage |
| Input Voltage VSWR | ≤1.50 | Add +28V, standard network output -10dBm |
| Output Voltage VSWR | ≤1.50 | Without power, standard network output -10dBm |
| VSWR (Active state) | ≤1.50 | Power up, dual directional coupler test |
| Working Environment Temperature | -10°C to +55°C | Low temperature can start, monitoring works normally |
| Gain Stability | ±1.5 dB | @-10°C to +55°C |
| Power Stability | ±1.5 dB | @-10°C to +55°C |
| Power Supply Requirement | ≥8A @+30Vdc | Continuous wave output 100W |
| Power Supply & Control Interface (7W2 Connector) | ||
| A1 | VCC+28V | Power supply input |
| A2 | GND | Ground |
| 1 (TEMP_AD) | Temperature detection AD | Voltage value output |
| 2 (RUN) | Forward power detection AD | Voltage value output |
| 3 (VSWR_AL) | Standing wave alarm | High level alarm, low level cancellation |
| 4 (PA_EN) | Enable switch | High level 3V~5V = ON; Low level = OFF |
| 5 (PA_ADJ) | Power regulation input | 0~5V voltage; 0V = max attenuation, 5V = no attenuation |
| Mechanical & Indicators | ||
| RF Output Connector | N-F (Female N-type) | |
| Module Dimension | 162 x 92 x 25 mm | |
| Module Protection | Temperature compensation, | Over-temperature protection, Standing wave protection |
| LED Indicators | POWER, RUN, VSWR | Power indication, Operation indication, Warning indication |
n
Conclusion
n
The 700 – 2700MHz 100W RF PA represents a significant leap forward in signal amplification technology. Its combination of ultra-wide frequency coverage, high power output, precise gain, and intelligent control features makes it an indispensable tool for any application requiring robust wireless performance. From boosting drone connectivity to strengthening industrial networks, this module delivers consistent, reliable results. By choosing this RF power amplifier, you are not just buying a component—you are investing in unwavering communication stability and peak system performance, ensuring that your signal is always strong, clear, and secure.
