Unleashing the Power of the Next-Generation 100W Amplifier
nn
In the demanding world of radio frequency engineering, signal integrity and reliability are paramount. When your system requires a robust, industrial-grade solution, the 100W power amplifier stands as a cornerstone of high-performance signal processing. Designed specifically for the critical 851-894MHz and 925-960MHz frequency bands, this amplifier core is engineered to meet the exacting standards of modern wireless communication, signal boosting, and RF testing. Far from a simple component, it is a complete amplification system, delivering the raw power and precision necessary to drive complex networks and ensure consistent, high-quality transmission.
nn
The essence of this device lies in its ability to combine substantial output with exceptional stability. As a vhf power amplifier 100w, it delivers a saturated output power of ≥50dBm, which translates to a full 100 Watts. This high drive capability is paired with a remarkable gain of 50±2dB, ensuring that even weak incoming signals are amplified to powerful, usable levels without introducing excessive noise. This performance category is not just for hobbyists; it is purpose-built for industrial environments where failure is not an option, making it the preferred 100w amplifier for critical infrastructure projects.
nn
Precision Engineering and Stable Performance in Your 100W Amplifier
nn
Beyond raw power, the true value of an RF amplifier is its ability to maintain signal fidelity. This 100w power amplifier excels in this regard, featuring an in-band fluctuation of ≤2.0dB. This ensures that the output signal remains flat and consistent across the operating frequency range, preventing distortion and data loss. The input VSWR (Voltage Standing Wave Ratio) is ≤1.5, a metric that reflects excellent impedance matching, minimizing signal reflection and maximizing power transfer from the source. Furthermore, gain temperature stability is held to ≤±1.5dB, guaranteeing reliable performance even when ambient temperatures fluctuate. This level of engineering ensures accurate and stable signal amplification in the most challenging conditions.
nn
Technical Specifications of the 100W Power Amplifier Module
nn
To fully appreciate the capabilities of this module, a detailed review of its technical parameters is essential. The following table outlines the core specifications that define its operational excellence.
nn
| Parameter | Specification |
|---|---|
| Working Frequency | 851-894 MHz; 925-960 MHz |
| Saturated Output Power | ≥50 dBm (100 W) |
| Gain | 50 ± 2 dB |
| In-Band Fluctuation | ≤ 2.0 dB |
| Out-of-Band Spurious | 9 kHz ~ 1 GHz: ≤ -36 dBm/30 kHz 1 GHz ~ 12.75 GHz: ≤ -30 dBm/30 kHz |
| Input VSWR | ≤ 1.5 |
| Gain Temperature Stability | ≤ ± 1.5 dB |
| Maximum Lossless Input Power | +10 dBm |
| Working Voltage | DC +28 V |
| Working Current | ≤ 9.5 A |
| Input RF Port | SMA-KFD |
| Output RF Port | N-F |
| Dimensions | 200 × 90 × 24 mm |
| Working Temperature | -10 ~ +55 °C |
nn
System Integration and Protection Features of the VHF Power Amplifier 100W
nn
Integration into a larger system is made straightforward with a rich set of interfaces. The 100w amplifier includes a power supply monitoring interface using a 7W2 male socket. This interface provides critical functions: A1 connects to GND, and A2 connects to +28V. Pin 1 enables the power amplifier (high level turns it on, low level turns it off, with a factory default of low level). Pins 2 and 5 are grounded. Pin 3 provides a temperature alarm, outputting a high-level signal when the amplifier’s internal temperature exceeds +85°C. Pin 4 provides a VSWR alarm, outputting a high-level signal when the output is disconnected. These built-in alarms, combined with excellent spurious suppression from 9kHz to 12.75GHz, create a highly intelligent and robust system.
nn
Conclusion: The Ultimate Choice for Your Next 100w Amplifier Project
nn

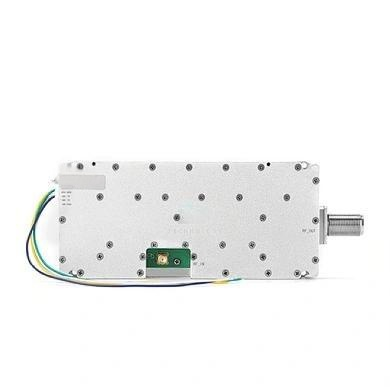

Whether you are involved in signal boosting for cellular networks, conducting rigorous RF testing, or integrating components into a larger system, this 100W power amplifier offers an unmatched blend of power, precision, and protection. Its compact 200×90×24mm design, utilizing SMA-KFD and N-F ports, is optimized for both easy installation and effective heat dissipation. The vhf power amplifier 100w not only meets but exceeds industrial-grade stringent requirements, ensuring long-term reliability and superior performance. For engineers and system integrators seeking a dependable, high-performance 100w amplifier, this module represents the gold standard for demanding RF applications, making it the clear choice for building robust and efficient wireless communication systems.
