China Moneypro 902-928MHz 7dBi Outdoor waterproof fiber glass Antenna

Unleashing IoT Connectivity with a High-Performance 900MHz Omni Antenna

nn

In the rapidly expanding world of the Internet of Things (IoT) and long-range wireless communication, antenna selection is the single most critical factor determining system range and reliability. Whether you are deploying a LoRaWAN gateway, a private LTE network, or an industrial sensor mesh, the antenna must bridge the gap between your device and the airwaves. This guide explores the capabilities of a rugged, fiberglass 900MHz omni antenna designed to excel in the 902-928 MHz frequency band. We will break down its technical prowess, real-world applications, and why its design makes it an indispensable tool for modern wireless engineers.

nn

Imagine a device that can broadcast a robust signal in all directions, withstand extreme weather, and maintain a clean, low-profile installation. That is exactly what this antenna delivers. It is engineered for professionals who require consistent performance in outdoor environments, from smart agriculture to urban infrastructure monitoring. By the end of this article, you will understand not only the what but the why behind every specification, making your next deployment a success.

nn

Decoding the 900MHz Omni Antenna: Performance and Design

nn

To fully appreciate this antenna’s capabilities, we need to dissect its electrical and mechanical attributes. This section covers the core performance metrics that define its suitability for long-range, low-power networks. The focus keyword throughout this analysis highlights the seamless integration of durability with high-efficiency radiation patterns.

nn

Electrical Specifications for Maximum Range

nn

The electrical heart of this antenna is tuned specifically for the 902-928 MHz ISM band, which is the backbone of many global IoT standards. With a voltage standing wave ratio (VSWR) of ≤1.5, it ensures minimal signal reflection, translating to near-perfect power transfer from the radio to the air. The 7 dBi gain provides a significant boost, enabling connections over many kilometers. Its omnidirectional horizontal coverage (360 degrees) and narrow vertical beamwidth of just 18 degrees create a flat, pancake-like radiation pattern—ideal for covering wide areas from a high mounting point while minimizing wasted energy into the sky or ground. The vertical polarization aligns with the vast majority of IoT transceivers, and the 50-ohm impedance ensures an easy match with standard coaxial cables. Designed to handle up to 100 watts, it is robust enough for point-to-multipoint access points and base stations.

nn

All these electrical parameters are presented clearly in the table below for quick reference.

nn

Mechanical Durability for Outdoor Deployment

nn

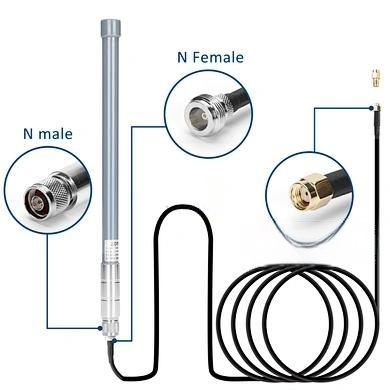

An antenna is only as good as its ability to survive the elements. This unit features a fiberglass radome, which offers exceptional resistance to UV radiation, corrosion, and physical impact. The N-male connector (or customizable options) provides a weather-tight seal, while the compact dimensions of 360 x 23 mm and a net weight of just 0.32 kg make for a lightweight, low-wind-load installation. It mounts easily onto poles ranging from 30 to 55 mm in diameter, and its operational temperature range of -40°C to +60°C, combined with humidity tolerance of 5% to 95%, ensures reliable function from deserts to coastal regions. The focus keyword is realized in its ability to perform consistently under the harshest conditions.

nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

This table consolidates every crucial parameter, from the 360-degree horizontal coverage to the robust temperature tolerance, ensuring you have all the data needed for integration.

nn

Real-World Applications and Deployment Tips

nn

Optimizing LoRaWAN and Other 900MHz Networks

n

This focus keyword antenna is purpose-built for LoRaWAN gateways and other 900 MHz systems. Its 7 dBi gain allows a single gateway to cover an entire industrial park, a large farm, or a sprawling campus. The narrow vertical beamwidth is particularly advantageous when mounted on a tower or rooftop, as it focuses the signal parallel to the ground, reducing interference from foliage or buildings. For best results, mount the antenna as high as possible with a clear line of sight to the most distant nodes. The fiberglass radome is maintenance-free and will not degrade from constant sun exposure.

nn

Versatility in Harsh Environments

n

Thanks to its wide operating temperature range and weather-sealed construction, this antenna is a perfect fit for smart city projects, oil and gas monitoring, and agricultural IoT. The N-male connector ensures a secure, low-loss connection with standard N-type cables. When deploying in coastal areas, the corrosion-resistant fiberglass housing prevents saltwater damage, maintaining consistent VSWR and gain over many years. The lightweight design (0.32 kg) simplifies installation on existing poles or masts without reinforcing the structure.

nn

Conclusion: Elevate Your Wireless Network

nn

Choosing the right antenna is a strategic decision that directly impacts coverage, data rates, and overall system reliability. This 900MHz omni antenna delivers a perfect balance of high 7 dBi gain, omnidirectional coverage, and rugged mechanical design. Each specification, from the ≤1.5 VSWR to the broad humidity tolerance, has been engineered to solve real-world communication challenges. Whether you are building a city-wide sensor network or a remote agricultural monitoring system, this antenna provides a robust, future-proof foundation.

nn

In summary, the focus keyword represents a reliable, high-performance solution for any 900 MHz application. By integrating this antenna into your infrastructure, you ensure that your network will not only connect but thrive in demanding outdoor environments. Make the choice today to boost your IoT network’s performance and longevity.
