Unlocking High-Frequency Performance: The 4.3-10 to N-Type RF Adapter
n

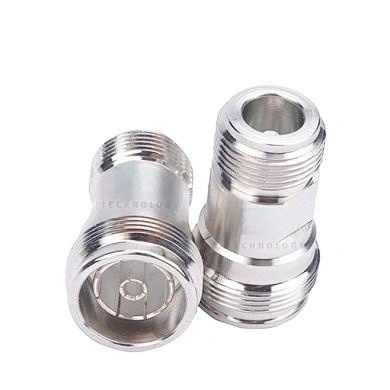

In the demanding world of modern telecommunications, the integrity of your signal path is paramount. Whether you’re deploying a 5G base station or calibrating sensitive test equipment, the components bridging your system’s interfaces must deliver unwavering performance. The 4.3-10 straight female to N-type straight female RF adapter, model 4310F-NF-01, is engineered precisely for this task. By combining two widely adopted connector standards, this adapter ensures seamless, low-loss interconnection, even in the most challenging high-frequency environments. Let’s explore what makes this component an essential tool for engineers and technicians who refuse to compromise on signal quality.
nn
At the heart of this adapter’s design is its ability to handle a broad spectrum of frequencies. From DC to 6GHz, it accommodates everything from legacy cellular bands to the latest 5G NR (New Radio) requirements. This wideband capability is crucial for systems that must support multiple generations of technology simultaneously. With a characteristic impedance of 50 Ohm—the industry standard for RF systems—it guarantees optimal power transfer and minimal reflections, making it a reliable choice for both commercial and industrial applications.
nn
Electrical Excellence: Ensuring Low-Loss, Stable Signal Transmission
n
When signal loss and interference can mean the difference between a clear connection and data corruption, the 4310F-NF-01 delivers exceptional electrical specifications. Its low VSWR (Voltage Standing Wave Ratio) of ≤1.10 from DC to 3.0GHz indicates a near-perfect impedance match, minimizing reflected power and maximizing the energy delivered to the load. This is complemented by an insertion loss of ≤0.10dB over the same range, ensuring that your signal remains strong and uncorrupted.
nn
For systems where intermodulation distortion is a concern, such as densely packed base stations, this adapter shines with a Passive Intermodulation (PIM) rating of ≤-160dBc. Such low PIM levels are critical for maintaining clean spectral performance and preventing interference in sensitive receivers. To further guarantee safety and longevity, the adapter provides robust electrical insulation with an insulation resistance of ≥10000 MΩ and a dielectric withstanding voltage of 2500V RMS. Its working voltage of 1400V RMS offers a generous safety margin for high-power applications, making it a trustworthy component for professional-grade installations.
nn
H3: Technical Specifications at a Glance
n
The following table details the key performance parameters of the 4.3-10 to N-Type RF adapter, ensuring you have precise data for your design and procurement decisions.
n
| Parameter | Specification |
|---|---|
| Connector Interface (Port 1) | 4.3-10 Straight Female |
| Connector Interface (Port 2) | N-Type Straight Female |
| Characteristic Impedance | 50 Ohm |
| Frequency Range | DC to 6 GHz |
| VSWR (DC ~ 3.0 GHz) | ≤ 1.10 |
| Insertion Loss (DC ~ 3 GHz) | ≤ 0.10 dB |
| Passive Intermodulation (PIM) | ≤ -160 dBc |
| Insulation Resistance | ≥ 10000 MΩ |
| Dielectric Withstanding Voltage | 2500 V RMS |
| Working Voltage | 1400 V RMS |
| Durability (Mating Cycles) | ≥ 500 cycles |
| Operating Temperature Range | -65°C to +165°C |
| RoHS Compliance | Yes |
nn
Built to Last: Robust Materials and Environmental Resilience
n
Beyond its electrical prowess, this RF adapter is constructed to withstand the rigors of both indoor and outdoor environments. The center and outer contacts are crafted from tin-bronze with a silver-plated finish, offering excellent conductivity and corrosion resistance. The main body is machined from brass and also silver-plated, providing a durable foundation that resists wear. A PTFE dielectric ensures stable electrical performance across a wide temperature range, while the silicon rubber gasket seals the interface against moisture and dust.
nn
Meeting the stringent MIL-STD-202F test standards, this adapter is designed to endure thermal shock and vibration without degradation. With a durability rating of ≥500 mating cycles, it maintains consistent performance over repeated connections, making it a cost-effective solution for test labs and field deployments alike. Whether exposed to the freezing cold of a mountaintop site or the intense heat of a server room, the 4310F-NF-01 operates reliably from -65°C to +165°C.
nn
H3: Adapting to Diverse Applications
n
The versatility of this 4.3-10 straight female to N-type straight female RF adapter makes it a go-to component for a wide array of scenarios. In 5G base stations, it enables the interconnection of antennas and remote radio units (RRUs) with different connector types, facilitating smooth upgrades from legacy N-type systems to modern 4.3-10 platforms. For RF communication equipment, it provides a low-loss bridge for signal routing, while in test and measurement instruments, it ensures accurate, repeatable results due to its stable electrical characteristics. Whether you’re building a distributed antenna system (DAS) or prototyping a new wireless device, this adapter offers the dependability you need for high-frequency signal transmission.
nn
Conclusion: A Cornerstone for Reliable RF Connectivity
n
In summary, the 4310F-NF-01 RF adapter is more than just a simple connector; it’s a precision-engineered solution designed to preserve signal integrity across demanding applications. From its low VSWR and insertion loss to its robust construction and environmental resilience, every aspect of this component has been optimized for performance. Its wide frequency range from DC to 6GHz ensures future-proofing for evolving communication standards, while its excellent PIM and high-voltage ratings provide peace of mind in critical systems. For engineers and technicians seeking a reliable, high-quality interface between 4.3-10 and N-type systems, this adapter represents a smart investment in connectivity excellence. Trust the 4.3-10 straight female to N-type straight female RF adapter to bridge the gap between your components and your signal demands.
