Enhancing Wireless Communication with the Electronic Fence RF Amplifier Module
n

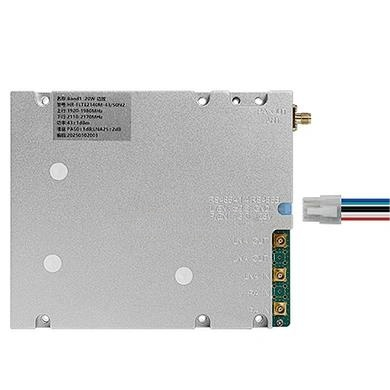

In the rapidly evolving landscape of modern wireless communications, effective RF monitoring and power management are indispensable. As demand for reliable data acquisition and signal processing grows, MOPTECH has introduced a cutting-edge solution: the electronic fence RF amplifier module. This data acquisition amplifier module, boasting 20 watts of power, is engineered to meet the rigorous demands of wireless systems. It features six strategically designed ports, each responsible for critical functions such as power supply monitoring and serial communication. Additionally, the RF power module incorporates various connectors to establish a complete RF link, ensuring seamless signal transmission and processing. With versatile functionality, the amplifier module 20w allows configuration of multiple monitoring parameters, including those for power amplifiers (PA) and low-noise amplifiers (LNA). This enables precise detection of reverse power and amplifier temperature, safeguarding performance. Crucially, these power amplifier modules integrate a built-in temperature protection mechanism, automatically responding to overheating or overpower conditions to prevent damage and maintain system stability.
n
Features and Applications of Power Amplifier Modules
n
The power amplifier modules are vital components of wireless hotspot acquisition equipment, particularly in electronic fence devices. These devices are designed to collect IMSI codes from mobile phone SIM cards, commonly deployed at key urban checkpoints such as stations, hospitals, and crowded public spaces. Upon capturing IMSI information, the device uploads data to a backend server. Through sophisticated management platform software, big data analysis is performed, including collision analysis, accompanying analysis, and license plate to IMSI code collision analysis. This enables real-time monitoring of mobile personnel, enhancing security and intelligence gathering.
n
MOPTECH emphasizes customization to address diverse customer needs. Clients can tailor frequency band wattage and other parameters, creating a personalized electronic fence RF amplifier module. For 4G networking, MOPTECH’s fusion function supports both same-frequency and different-frequency solutions on a single electronic fence module, with seamless switching via server backend. This innovation eliminates the need for equipment replacement when solution requirements change, offering unparalleled flexibility and convenience.
n
Technical Specifications of the Electronic Fence RF Amplifier Module
n
| Item Indicator | Transmitter Channel (PA) | Receiver Channel (LNA) |
|---|---|---|
| Working Frequency | 1920～1980MHz | 2110～2170MHz |
| Saturated Power Output | 43±1dBm | -10±1dBm |
| Gain | 50±1dB | 25±2dB |
| Gain Adjustment Range | ≥25dB | ≥25dB |
| Gain Adjustment Step | 1dB | 1dB |
| ALC Automatic Level Control | ≥10dB | / |
| In-band Flatness | ≤2.0dB | ≤2.0dB |
| ACPR | ≤-45dBc | / |
| EVM | ≤5% | / |
| Noise Figure | / | ≤1.8dB |
| Maximum Lossless Input | 0dBm | -10dBm |
| Out-of-band Spurs | 9kHz～1GHz@≤-36dBm/30kHz; 1GHz～12.75GHz@≤-30dBm/30KHz | |
| VSWR | ≤1.5 | |
| Working Current/Voltage | ≤3.5A/DC+28V | |
| Working Temperature | -25～+55℃ | |
| RF Port | PA IN, LNA IN, MCX-KHD for LNA OUT ports; SMA-KHD for PA OUT | |
| Connector | 5569 Connector, Pitch 4.2MM, Bent Pin Block 2*3PIN | |
| Monitoring Interface | PIN 1: RS485A; PIN 4: RS485B; PIN 2: L/EN (empty); PIN 5: GND; PIN 3: P/EN (empty); PIN 6: +28V | |
| Type of Monitoring | RS485 monitoring protocol, baud rate 9600/19200 optional (factory default 19200) | |
| Amplifier Size | 130x110x21mm | |
n
Customization and 4G Networking Solutions
n
MOPTECH’s commitment to customization ensures that the electronic fence RF amplifier module can be adapted to specific operational requirements. Beyond frequency and wattage adjustments, the fusion function for 4G networking stands out. By integrating same and different frequency support, customers enjoy a unified solution that simplifies deployment and reduces hardware costs. This adaptability is critical for dynamic wireless environments where network configurations evolve.
n
Conclusion
n
The electronic fence RF amplifier module from MOPTECH represents a significant advancement in wireless communication technology. Its robust RF monitoring, power management capabilities, and customizable features make it an essential tool for modern data acquisition and security applications. By ensuring reliable performance through temperature protection and precise parameter control, these power amplifier modules empower users to maintain stable operations in demanding scenarios. Whether for urban surveillance or network optimization, this amplifier module 20w delivers the consistency and flexibility needed to excel in today’s connected world.
