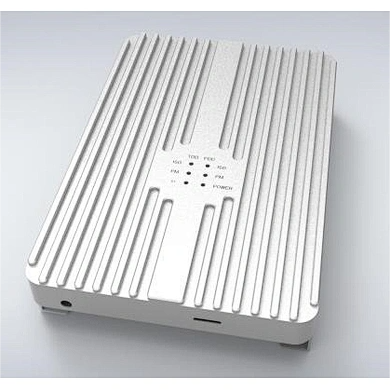

Understanding the B3&B1&N1&N78 Micro Repeater: Boosting Wireless Signal in the Digital Age
In modern wireless communication, a stable and strong signal is essential for seamless connectivity, whether for voice calls or high-speed data. A repeater, often called a signal booster, is a radio transmission relay device that enhances signal strength during wireless transmission. It belongs to the category of same-frequency amplification devices and serves as a critical supplementary component in wireless communication access networks. By extending base station coverage and eliminating blind spots, the repeater ensures that users in challenging locations—such as basements, tunnels, or dense urban areas—maintain reliable connectivity. The B3&B1&N1&N78 Micro Repeater is specifically designed for such challenges, offering a compact solution for small-area blind spot coverage. Supporting multiple frequency bands, including B3, B1, N1, and N78, this device caters to both 4G-LTE and 5G-NR standards. By capturing signals from a mobile base station via an outdoor receiving antenna, it amplifies and retransmits them to cover weak or dead zones. Conversely, signals from mobile users are amplified and sent back to the base station, effectively eliminating signal dropouts in areas plagued by poor coverage.
This advanced repeater is particularly valuable in environments where traditional infrastructure falls short, such as inside large buildings, remote offices, or industrial sites. Its ability to operate across both 4G and 5G networks ensures forward compatibility, making it a future-proof investment for organizations seeking to improve communication reliability. Moreover, the device’s design prioritizes user convenience, with a focus on ease of installation and maintenance. The B3&B1&N1&N78 Micro Repeater not only enhances signal strength but also optimizes network performance, reducing latency and improving data throughput for a superior user experience.
Key Features of the B3&B1&N1&N78 Micro Repeater
The B3&B1&N1&N78 Micro Repeater incorporates several advanced features to ensure optimal performance under varying conditions. One standout capability is its automatic output power adjustment function. This feature allows the device to dynamically maintain stable output power even when external signals fluctuate due to environmental changes or network congestion. Such adaptability prevents signal distortion and ensures consistent coverage, making it ideal for dynamic settings like bustling commercial centers or industrial zones. Additionally, the repeater supports a wide range of frequency bands, enabling it to bridge gaps in 4G-LTE and 5G-NR networks. This dual-band support is crucial in areas transitioning between technologies, as it provides a seamless handoff without compromising connectivity.
Another notable feature is the device’s gain adjustability, which offers granular control over signal amplification. With a gain adjustable range of ≥30 dB and a step size of just 1 dB, users can fine-tune the repeater to match specific environment needs, preventing over-amplification that might cause interference. The built-in automatic level control (ALC) ensures that output power remains within safe parameters, even when input signal levels spike unexpectedly. This protects both the device and the network from potential damage, enhancing longevity and reliability. Furthermore, the repeater’s low noise figure (≤8 dB) and minimal time delay (≤1 μs) underscore its efficiency, delivering clean, lag-free signals ideal for real-time applications like VoIP and video conferencing.
Technical Specifications Overview
To fully appreciate the capabilities of the B3&B1&N1&N78 Micro Repeater, it is essential to examine its technical specifications closely. The following table provides a comprehensive breakdown of its electrical and physical parameters, ensuring clarity for engineers, installers, and end-users alike.
| Item | Specification (DL) | Specification (UL) | Remark |
|---|---|---|---|
| Frequency Range (MHz) | 1830–1850 (B3), 2110–2130 (B1 & N1), 3600–3700 (N78) | 1735–1755 (B3), 1920–1940 (B1), Not applicable for N1 & N78 | Covers B3, B1, N1, and N78 bands |
| Max. Total Output Power (dBm) | 20 ± 1.5 | 17 ± 1.5 | – |
| Automatic Level Control (ALC) Range | When input signal level increases by less than 10 dB (including 10 dB), output power stays within ±2 dB of max. For increases over 10 dB, output stays within ±2 dB of max or output is turned off. | Ensures stable performance | |
| Maximum Allowable Input Level (dBm) | -10 | – | |
| Gain (dB) | 70 ± 3 | 65 ± 3 | – |
| Gain Adjustable Range (dB) | ≥ 30 | – | |
| Gain Adjustment Step Size (dB) | 1 | Granular control | |
| Gain Adjustable Error (dB) | 0–10: ≤ |±1.0|, 10–20: ≤ |±1.0|, ≥21: ≤ |±1.5| | High precision | |
| Frequency Error (ppm) | ≤ 0.05 | Highly accurate | |
| Ripple In Band (dB) | ≤ 6 | Maintains signal integrity | |
| VSWR | ≤ 2.0 | Impedance matching | |
| Noise Figure (dB) | ≤ 8 | Low noise | |
| Time Delay (μs) | ≤ 1 | Real-time operation | |
| EVM | ≤ 6% | Error vector magnitude | |
| Attenuation Spurious Emission (dBm) | ≤ -40 (dBc/30 kHz) | Out of band: 10 MHz offset; 9 kHz–150 kHz/1 kHz: ≤ -36, 150 kHz–30 MHz/10 kHz: ≤ -36, 30 MHz–1 GHz/100 kHz: ≤ -36, 1 GHz–12.75 GHz/1 MHz: ≤ -30 | |
| ACLR (dBc) | ±20 MHz: ≤ -40, ±40 MHz: ≤ -45 | Adjacent channel leakage ratio | |
| Power Supply | DC 12V, External power adapter | – | |
| Working Temperature | -5°C to +55°C, humidity ≤ 95% | Rugged environment tolerance | |
| RF Connector | N-F | – | |
| Impedance (Ω) | 50 | Standard | |
| Waterproof | IP30 | Limited protection | |
| Size (mm) | ≤ 240 × 200 × 30 | Compact form factor | |
| Weight (Kg) | ≤ 2.5 | Lightweight for easy installation | |
| Working Status Indicator | TDD sync indicator, output power intensity indicator | Visual monitoring | |
Practical Applications and Installation Considerations
The B3&B1&N1&N78 Micro Repeater is engineered for diverse environments, from residential apartments to commercial office spaces and industrial warehouses. Its versatile frequency support ensures compatibility with both legacy 4G-LTE and emerging 5G-NR networks, making it an ideal choice for locations where network operators are rolling out new infrastructure. The device’s automatic level control and gain adjustability simplify installation, as it can adapt to variable signal conditions without manual recalibration. For instance, in a large office building with multiple floors, the repeater can be strategically placed to bridge coverage gaps, ensuring employees experience consistent connectivity for video calls, file transfers, and cloud-based applications. Installation involves mounting an outdoor antenna to capture the base station signal, connecting it to the repeater, and placing an indoor antenna to redistribute the amplified signal. The compact size (≤ 240 × 200 × 30 mm) and lightweight design (≤ 2.5 kg) facilitate wall mounting or shelf placement, while the IP30 waterproof rating allows for indoor use in controlled environments. Additionally, the working status indicators—TDD sync and output power intensity—provide real-time feedback, aiding technicians in optimizing placement and performance during setup.
Troubleshooting and Maintenance
Maintaining the B3&B1&N1&N78 Micro Repeater is straightforward, thanks to its robust design and self-regulating features. The automatic power adjustment and ALC minimize the need for manual intervention, but periodic checks of antenna cables and connectors are recommended to ensure impedance remains at 50 Ω. Users should monitor the TDD sync indicator to confirm proper synchronization with the network, and the output power intensity indicator can help identify when a stronger incoming signal is needed. In case of performance degradation, adjusting the gain within the 30 dB range can often resolve issues. The device’s compliance with stringent spurious emission and ACLR limits ensures it does not interfere with other equipment, making it a reliable addition to any network.
Conclusion: Why the B3&B1&N1&N78 Micro Repeater is a Game Changer
In conclusion, the B3&B1&N1&N78 Micro Repeater is a sophisticated yet accessible solution for overcoming signal dead zones in modern wireless networks. As a repeater designed for both 4G and 5G, it seamlessly integrates with existing infrastructure while future-proofing connectivity demands. Its automatic power adjustment, precise gain control, and low noise figure ensure robust performance across diverse environments, from residential nooks to industrial complexes. By amplifying weak signals and maintaining stable output, it eliminates frustrating call drops and slow data speeds, enhancing productivity and communication quality. Whether deployed in a small office or a large building, this device delivers measurable improvements in network coverage, making it an invaluable asset for anyone seeking to maximize the potential of their wireless devices. With its compact design, comprehensive feature set, and easy maintenance, the B3&B1&N1&N78 Micro Repeater stands out as a top-tier choice for boosting signal strength and reliability in the digital age.
