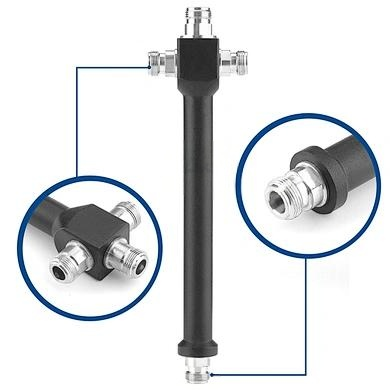

Powering the Future: Why the Cavity Power Divider 3 Way Power Splitter 698-3800MHz N-F 300W is Essential for 5G
n
The rapid expansion of 5G communication networks demands components that deliver exceptional reliability, minimal signal loss, and robust performance under diverse conditions. As infrastructure evolves, the need for precise signal distribution has never been more critical. Enter the Cavity Power Divider 3 Way Power Splitter 698-3800MHz N-F 300W, a standout solution engineered to meet the rigorous demands of modern telecommunications. This advanced device leverages a sophisticated cavity design to minimize interference, ensuring stable and high-quality signal transmission across a wide spectrum. Whether you are upgrading an existing network or constructing a new 5G base station, this power splitter offers the durability and electrical precision required for seamless connectivity.
nn
High-Performance Specifications for Reliable Signal Distribution
n
The Cavity Power Divider 3 Way Power Splitter 698-3800MHz N-F 300W is designed to handle the most challenging environments, from dense urban indoor setups to sprawling outdoor base stations. Its frequency range of 698 to 3800 MHz ensures compatibility with 5G, LTE, and other key communication bands, making it a versatile choice for system integrators and network operators. Below are the detailed technical specifications that define its excellence.
nn
| Parameter | Specification |
|---|---|
| Frequency Range | 698 – 3800 MHz |
| Split Way Options | 2, 3, 4 |
| Voltage Standing Wave Ratio (VSWR) | ≤1.25:1 |
| Insertion Loss (dB) – 2 Way | ≤3.5 |
| Insertion Loss (dB) – 3 Way | ≤5.5 |
| Insertion Loss (dB) – 4 Way | ≤7.0 |
| In-band Ripple (dB) – 2 Way | ≤0.3 |
| In-band Ripple (dB) – 3 Way | ≤0.4 |
| In-band Ripple (dB) – 4 Way | ≤0.5 |
| Average Power (W) | 200 / 300 / 500 |
| 3rd Order IMD (dBc) | ≤-155 @ 2x43dBm (2/3 Way), ≤-150 @ 2x43dBm (4 Way) |
| Impedance (Ω) | 50 |
| Connector Type | N-Female |
| Operating Temperature (°C) | -20 to +55 |
| Application | Indoor or Outdoor |
| Finish | Black Plated |
nn
Key Advantages for 5G Infrastructure
n
The Cavity Power Divider 3 Way Power Splitter 698-3800MHz N-F 300W offers more than just raw numbers. Its cavity-based design significantly reduces signal interference, ensuring that each output port receives balanced, clean power. With a maximum average power of 300W, it can handle high-power inputs typical in 5G deployments, while the N-Type female connector guarantees robust, low-loss connections that resist corrosion and wear. The black-plated finish adds both aesthetic appeal and long-term durability against harsh weather conditions, making it suitable for indoor and outdoor installations alike.
nn
Versatile Applications in Modern Networks
n
System integrators and communication operators alike will find the Cavity Power Divider 3 Way Power Splitter 698-3800MHz N-F 300W indispensable. In 5G base station construction, it ensures efficient signal distribution across multiple antennas, reducing network blind spots and enhancing coverage uniformity. For indoor distribution systems (DAS), it guarantees consistent signal strength in offices, malls, and stadiums. The wide operating temperature range of -20°C to +55°C and corrosion-resistant finish make it a reliable choice for outdoor towers and rooftop installations. Whether you are building a dense urban network or a rural coverage solution, this power splitter delivers the performance and longevity needed to keep your 5G network running smoothly.
nn
Conclusion: Your Reliable Partner in 5G Communication
n
In the fast-paced world of 5G, every component matters. The Cavity Power Divider 3 Way Power Splitter 698-3800MHz N-F 300W stands out as a high-performance, versatile solution that meets the strictest demands of signal distribution. With its advanced cavity technology, wide frequency coverage, robust power handling, and durable construction, it ensures that your network maintains peak performance in any environment. From initial deployment to long-term operation, this power divider is the cornerstone of reliable 5G communication, helping you build the high-speed, stable networks of tomorrow.
