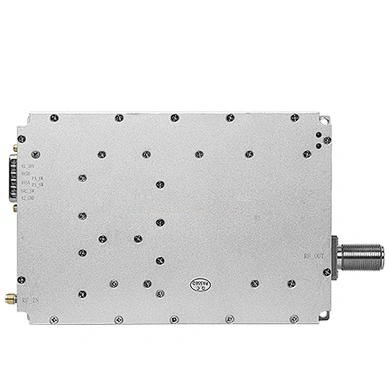

Unleashing Performance: The Wide Band RF Power Amplifier 500-2500MHz 100W Power Amplifier Module
nn
In the demanding world of radio frequency (RF) engineering, finding a single amplification solution that covers a broad spectrum without sacrificing power is a rare achievement. The Wide Band RF Power Amplifier 500-2500MHz 100W Power Amplifier Module is a custom Wideband RF Amplifier designed to meet this exact challenge. Operating across the expansive 500 – 2500MHz frequency band, this module belongs to the elite class of 500-2500MHz RF Power Amplifier solutions, making it incredibly versatile for a wide range of applications, from communications and jamming systems to test instrumentation. This powerful unit delivers a robust 100W RF Amplifier Module performance, ensuring that your signal remains strong and clear across its entire operational range.
nn
What truly sets this module apart is its exceptional power amplification capability. As a Wideband Power Amplifier 50dB Gain product, it provides a staggering gain of 50±1.0dB, boosting even modest input signals to a powerful output. The controllable output power reaches 100W, with a maximum output power of 50±1dBm. This combination of high gain and broad bandwidth eliminates the need for multiple, frequency-specific amplifiers, simplifying system design and reducing overall footprint. The in-band fluctuation is tightly controlled at ±2dB, ensuring consistent performance across the entire spectrum, while the input and output voltage VSWR are both ≤1.50, guaranteeing stable signal transmission and minimizing reflections that can degrade system efficiency.
nn
Technical Specifications and Performance Data
nn
To fully appreciate the capabilities of this robust module, reviewing its detailed performance parameters is essential. The following table outlines the key specifications, test conditions, and operational requirements of the Wide Band RF Power Amplifier 500-2500MHz 100W Power Amplifier Module.
nn
| Parameter | Specification | Remarks / Test Conditions |
|---|---|---|
| Frequency Range | 500 – 2500 MHz | Full band operation |
| Operating Voltage | 32 V | Nominal supply voltage |
| Maximum Output Power | 50 ± 1 dBm | 100W controllable output |
| Operating Current | ≤ 12 A | At full power output |
| Gain | 50 ± 1.0 dB | Small signal gain |
| In-Band Fluctuation | ± 2 dB (peak) | Across full frequency range |
| Maximum Allowable Input Power | ≥ +10 dBm | Duration 1 minute without damage |
| Input Voltage VSWR | ≤ 1.50 | With +28V applied, standard network output -10dBm |
| Output Voltage VSWR | ≤ 1.50 | Powered, dual directional coupler test |
| High & Low Temperature Test | -10°C to +55°C | Low temperature start-up, monitoring normal |
| Gain Stability | ± 1.5 dB @ -10°C ~ +55°C | Over temperature range |
| Power Stability | ± 1.5 dB @ -10°C ~ +55°C | Over temperature range |
| Power Supply Requirement | ≥ 8 A @ +30 Vdc | Continuous wave output 100W |
| RF Output Connector | N-F | Standard N-Female connector |
| Module Dimension | 170 x 94 x 26 mm | Compact form factor |
nn
Power Supply and Control Interface (7W2 Connector)
nn
The module uses a robust 7W2 power supply and control interface, which combines both power and logic signals for easy integration. Understanding this pinout is crucial for proper operation and system monitoring.
nn
| Pin / Signal | Function | Details |
|---|---|---|
| A1: VCC | Power Supply Input | +28V DC |
| A2: GND | Ground | Power and signal return |
| 1: TEMP_AL | Temperature Detection | Temperature alarm, voltage value (AD) |
| 2: RUN | Forward Power Detection | Forward power detection, voltage value (AD) |
| 3: VSWR_AL | Standing Wave Alarm | High level alarm, low level cancellation |
| 4: PA_EN | Enable Switch | High level 3V~5V = ON, low level = OFF |
| 5: PA_ADJ | Power Regulation Input | 0~5V voltage; 0V = max attenuation, 5V = no attenuation |
nn
Protection and Monitoring Features
nn
Reliability is a cornerstone of this Wide Band RF Power Amplifier 500-2500MHz 100W Power Amplifier Module. It is equipped with multiple protection circuits to safeguard the amplifier and the connected system. These include temperature compensation, over-temperature protection, and standing wave protection. The module features intuitive LED indicators on its front panel for real-time status monitoring:
nn
- n
- POWER: Power supply indicator
- RUN: Power operation indication (active when amplifying)
- VSWR: Standing wave warning indication (alerts to high SWR conditions)
n
n
n
nn
These features, combined with the robust N-F RF output connector and compact dimensions of 1709426mm, make this module an ideal choice for integrators and system designers who require a high-power, broadband solution with built-in intelligence and protection.
nn
Conclusion: The Ultimate Wideband Power Amplifier Solution
nn
In conclusion, the Wide Band RF Power Amplifier 500-2500MHz 100W Power Amplifier Module represents a significant advancement in wideband amplification technology. Its ability to deliver 100W of controllable power across a 500-2500MHz frequency range, coupled with a remarkable 50dB gain, makes it a versatile and powerful tool for any RF professional. The integration of temperature detection, power detection, and comprehensive protection features within a compact, well-defined package (1709426mm) ensures both high performance and operational longevity. Whether used in defense, telecommunications, or test and measurement, this 500-2500MHz RF Power Amplifier provides the reliability, power, and broad frequency coverage demanded by modern applications. It is, without a doubt, a superior choice for anyone seeking a custom-grade, high-performance Wide Band RF Power Amplifier 500-2500MHz 100W Power Amplifier Module.
