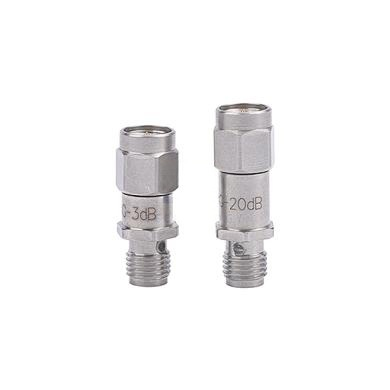

SMA Connector 2W Coaxial Fixed RF Attenuator: Precision and Reliability for High-Frequency Applications
nnWhen working with RF systems, precision and signal integrity are non-negotiable. The SMA Connector 2W Coaxial Fixed RF Attenuator is a purpose-built component designed to deliver consistent attenuation across a broad frequency range, from DC to 18 GHz. Whether you are calibrating test equipment, balancing signal levels in a communications system, or protecting sensitive receiver inputs, this attenuator offers the robustness and electrical performance required for demanding environments. Its compact SMA interface, built to IEC61169-35 standards, ensures seamless connectivity with a wide variety of coaxial systems, making it a staple in laboratories, broadcast stations, and wireless infrastructure.nn
Key Specifications of the SMA Connector 2W Coaxial Fixed RF Attenuator
nn
Electrical Performance and Frequency Range
nnThe attenuator is designed with a nominal impedance of 50Ω, matching the standard for most RF and microwave systems. It operates from DC to 18 GHz, making it suitable for both low-frequency and high-speed digital or analog signals. Low insertion loss and a voltage standing wave ratio (VSWR) of ≤1.25 ensure that signal reflections are minimized, preserving the integrity of your transmission line.nn
Standard Attenuation Values and Accuracy
nnAvailable in a wide selection of standard dB values—including 0 through 10, 12, 15, 20, 30, and 40 dB—this fixed attenuator provides flexible options for signal level adjustments. Each value comes with a specified tolerance to ensure reliable performance across the frequency range.nn
Mechanical and Environmental Durability
nnBuilt to withstand challenging conditions, the SMA Connector 2W Coaxial Fixed RF Attenuator operates over a temperature range of -20°C to +85°C. Its robust construction uses passivated stainless steel for the body, beryllium copper with gold plating for the center contact, and PTFE dielectric material. These materials not only offer excellent electrical conductivity but also resist corrosion and mechanical wear, ensuring long-term reliability in both laboratory and field settings.nn
Technical Data Table
nn
| Parameter | Specification |
|---|---|
| Applicable Standards | Interface per IEC61169-35 |
| Nominal Impedance | 50 Ω |
| Frequency Range | DC to 18 GHz |
| VSWR | ≤1.25 |
| Standard dB Values | 0–10, 12, 15, 20, 30, 40 dB |
| Attenuation Accuracy (0–10 dB) | ±0.5 dB |
| Attenuation Accuracy (12, 15, 20 dB) | ±0.7 dB |
| Attenuation Accuracy (30 dB) | ±0.9 dB |
| Operating Temperature Range | -20°C to +85°C |
| Center Contact Material | Beryllium bronze, Gold plated |
| Body Material | Passivated Stainless Steel |
| Dielectric Material | PTFE |
nn
Applications and Benefits in Modern RF Systems
nn
Signal Conditioning and Protection
nnIn any RF chain, maintaining optimal signal levels is critical. The SMA Connector 2W Coaxial Fixed RF Attenuator allows engineers to precisely reduce signal power without introducing distortion or noise. This is particularly useful when matching the output of a high-power amplifier to a sensitive receiver or when performing impedance matching in a test setup. With a power handling capacity of up to 2 watts, it is well-suited for moderate power applications in both continuous and intermittent use.nn
Versatility Across Industries
nnFrom telecommunications and aerospace to automotive radar and medical imaging, this attenuator finds use in a wide array of high-frequency systems. Its compliance with IEC61169-35 ensures that it can be integrated into both legacy and modern equipment without compatibility issues. The availability of multiple dB values—from a minimal 0 dB (through) to a substantial 40 dB—gives designers the flexibility to tailor signal levels to exact requirements.nn
Conclusion: Why the SMA Connector 2W Coaxial Fixed RF Attenuator Stands Out
nnWhen precision, durability, and broad frequency coverage are required, the SMA Connector 2W Coaxial Fixed RF Attenuator delivers consistent performance that professionals trust. Its adherence to international standards, wide range of standard attenuation values, and all-metal rugged construction make it a reliable choice for both prototyping and production environments. Whether you are fine-tuning a laboratory experiment or deploying a field-tested communications link, this attenuator ensures that your signal path remains accurate and stable from DC through 18 GHz. By incorporating this component into your design, you invest in long-term signal integrity and system reliability.
