Introduction

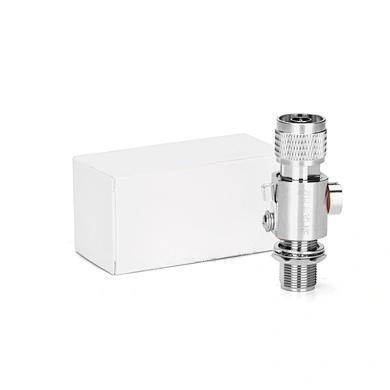

nWhen safeguarding sensitive RF communication systems, a reliable surge protector is non-negotiable. The RF Surge Protector model MOP-LA-3G-NF offers a robust solution for protecting base stations, outdoor RF equipment, and other critical installations from damaging lightning surges. Designed with an N female-to-N female interface, this device ensures seamless integration into existing coaxial lines while delivering exceptional electrical performance. Understanding its specifications and capabilities is essential for selecting the right protection for your network.nn
Key Features of the RF Surge Protector
nThis surge protector is engineered to provide low-loss, high-stability signal transmission across a broad frequency range. Its construction and electrical parameters make it a reliable choice for demanding environments.nn
Electrical Performance and Surge Protection
nThe device’s electrical specifications are critical for maintaining signal integrity while offering robust protection. The following table outlines its primary electrical characteristics:nn| Parameter | Specification |n| — | — |n| Characteristic Impedance | 50Ω |n| Operating Frequency Range | 0–3 GHz |n| VSWR | ≤ 1.2 |n| Return Loss | ≤ -26.4 dB |n| Insulation Resistance | ≥ 5000 MΩ |n| Dielectric Withstand Voltage | ≥ 4000 Vrms (50 Hz, at sea level) |n| Maximum Surge Current | At least 10 times, 20 kA (8/20 μs waveform) |nnThese specifications ensure that the protector minimizes signal reflection and loss while effectively diverting surge energy away from connected equipment.nn
Mechanical and Environmental Specifications
nThe build quality of the RF Surge Protector directly impacts its longevity and performance in outdoor or harsh conditions. Below are the material and environmental details:nn| Component | Material | Plating |n| — | — | — |n| Body | Brass | Nickel |n| Contacts | Phosphor bronze | Gold or silver |n| Insulator | PTFE | – |n| O-ring Seal | 6146 silastic | – |n| Operating Temperature Range | -40°C to +85°C | – |nnThe use of corrosion-resistant materials and a robust seal ensures reliable operation across extreme temperatures and weather conditions.nn
Why Choose This RF Surge Protector?
nThe MOP-LA-3G-NF is ideal for applications requiring consistent performance and high surge tolerance. Its N female connectors provide easy installation in standard RF paths, while the 0–3 GHz bandwidth covers many common communication frequencies. The ability to withstand multiple 20 kA surges makes it suitable for high-risk lightning zones, protecting valuable equipment from repeated events.nn
Conclusion
nIncorporating a high-quality RF Surge Protector like the MOP-LA-3G-NF is a cost-effective measure to prevent downtime and equipment damage. With its low VSWR, robust surge capacity, and durable construction, it meets the lightning protection requirements of base stations and outdoor RF systems. Whether for new installations or upgrading existing networks, this protector delivers the reliability and performance needed for continuous operation.
