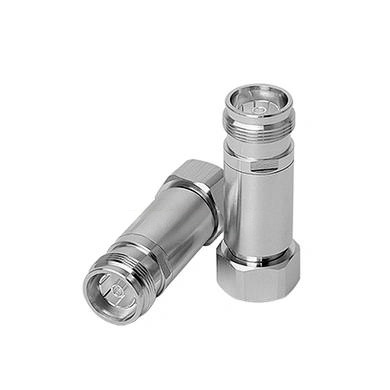

Understanding the MOP-AT-4G Attenuator: A Technical Deep Dive
nnIn the world of RF and telecommunications, precision and reliability are paramount. The MOP-AT-4G-XW-X-MM/MF attenuator is a robust component designed to manage signal power across a wide range of applications. Whether you’re fine-tuning a cellular network, testing equipment, or deploying distributed antenna systems (DAS), this device ensures consistent performance. Let’s explore its key features and specifications in detail.nn
Critical Electrical Specifications for Optimal Performance
nnThe MOP-AT-4G attenuator is engineered to handle demanding environments. Its electrical parameters guarantee minimal signal distortion while maintaining high linearity. Below are the core specifications presented in a structured format for clarity.nn
| Parameter | Specification / Value |
|---|---|
| Model Number | MOP-AT-4G-XW-X-MM/MF |
| Product Name | Attenuator |
| Power Handling Capacity | 2W / 5W |
| Frequency Range | DC – 4GHz |
| Attenuation Value (dB) | 3 / 6 / 10 / 15 / 20 / 30 / 40 |
| In-band Ripple (dB) | ≤0.3 / ≤0.5 / ≤0.7 / ≤0.8 / ≤1.0 / ≤1.2 |
| Impedance (Ω) | 50 |
| Voltage Standing Wave Ratio (VSWR) | ≤1.2:1 |
| Passive Intermodulation (PIM3) (dBc) | ≤-120 @ 2x33dBm / ≤-105 @ 2x43dBm |
| Passive Intermodulation (PIM5) (dBc) | ≤-145 @ 2x33dBm / ≤-120 @ 2x43dBm |
| Connector Type | 4.3-10 Male – Female |
| Operating Temperature (°C) | -20 to +55 |
| Humidity | ≤95% |
nn
Why the MOP-AT-4G Stands Out in RF Applications
nnThe core of this attenuator’s value lies in its versatility. With a DC to 4 GHz frequency range, it supports a broad spectrum of applications, from legacy systems to modern 4G LTE networks. The low in-band ripple—as tight as ≤0.3 dB—ensures that signal integrity is preserved across the entire bandwidth, which is crucial for high-data-rate communications. Additionally, the passive intermodulation (PIM) performance is exceptional. At high power levels (2x43dBm), the PIM3 rating of ≤-105 dBc and PIM5 of ≤-120 dBc minimize interference, making this attenuator ideal for multi-carrier environments where even minor distortions can disrupt service.nn
Installation and Environmental Considerations
nnDesigned for indoor or protected outdoor use, the MOP-AT-4G operates reliably in temperatures from -20°C to +55°C and in humidity up to 95%. The 4.3-10 connector interface, available in male-to-female configuration, provides a compact and robust connection that reduces torque loss and improves reliability. Its power handling options—2W or 5W—allow you to choose the right model for your specific signal strength requirements, avoiding unnecessary heat buildup while ensuring adequate headroom.nn
Conclusion: The Attenuator for Demanding Networks
nnWhen selecting a component for your RF chain, the attenuator must deliver consistent performance without introducing noise or signal degradation. The MOP-AT-4G-XW-X-MM/MF meets these demands with its tight VSWR, low ripple, and excellent PIM characteristics. Whether you are deploying a new base station or upgrading an existing test setup, this attenuator provides the reliability and precision required for modern telecommunications. Always verify your power and connector needs before purchase, but rest assured that this model offers a solid foundation for your network’s signal conditioning.
