Unmatched Precision with the MOP-DFA-3060-NF Direction Finding Antenna
nnIn the demanding field of signal intelligence and spectrum monitoring, the ability to precisely locate a transmission source is paramount. The MOP-DFA-3060-NF direction finding antenna is engineered to meet these rigorous requirements, offering a powerful combination of wideband coverage, exceptional sensitivity, and robust construction. This advanced antenna system delivers reliable Angle of Arrival (AoA) estimation across a critical frequency span, making it an indispensable tool for both mobile and fixed-site surveillance operations. Its design is a masterclass in balancing the need for high-accuracy DF capabilities with the practical demands of field deployment.nn
Broad Frequency Coverage and Superior Sensitivity
nThe MOP-DFA-3060-NF direction finding antenna operates from 300 MHz to 6 GHz, covering essential bands for modern communications, including cellular, Wi-Fi, and various tactical radio frequencies. A key innovation is the integration of an active monitoring antenna that provides high-sensitivity, omnidirectional coverage along the same axis as the DF array. This clever design eliminates interference with the primary DF elements, allowing simultaneous monitoring and direction finding without performance trade-offs. The use of full-size elements across all bands ensures exceptional DF sensitivity, translating to a remarkable ultimate angular resolution of well under 1° for strong signals across most of the frequency range.nn
Robust Engineering for Accurate Bearings
nAccuracy is the cornerstone of effective direction finding, and the MOP-DFA-3060-NF delivers. The dipole elements are carefully optimized for each frequency range, providing excellent cross-polarisation rejection. This ensures that the antenna remains accurate even when dealing with signals arriving from up to 15° above or below the horizon. The result is a bearing accuracy of 1° RMS (for f > 300 MHz), a figure that remains consistent thanks to the correlative interferometer method employed by the 10-element circular arrays. Each channel antenna is tuned for both sensitivity and directivity, guaranteeing that the direction finding antenna consistently provides the high-quality data needed for precise geolocation.nn
Technical Specifications of the MOP-DFA-3060-NF Direction Finding Antenna
nn
| Parameter | Specification | Notes / Additional Details |
|---|---|---|
| Frequency Range | 0.3 – 6 GHz | Full coverage across all sub-bands |
| DF Method | Correlative Interferometer | 10-element circular arrays |
| DF Accuracy | 1° RMS | For f > 300 MHz |
| Linearity IP3 | +20 dBm (300 MHz – 2.7 GHz) +17 dBm (2.7 GHz – 6 GHz) |
High dynamic range for precise measurements |
| Azimuth Pattern (Ripple) of Omnidirectional Reference Antenna Element | f ≤ 1.2 GHz: f ≤ 1.8 GHz: f ≤ 3 GHz: |
Excellent omnidirectionality across bands |
| Impedance | 50 Ω | Standard for RF equipment |
| Output Return Loss / VSWR | 10 dB / 2.0 | Minimizes signal reflection |
| Compass | Embedded electronic compass | Azimuth uncertainty managed digitally |
| GNSS | Embedded receiver and antenna | Enables autonomous geo-referencing |

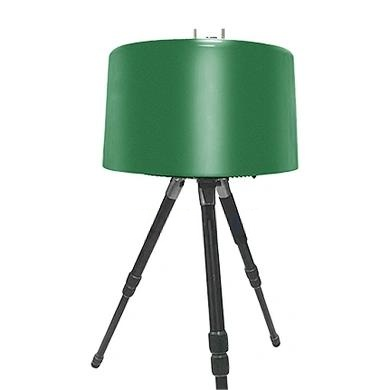

| Installation | On tripod | Quick field deployment |
| Connector | SMA or N/F | Versatile for various cabling needs |
| Environmental: Storage Temperature | – 40 °C to + 85 °C | Extreme cold tolerance |
| Environmental: Operating Temperature | – 40 °C to + 65 °C | Reliable in harsh climates |
| Environmental: Relative Humidity | 95% / 240 h at + 30 °C | Resistant to prolonged high humidity |
| Environmental: Salt Resistance | 2 cycles 24h salt / drying at + 35 °C | Corrosion-resistant for coastal use |
| Ingress Protection | IP 65 | Dust-tight and protected against water jets |
| Radome Color | Olive Green | Low visibility for tactical operations |
| Basic Material | Aluminum | Lightweight yet durable |
nn
Conclusion: The Ultimate Tool for Precision Geolocation
nThe MOP-DFA-3060-NF direction finding antenna stands as a testament to advanced engineering in the field of signal interception and localization. Its ability to cover from 300 MHz to 6 GHz with sub-1° angular resolution, coupled with an integrated active monitoring system, sets a new standard for performance. The combination of a correlative interferometer, full-size elements, and robust environmental protection (IP 65, wide temperature range) ensures that this direction finding antenna delivers consistent, actionable intelligence in the most challenging environments. Whether deployed for spectrum management, regulatory enforcement, or defense applications, the MOP-DFA-3060-NF provides the accuracy, sensitivity, and durability required for mission-critical direction finding operations.
