MOP-CN-DM-CF12 Connector: High-Performance RF Solution for Mission-Critical Applications
nn

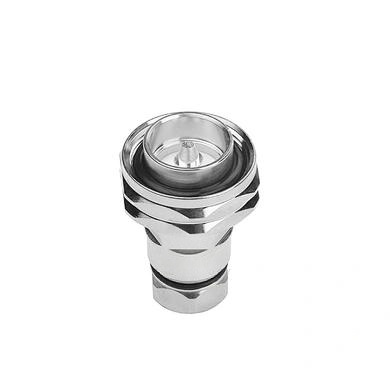

When it comes to maintaining signal integrity in demanding RF environments, the MOP-CN-DM-CF12 stands out as a robust and reliable 7/16 straight male connector. Designed specifically for 1/2” flexible RF cables, this connector delivers exceptional performance across a wide frequency range. Whether you are deploying telecom infrastructure, testing equipment, or building out 5G networks, the MOP-CN-DM-CF12 ensures minimal signal loss and superior durability. But what exactly makes this connector a top choice for engineers and system integrators? Let’s dive into the details that set it apart.
nn
Product Overview and Core Specifications
nn
The MOP-CN-DM-CF12 is a precision-engineered connector that bridges the gap between high-frequency performance and mechanical resilience. Its 7/16 interface is a standard in the industry, offering low passive intermodulation (PIM) and excellent handling of high power levels. Below, you will find the comprehensive technical specifications organized for clarity and comparison.
nn
| Specification Category | Parameter | Value / Detail |
|---|---|---|
| Interface | Model | MOP-CN-DM-CF12 |
| Cable Compatibility | 1/2” Flexible RF Cable | |
| Material & Plating | Inner Conductor Pin | Brass / Silver Plating |
| Inner Conductor Socket | Tin-bronze / Silver Plating | |
| Body & Outer Conductor | Brass / Trimertal Plating | |
| Insulator | PTFE | |
| Nut & Gasket | Brass (Nickel Plated) / Silicon Rubber | |
| Electrical Characteristics | Impedance | 50 Ohm |
| Frequency Range | DC ~ 6 GHz | |
| Insulation Resistance | ≥ 10,000 MΩ | |
| Center Contact Resistance | ≤ 1.5 mΩ | |
| Outer Contact Resistance | ≤ 1.5 mΩ | |
| Dielectric Strength | 2500 V rms | |
| Working Voltage | 1400 V rms | |
| Insertion Loss | ≤ 0.10 dB | |
| Performance Metrics | VSWR | ≤ 1.10 |
| PIM (2×20W) | ≤ -160 dBc | |
| Environmental & Mechanical | Durability (Matings) | ≥ 500 cycles |
| Thermal Shock | MIL-STD-202F, Method 107G, Condition B | |
| Vibration | MIL-STD-202, Method 204, Condition B | |
| Temperature Range | -65°C ~ +165°C | |
| Sealing Class | IP68 (24H / 1M / 20°C) | |
| Compliance | RoHS Compliant | |
nn
Material Excellence and Plating Durability
nn
The choice of materials in the MOP-CN-DM-CF12 directly impacts its long-term reliability and electrical performance. The inner conductor pin is crafted from brass with a silver plating, ensuring excellent conductivity while resisting oxidation. The socket, made from tin-bronze with silver plating, provides a secure fit and low contact resistance. The body and outer conductor utilize brass with a unique trimertal plating, which offers superior corrosion resistance and supports consistent grounding over thousands of mating cycles. PTFE insulators ensure stable dielectric properties across the entire temperature range, while the silicone rubber gasket contributes to the IP68-rated sealing, protecting against moisture and dust ingress.
nn
Electrical Performance: Precision Where It Matters
nn
For RF engineers, the key metrics are insertion loss, VSWR, and PIM. The MOP-CN-DM-CF12 delivers an insertion loss of ≤0.10 dB, which minimizes signal degradation even in long cable runs. With a VSWR of ≤1.10, reflections are kept to a minimum, ensuring maximum power transfer. The PIM performance of ≤ -160 dBc (tested at 2×20W) makes this connector ideal for high-sensitivity applications like base station antennas and distributed antenna systems (DAS). These characteristics are critical for maintaining clean signals in both transmission and reception paths.
nn
Environmental Resilience and Mechanical Robustness
nn
The MOP-CN-DM-CF12 is built to withstand harsh conditions. Its durability rating of ≥500 mating cycles ensures reliable connections in field deployments where connectors are frequently engaged and disengaged. The connector meets MIL-STD-202F for thermal shock and MIL-STD-202 for vibration, making it suitable for use in outdoor enclosures, towers, and mobile platforms. The wide temperature range from -65°C to +165°C covers extreme climates from arctic installations to high-temperature equipment rooms. The IP68 sealing class guarantees protection against prolonged immersion in water up to 1 meter for 24 hours, ensuring uninterrupted operation even during heavy rain or flooding.
nn
Conclusion: Why the MOP-CN-DM-CF12 Is a Wise Investment
nn
From telecom networks to test labs, the MOP-CN-DM-CF12 delivers consistent, high-quality RF performance. Its thoughtful material selection, rigorous testing to military standards, and low PIM characteristics make it a standout choice for professionals who cannot compromise on signal integrity. By combining a robust mechanical design with excellent electrical specs, this connector meets the demands of modern communications systems. Whether you are upgrading infrastructure or building a new deployment, the MOP-CN-DM-CF12 provides the reliability and performance your projects require.
