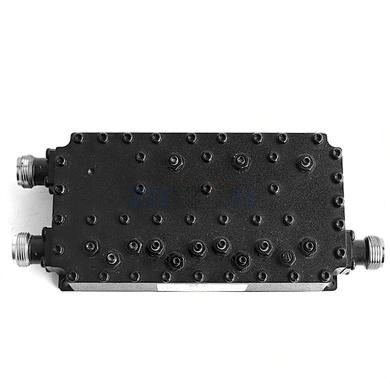

Introducing the Two-Band Signal Combiner with N-Female Connector: Your Solution for Superior Dual-Band Fusion
In the rapidly evolving landscape of modern telecommunications, the ability to seamlessly integrate and transmit signals across multiple frequency bands is paramount. Operators and engineers alike demand components that not only meet rigorous technical standards but also deliver unwavering reliability in diverse environments. Enter the Two-Band Signal Combiner with N-Female Connector—a cutting-edge device engineered to revolutionize dual-band signal processing. This powerhouse component stands as a testament to innovation, offering a robust solution for combining signals from distinct frequency ranges with exceptional precision and minimal loss. Whether you are upgrading a cellular network, enhancing indoor coverage, or deploying a new wireless infrastructure, understanding the capabilities of this combiner is the first step toward achieving optimal performance.
Technical Excellence and Core Specifications of the Two-Band Signal Combiner with N-Female Connector
The Two-Band Signal Combiner with N-Female Connector is built upon a foundation of advanced engineering, designed to handle the demands of high-traffic communication systems. Its dual-band architecture effectively integrates signals from the 698-960 MHz and 1710-2170 MHz ranges, covering critical bands for LTE, 5G, and legacy technologies. The device excels in minimizing signal degradation, boasting an insertion loss of less than 0.3 dB. This exceptionally low loss ensures that the power of your transmitted signals is preserved, reducing the need for additional amplification and enhancing overall system efficiency.
Equally impressive is the combiner’s isolation capability, which exceeds 45 dB. This high isolation rate significantly curbs interference between the two frequency bands, safeguarding signal integrity and preventing cross-talk that could degrade communication quality. The voltage standing wave ratio (VSWR) is maintained at ≤1.25, a figure that reflects excellent impedance matching and reduces signal reflections. Furthermore, the intermodulation products are tightly controlled at ≤-153 dBc (when tested with two tones at 2×43 dBm), guaranteeing that the combined output remains clean and free from spurious distortions.
To handle robust power scenarios, the Two-Band Signal Combiner with N-Female Connector supports a maximum input power of 200 watts. This high power-handling capability makes it suitable for both low-power indoor deployments and high-power outdoor base station applications. The device’s technical specifications are meticulously engineered to ensure stable and pure signal transmission, making it an indispensable asset for any network architect.
Design, Durability, and Environmental Resilience
Beyond its electrical performance, the Two-Band Signal Combiner with N-Female Connector is designed for practicality and longevity. The inclusion of an N-Female connector is a deliberate choice, offering superior electrical conductivity and mechanical robustness. This connector type is widely recognized in the industry for its reliability in repeated mate/unmate cycles and its ability to maintain a secure, low-loss connection even under stress. The device’s compact form factor—measuring just 250×105×55 mm and weighing a mere 650 grams—facilitates easy installation in tight spaces, such as equipment cabinets or outdoor enclosures.
Durability is a cornerstone of this combiner’s design. It operates flawlessly across a wide temperature range, from -40°C to +65°C, and can withstand relative humidity levels of 0% to 95%, ensuring consistent performance in both freezing climates and tropical environments. With an IP65 ingress protection rating, the Two-Band Signal Combiner with N-Female Connector is fully sealed against dust and water jets, making it ideal for outdoor deployment without the need for additional weatherproofing. The sleek black housing (color: black) adds a professional aesthetic while resisting corrosion and physical wear.
| Parameter | Specification |
|---|---|
| Name | Dual-Band Combiner |
| Frequency Range (MHz) | 698-960 / 1710-2170 |
| Insertion Loss (dB) | <0.3 |
| Isolation (dB) | >45 |
| VSWR | ≤1.25 |
| Intermodulation Products (dBm) | ≤-153 dBc (with 2 x 43 dBm) |
| Maximum Input Power (W) | 200 |
| Operating Temperature (°C) | -40 to +65 |
| Relative Humidity (%) | 0 to 95 |
| Impedance (Ω) | 50 |
| Size (mm) | 250 x 105 x 55 |
| Weight (g) | 650 |
| Connector Type | N Female |
| Ingress Protection | IP65 |
| Color | Black |
Versatile Applications of the Two-Band Signal Combiner with N-Female Connector
The Two-Band Signal Combiner with N-Female Connector proves its mettle across a wide array of deployment scenarios. In communication base stations, it optimizes signal integration by merging transmissions from different carriers or frequency bands into a single feed line, reducing tower clutter and improving spectral efficiency. For large venues like stadiums, convention centers, and airports, the combiner enables robust indoor signal coverage by consolidating signals from distributed antenna systems, ensuring seamless connectivity for thousands of users. In commercial buildings, it simplifies wireless network construction by combining signals from multiple bandwidths, streamlining installation and reducing costs. Its high isolation and low intermodulation distortion make it particularly valuable in dense urban environments where interference is a pressing concern. Whether used for public safety networks, private LTE systems, or carrier-grade 5G rollouts, the Two-Band Signal Combiner with N-Female Connector delivers consistent, high-performance results.
Conclusion: Unlock the Full Potential of Your Network with the Two-Band Signal Combiner with N-Female Connector
In summary, the Two-Band Signal Combiner with N-Female Connector is far more than a passive component—it is a strategic asset for any communication system. Its pioneering dual-band signal fusion capability, combined with ultra-low insertion loss, superior isolation, and robust environmental resistance, makes it the ideal choice for engineers seeking reliability and efficiency. The device’s compact and durable design, paired with its N-Female connectivity, ensures effortless integration into existing infrastructures, while its adherence to stringent specifications guarantees pure, uninterrupted signal transmission. From boosting base station performance to enabling flawless indoor coverage, this combiner empowers you to build a superior communication network. Invest in the Two-Band Signal Combiner with N-Female Connector today, and experience the difference that precision engineering makes in keeping your signals clear, strong, and unimpeded.
