Introduction: Engineered for High-Performance RF Connections
nn

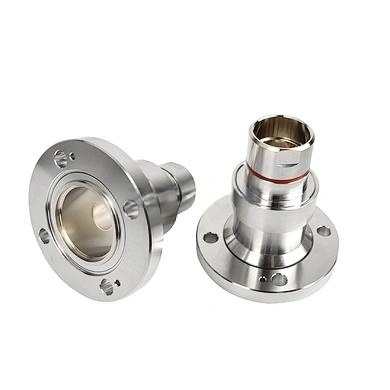

In the demanding world of radio frequency (RF) and telecommunications, the quality of your connector can make or break your entire system. Signal integrity, power handling, and long-term reliability are non-negotiable, especially in broadcast, wireless infrastructure, and industrial applications. Enter the Model No. MOP-EIA158-CF78, a robust and meticulously engineered coaxial connector designed to bridge 1-5/8″ EIA flange interfaces with 7/8″ feeder cable. This connector is not just a passive component; it is a critical link that ensures minimal signal loss, superior voltage handling, and exceptional mechanical endurance in harsh environments. Whether you are upgrading a cell tower, building out a DAS network, or maintaining critical communication systems, understanding the specifications and capabilities of this connector is essential for optimal performance. This article delves deep into the electrical, mechanical, and environmental characteristics of the MOP-EIA158-CF78, highlighting why it stands out in the competitive landscape of RF connectors.
nn
Electrical Specifications: The Core of Signal Integrity
nn
The MOP-EIA158-CF78 is built to deliver consistent, high-quality signal transmission across a broad frequency spectrum. Its electrical design prioritizes low Voltage Standing Wave Ratio (VSWR), high dielectric strength, and efficient power handling, making it suitable for both high-power and sensitive signal applications.
nn
| Parameter | Specification/Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | DC – 3 GHz |
| VSWR (DC-1000 MHz) | ≤ 1.07 |
| Dielectric Withstanding Voltage | ≥ 6000 V RMS, 50 Hz, at sea level |
| Working Voltage (Max.) | ≤ 2100 V RMS, 50 Hz, at sea level |
| Dielectric Resistance | ≥ 5000 MΩ |
| Average Power (@900 MHz) | 3.4 KW |
| Peak Power (Maximum) | 90 KW |
| Contact Resistance – Center Contact | ≤ 1.5 mΩ |
| Contact Resistance – Outer Contact | ≤ 1.5 mΩ |
| Mating Cycles (Mechanical Durability) | ≥ 100 |
nn
Why These Specs Matter for Your RF System
n
The 50-ohm impedance ensures compatibility with the vast majority of RF equipment and cables, while the exceptionally low VSWR of 1.07 across the critical DC-1 GHz band guarantees minimal reflected power, which translates directly to maximum power transfer and reduced system heating. The high dielectric withstanding and working voltages make this connector ideal for high-power amplifiers and transmitters, providing a crucial safety margin. Similarly, the low contact resistance—just 1.5 milliohms for both center and outer conductors—minimizes insertion loss and prevents hot spots that could lead to connector failure over time. For systems operating at 900 MHz or similar frequencies, the ability to handle 3.4 kW of average power is a testament to its robust design.
nn
Mechanical and Material Construction: Built to Last
nn
Beyond electrical performance, the physical integrity of the MOP-EIA158-CF78 is engineered for repeated use and environmental resilience. The choice of materials and plating directly impacts durability, corrosion resistance, and long-term signal stability.
nn
| Part Name | Material | Plating |
|---|---|---|
| Body | Brass | Ni (Nickel) |
| Insulator | PTFE (Teflon) | – |
| Center Conductor | Phosphor Bronze | Ag (Silver) |
| Flange Nut | Brass | Ni (Nickel) |
| Gasket | Silicone Rubber | – |
| Hardware Kits | Stainless Steel | – |
nn
Durable Components and Finishes
n
The brass body with nickel plating offers excellent strength and corrosion resistance, making it suitable for both indoor and outdoor installations. The PTFE (Teflon) insulator provides outstanding dielectric properties and thermal stability, ensuring consistent performance even under temperature fluctuations. The center conductor, made from phosphor bronze and silver-plated, ensures low loss and high conductivity, while the silver plating provides a superior RF surface finish. The stainless steel hardware kits—comprising bolts, nuts, lock washers, and flat washers—resist rust and galling, ensuring a secure and repeatable connection over at least 100 mating cycles.
nn
Environmental Resilience and Compliance
nn
RF connectors are often deployed in unforgiving outdoor environments, from desert heat to arctic cold. The MOP-EIA158-CF78 is designed to withstand these extremes while maintaining full functionality.
nn
| Parameter | Specification/Value |
|---|---|
| Operating Temperature Range | -45°C to +85°C |
| Weatherproof Rating | IP67 |
| RoHS Compliant | Yes |
nn
The wide temperature range of -45°C to +85°C ensures reliable performance from the coldest mountaintop installations to the hottest rooftop deployments. The IP67 rating is critical: it guarantees the connector is completely protected against dust ingress and can withstand immersion in water up to 1 meter deep for 30 minutes. This level of weatherproofing is essential for outdoor antennas and tower-mounted equipment where exposure to rain, snow, and condensation is constant. Additionally, full RoHS compliance means the connector is free from hazardous substances, meeting global environmental standards.
nn
Included Accessories and Installation Details
nn
The Model No. MOP-EIA158-CF78 comes complete with essential components for immediate installation. Importantly, each connector includes a coupling element (bullet) for both the 7/8″ and 1-5/8″ EIA interfaces, allowing for a secure and low-loss connection between the two different cable/flange sizes. The hardware kits are thoughtfully provided: for each of the 7/8″ and 1-5/8″ EIA interfaces, the kit includes 3 and 4 pieces respectively of each bolt, nut, lock washer, and flat washer. This ensures that the installer has all necessary fasteners, reducing on-site delays and ensuring a proper, torqued assembly every time.
nn
Conclusion: The MOP-EIA158-CF78 as a Critical System Component
nn
Selecting the right RF connector is a decision that reverberates through the entire lifecycle of your network or broadcast system. The MOP-EIA158-CF78 offers a compelling combination of high-power handling, exceptional signal purity, and rugged mechanical design. Its low VSWR, robust voltage ratings, and IP67 environmental sealing make it a reliable workhorse for demanding applications ranging from cellular infrastructure to UHF broadcasting. By bridging the gap between 7/8″ feeder cable and 1-5/8″ EIA flange interfaces, it provides a crucial transition point without sacrificing performance. When you invest in this connector, you are investing in reduced downtime, consistent signal quality, and a hardware solution engineered to withstand the elements. For critical RF connections where failure is not an option, the MOP-EIA158-CF78 delivers the confidence and reliability that professionals depend on. Ensure your next system build or upgrade benefits from its proven specifications and durable construction, because in RF, every connection matters.
