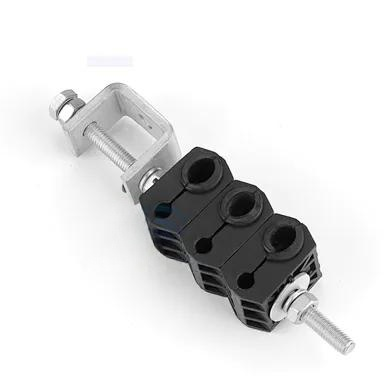

Streamline Your Telecom Infrastructure with the Versatile Fiber & Power Cable Clamp
nnIn the fast-paced world of telecommunications, organization and reliability are paramount. Whether you are managing dense fiber optic networks or securing power lines, the ability to bundle cables efficiently can make or break the success of an installation. Enter the fiber & power cable clamp, a robust solution designed to handle a diverse range of cable diameters with precision and durability. This versatile component is engineered to provide secure, long-lasting cable management in demanding environments, from central offices to outdoor enclosures. By consolidating multiple cables into a single, structured system, it not only enhances airflow and accessibility but also significantly reduces the risk of signal interference or physical damage.nnThe clamp’s thoughtful design begins with its broad compatibility. It accommodates cables ranging from a slim 7 mm up to a maximum of 14 mm (0.27 in to 0.55 in), making it suitable for a wide array of wiring standards. With the capacity to hold up to six cables per clamp, it reduces the need for multiple individual fasteners, simplifying both installation and future maintenance. The included comprehensive hardware kit—comprising an angle adapter, plastic clamp body, threaded rod, nuts, washers, and rubber inserts—ensures that you have everything you need for a secure mount right out of the box.nn
Premium Construction for Industrial-Grade Performance
nnWhen it comes to telecom infrastructure, the materials matter. This clamp is constructed using a hybrid of high-quality components. The metal parts are crafted from Stainless Steel 304, a material known for its excellent corrosion resistance and structural integrity. After fabrication, these components undergo a passivation surface treatment, which further enhances their resistance to oxidation and extends the product’s lifespan. The plastic components are made from a blend of PP (Polypropylene) and PA (Polyamide), providing a tough, UV-resistant housing that can withstand harsh outdoor conditions.nnThe commitment to longevity is clear from the product’s technical credentials. It has successfully passed a rigorous 168-hour salt spray test, confirming its ability to resist rust and degradation in coastal or high-humidity environments. Furthermore, with UV resistance rated at ≥720 hours, the plastic materials will not become brittle or discolor when exposed to prolonged sunlight. This level of protection is critical for installations on building exteriors, utility poles, or rooftop systems.nn
Uncompromising Durability and Environmental Specifications
nnTo ensure performance in extreme climates, the fiber & power cable clamp is rated for an operating temperature range of -40 °C to +85 °C (-40 °F to +185 °F). This wide thermal tolerance makes it a reliable choice for both arctic cold and desert heat, ensuring that the clamp maintains its grip and structural integrity regardless of seasonal shifts. Such robust environmental resilience is a hallmark of professional-grade telecom hardware.nn
Detailed Specifications of the Fiber & Power Cable Clamp
nnThe following table provides a comprehensive overview of the technical parameters and performance characteristics of this cable management solution.nn
| Specification Parameter | Value / Description |
|---|---|
| Product Type | Fiber & Power Cable Clamp |
| Compatible Diameter (Max) | 14 mm | 0.55 in |
| Compatible Diameter (Min) | 7 mm | 0.27 in |
| Included Components | Angle adapter, plastic clamp, threaded rod, nuts, washer, rubber inserts |
| Metal Part Material | Stainless Steel 304 |
| Plastic Part Material | PP (Polypropylene) / PA (Polyamide) |
| Number of Cables per Clamp | 6 |
| Salt Spray Test Duration | 168 hours |
| Surface Treatment | Passivated |
| Warranty | 3 Years |
| Operating Temperature Range | -40 °C to +85 °C (-40 °F to +185 °F) |
| UV Resistance | ≥720 hours |
| OEM Accepted | Yes |
| Primary Application | Telecom cable installation |
nn
Conclusion: The Ultimate Choice for Structured Telecom Cabling
nnChoosing the right hardware is essential for maintaining network uptime and safety. The fiber & power cable clamp stands out as an exceptionally capable solution for modern telecom cable installations. Its combination of stainless steel strength, UV-stabilized plastics, and a wide operating temperature range ensures that your cable bundles remain organized and secure for years to come. From the meticulous 168-hour salt spray test to the generous 3-year warranty, every aspect of this product is designed with the professional installer in mind.nnWhether you are deploying a new fiber-to-the-home network or upgrading existing power infrastructure, this clamp provides the flexibility and resilience required to get the job done right. It simplifies the organization of cables, protects them from environmental stressors, and reduces the time spent on maintenance. For any project that demands high standards of structure and durability, this clamp is an indispensable tool.
