Understanding the MOP-CN-NM-CF78 Connector: A Technical Overview
nn

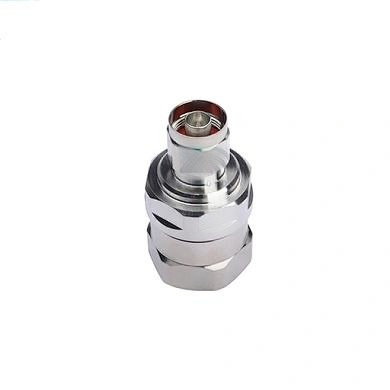

The MOP-CN-NM-CF78 is a high-performance straight male connector designed for use with 7/8” flexible RF cables. This connector is engineered to deliver exceptional signal integrity and reliability in demanding RF applications. Its robust construction and precise electrical characteristics make it an ideal choice for telecommunications, broadcasting, and other wireless infrastructure systems where minimizing signal loss and interference is critical. Whether you are deploying new networks or upgrading existing ones, this connector provides a durable and efficient solution.
nn
At the heart of the MOP-CN-NM-CF78’s design is a focus on maintaining low insertion loss and voltage standing wave ratio (VSWR), ensuring that the transmitted signal remains strong and clear. The use of high-quality materials and advanced plating techniques not only enhances conductivity but also protects against environmental factors such as moisture, temperature extremes, and mechanical stress. This comprehensive design philosophy results in a connector that meets rigorous industry standards while offering long-term reliability.
nn
Key Features and Benefits of the MOP-CN-NM-CF78
nn
The MOP-CN-NM-CF78 connector is built with a straight male interface that simplifies installation and integration into various system configurations. Its compatibility with 7/8” flexible RF cables allows for easy termination and routing, reducing setup time and complexity. Additionally, the connector boasts an impressive sealing class of IP68, meaning it can withstand immersion in water up to 1 meter for 24 hours at 20°C, making it suitable for outdoor and harsh environment deployments.
nn
Another significant advantage is its passive intermodulation (PIM) performance. With a PIM rating of ≤-160dBc at 2x20W, the connector minimizes distortion and interference in multi-carrier systems. This is particularly important for modern wireless networks that rely on clean, reliable signals to support high data throughput and low latency. The connector also meets RoHS compliance, ensuring it is free from hazardous substances.
nn
Material and Plating Specifications
nn
The selection of materials in the MOP-CN-NM-CF78 is critical to its performance and longevity. The inner conductor pin is made from brass with silver plating, providing excellent conductivity and corrosion resistance. The inner conductor socket uses tin-bronze with silver plating, which offers high tensile strength and reliable electrical contact. The body and outer conductor are brass with trimetal plating, combining the benefits of copper, nickel, and other metals for enhanced durability and signal shielding. The insulator is PTFE (Teflon), which has low dielectric loss and high thermal stability, while the gasket is made from silicone rubber for effective sealing. The nut is brass with nickel plating, ensuring secure mating and resistance to wear.
nn
| Component | Material | Plating |
|---|---|---|
| Inner Conductor Pin | Brass | Silver |
| Inner Conductor Socket | Tin-bronze | Silver |
| Body & Outer Conductor | Brass | Trimetal |
| Insulator | PTFE (Teflon) | – |
| Gasket | Silicone Rubber | – |
| Nut | Brass | Nickel |
nn
Electrical Characteristics of the Connector
nn
The electrical performance of the MOP-CN-NM-CF78 is optimized for a wide range of frequencies from DC to 6 GHz, with a characteristic impedance of 50 Ohms. This makes it suitable for standard RF and microwave systems. Key parameters include high insulation resistance of at least 10,000 MΩ, ensuring minimal leakage current. Contact resistance is maintained at ≤1.5 MΩ for both center and outer contacts, which reduces power loss at connection points. The connector can withstand a dielectric strength of 2500V RMS and an operating voltage of 1400V RMS, providing a safety margin for high-power applications. Insertion loss is kept to ≤0.10dB, and VSWR is ≤1.10, reflecting excellent impedance matching and signal transmission efficiency.
nn
| Characteristic | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | DC~6 GHz |
| Insulation Resistance | ≥10,000 MΩ |
| Center Contact Resistance | ≤1.5 MΩ |
| Outer Contact Resistance | ≤1.5 MΩ |
| Dielectric Strength | 2500V RMS |
| Working Voltage | 1400V RMS |
| Insertion Loss | ≤0.10 dB |
| VSWR | ≤1.10 |
| PIM (2x20W) | ≤ -160 dBc |
nn
Environmental and Mechanical Durability
nn
The MOP-CN-NM-CF78 is designed to endure challenging operational conditions. Its mechanical durability supports at least 500 mating cycles, ensuring consistent performance over many installations and maintenance procedures. It undergoes rigorous testing per military standards: the thermal shock test follows MIL-STD-202F Method 107G Test Condition B, while the vibration test adheres to MIL-STD-202 Method 204 Condition B. The connector operates reliably across a wide temperature range from -65°C to +165°C, making it suitable for both cold and hot environments. Combined with its IP68 sealing class (24 hours at 1 meter depth at 20°C), the connector protects internal components from moisture and dust ingress, further extending its service life.
nn
| Parameter | Detail |
|---|---|
| Durability (Matings) | ≥500 cycles |
| Thermal Shock Test | MIL-STD-202F, Method 107G, Condition B |
| Vibration Test | MIL-STD-202, Method 204, Condition B |
| Temperature Range | -65 to +165°C |
| RoHS Compliance | Compliant |
| Sealing Class | IP68 24Hr 1M 20°C |
nn
Conclusion: The MOP-CN-NM-CF78 as a Reliable Solution
nn
In summary, the MOP-CN-NM-CF78 is a technically advanced connector that combines robust materials, precise electrical specifications, and proven environmental resilience. Its low insertion loss, high PIM performance, and wide operating temperature range make it a dependable choice for critical RF applications. The connector’s IP68 sealing and compliance with military test standards ensure it can withstand the rigors of outdoor and industrial installations. When selecting connectors for high-frequency systems, the MOP-CN-NM-CF78 stands out as a component that balances performance and durability, ultimately supporting reliable and efficient network operations. Whether you are a system engineer or a procurement specialist, understanding the detailed technical features of this connector helps in making informed decisions that enhance overall system integrity. The MOP-CN-NM-CF78 is thus a valuable addition to any installation requiring consistent signal quality and long-term reliability. Its thoughtful design and stringent testing ensure it meets the high standards expected in modern telecommunications and broadcasting environments, making it a key element in building robust RF infrastructure.
