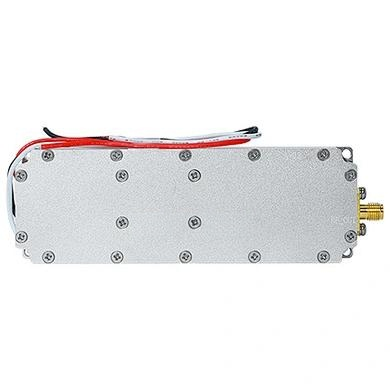

40W High-Power RF Amplifier Module: A Technical Deep Dive
nn
In the demanding world of radio frequency (RF) engineering, the performance of your power amplifier module can make or break a system. Whether you are designing for communication relays, security countermeasures, or signal testing, you need a component that delivers consistent power, low interference, and robust reliability. This 40W RF power amplifier module is engineered to meet those rigorous standards, offering exceptional signal purity and stability across its operating band.
nn
Engineered for the 840–935 MHz frequency range, this module is not just another component; it is a complete solution that integrates a high-performance Voltage-Controlled Oscillator (VCO) directly into the power amplification stage. This design choice ensures that the RF output is both stable and consistent, eliminating the variability often found in systems that rely on external signal sources. For any engineer or system integrator looking to simplify their design while enhancing performance, this power amplifier module represents a significant advancement.
nn
Core Specifications of the Power Amplifier Module
nn
To fully understand the capabilities of this RF module, it is essential to examine its technical parameters. The device is built for high-power, high-gain applications, with a saturated power output that provides a strong margin for system losses. Below is a detailed breakdown of its performance characteristics.
nn
| Parameter | Value / Specification |
|---|---|
| Working Frequency | 840 – 935 MHz |
| Saturated Power Output | 46±1 dBm |
| Gain | 46 dB |
| In-Band Flatness | ≤2 dB |
| Maximum Lossless Input | +10 dBm |
| Input/Output VSWR | ≤1.5:1 |
| Operating Voltage | DC+28V |
| Operating Current | ≤4A |
| Power Supply Interface | Feed-through capacitor |
| RF Port | SMA-KFD (SMA female) |
| Monitoring Interface | Feed-through capacitor (with VCO) |
| Amplifier Size | 112 x 38 x 18 mm |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -30°C to +65°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
nn
Out-of-Band Suppression: Maintaining Signal Purity
nn
A critical feature of any high-performance RF component is its ability to reject unwanted signals. This power amplifier module excels with robust out-of-band spurious suppression across a broad spectrum. The specifications for this performance metric are clearly defined for two key frequency ranges, ensuring that your system does not generate interference that could affect other equipment or violate regulatory compliance.
nn
| Frequency Range | Spurious Suppression Level |
|---|---|
| 9 kHz – 1 GHz | ≤ -36 dBm / 30 kHz |
| 1 GHz – 12.75 GHz | ≤ -30 dBm / 30 kHz |
nn
This level of filtration is essential for maintaining the integrity of the signal path. Whether you are using this module for sensitive measurement equipment or for electronic countermeasure systems, the high out-of-band rejection guarantees that only the desired frequencies are amplified, minimizing the risk of harmonic distortion and noise pollution.
nn
Application Versatility in RF Systems
nn
The combination of high gain, stable power output, and excellent signal purity makes this RF module a versatile choice for a wide array of applications. Its compact form factor (112x38x18mm) and standard SMA-KFD RF port allow for easy integration into existing equipment designs. The device is a perfect fit for:
nn
- n
- Communication Relay Systems: Boosting weak signals for long-range transmission.
- Electronic Countermeasures (ECM): Providing the necessary power for jamming and security operations.
- RF Signal Generators: Amplifying the output of signal sources for testing and measurement.
- Professional Security Systems: Ensuring reliable data links in surveillance and access control.
n
n
n
n
nn
The module’s ability to operate in extreme environments, from -30°C to +65°C with high humidity tolerance, further expands its utility for both scientific research and industrial deployment. Whether housed in a lab bench setup or embedded in a field-deployed unit, this power amplifier module is built to deliver consistent, high-quality performance.
nn
Conclusion: The Strategic Value of a High-Performance Power Amplifier Module
nn
Selecting the right RF component is a strategic decision that impacts the entire system’s performance and reliability. This 40W power amplifier module stands out not just for its raw power, but for its intelligent engineering. The integration of a VCO and its superior out-of-band suppression ensures that you are not just adding power, but you are adding clean, usable power to your signal chain. With a robust design that withstands harsh conditions and a compact footprint that simplifies integration, this module is a excellent investment for any project that demands high-fidelity RF amplification. For engineers and system architects focused on creating reliable, high-performance systems, this power amplifier module provides the rock-solid foundation needed for success.
