Unleashing the Power of the MOP-PAL-700/1100M-50W: A Deep Dive into Industrial RF Amplification
nn
In the demanding world of industrial and telecommunications infrastructure, signal integrity is paramount. When signals weaken over distance or through obstacles, the performance of entire systems can falter. Enter the MOP-PAL-700/1100M-50W, a power amplifier module engineered to restore and supercharge RF signals with remarkable precision and reliability. This isn’t just another RF component; it’s a robust solution designed for the most challenging environments, ensuring that your wireless systems operate at peak efficiency. Whether you’re maintaining a communication base station, deploying a signal repeater, or building an advanced industrial RF system, this amplifier module delivers the consistent, high-power output you need to bridge the gap between weak signals and strong, reliable connections. Let’s explore what makes this module a standout choice for professionals.
nn
Exceptional Performance and MOP-PAL-700/1100M-50W Power Handling
nn
At its core, the MOP-PAL-700/1100M-50W is built to provide extraordinary signal amplification without introducing distortion. Its design focuses on delivering a clean, powerful output across its entire operational bandwidth. The device’s impressive saturated output power ensures that even the weakest incoming signals are amplified to robust levels, ideal for driving antennas or feeding into subsequent stages of a transmission chain. The high gain figures further underscore its capability, making it suitable for applications where input signals are particularly low. This combination of high power and high gain is a defining characteristic of this industrial-grade RF amplifier.
nn
Technical Specifications at a Glance
n
To fully appreciate the capabilities of this power amplifier module, it’s essential to understand its detailed technical parameters. The following table provides a comprehensive overview of its performance metrics and operational requirements.
nn
| Parameter | Value |
|---|---|
| Model Number | MOP-PAL-700/1100M-50W |
| Working Frequency | 700 – 1100 MHz |
| Saturated Output Power | 47±1 dBm / 50±1 dBm |
| Gain | 47±2 dB / 50±2 dB |
| In-Band Fluctuation | ≤ 2.0 dB |
| Input VSWR | ≤ 1.5 |
| Working Voltage | DC +28 V |
| Working Current | ≤ 5 A |
| Power Supply Wiring | Red: Positive; Black: Ground; Enable Wire |
| Enable Control | 3.2 – 5 V (ON); 0 V (OFF) |
| Output RF Port | SMA or N-Type |
| Operating Temperature | -10 to +55 °C |
| Storage Temperature | -25 to +65 °C |
| Operating Humidity | 5 – 95%, Non-condensing |
| Outer Shell Material | Aluminum Alloy |
nn
Robust Design and Application Versatility
nn

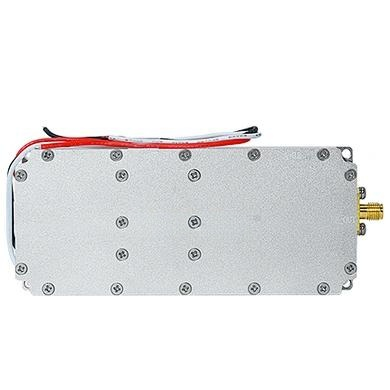

The impressive technical specs of the MOP-PAL-700/1100M-50W are housed in a design built to last. The aluminum alloy shell doesn’t just protect the internal circuitry; it also acts as an effective heatsink, crucial for managing the thermal output of a 50-watt power amplifier. This thermal management is key to the module’s reliability across its specified operating temperature range from -10°C to +55°C. Furthermore, the module’s straightforward wiring and enable control (using a simple 3.2V to 5V signal) simplify integration into existing systems, making it a practical choice for engineers and system integrators. The flexible RF port options—either SMA or N-Type—allow for easy connection to a wide variety of cables and antennas.
nn
Ideal Applications for the Power Amplifier Module
n
This power amplifier module finds its home in a variety of critical communication and industrial systems. Its robust power handling and wide frequency range make it a perfect fit for:
n
- n
- Communication Base Stations: Boosting signals for wider and more reliable cellular and wireless coverage.
- Signal Repeaters: Extending the reach of existing RF signals in tunnels, buildings, and remote areas.
- Industrial RF Systems: Powering data links, telemetry systems, and other specialized wireless networks.
- Test and Measurement: Serving as a high-power driver for Various RF testing scenarios.
n
n
n
n
nn
Conclusion: A Reliable Solution for Demanding RF Environments
nn
In summary, the MOP-PAL-700/1100M-50W power amplifier module stands out as a high-quality, reliable solution for professionals who cannot compromise on signal performance. Its combination of broad frequency coverage, exceptional output power, and stable signal characteristics, all encased in a durable aluminum chassis, makes it an ideal choice for critical infrastructure. From ensuring uninterrupted cellular service to powering complex industrial networks, this RF module delivers the performance and durability required for long-term, dependable operation. When your application demands more power without sacrificing signal integrity, the MOP-PAL-700/1100M-50W is a proven workhorse ready to meet the challenge. It is a direct investment in system reliability and performance, perfectly suited for the rigorous demands of modern wireless communication.
