Unleash Unmatched Power: The 1-18GHz 100W Ultrabroadband Solid-State Power Amplifier
n
In the demanding world of high-power RF applications, performance and reliability are non-negotiable. The 1-18GHz 100W ultrabroadband solid-state power amplifier represents the pinnacle of wideband amplification technology. Designed to tackle the most challenging electronic warfare, communication testing, and radar system scenarios, this powerhouse delivers consistent, high-output performance across the entire 1 to 18 GHz spectrum. With a minimum output power of 100W and a robust 60W P1dB point, it ensures your signals remain strong and clear, even under the heaviest loads. Whether you are running automated test systems or deploying countermeasures, this amplifier provides the stable, reliable power you need to succeed.
n
Engineered for maximum efficiency and ease of integration, this amplifier is not just about raw power—it is about precise control and adaptability. The built-in multi-protocol interface, supporting GPIB, LAN, and RS-232, allows for seamless remote operation and monitoring. Combined with a wide-input voltage range of 90-260VAC and efficient air cooling, it performs consistently in environments ranging from -10°C to +40°C. This is the solution that delivers both the brute force and the refined sophistication required for modern high-power broadband applications.
nn
Exceptional Performance Across the Full Spectrum
n
The core capability of this amplifier lies in its ability to maintain high output power and signal integrity across its entire bandwidth. It is specifically engineered to meet the exacting standards of 1-18GHz 100W ultrabroadband solid-state power amplifier applications, ensuring that every transmission is both powerful and precise. The following table details the critical specifications that define its superior performance:
nn
| Parameter | Specification |
|---|---|
| Frequency Range | 1 – 18 GHz |
| Output Power (Pout) | 100 W min. |
| P1dB Output | 60 W min. |
| Maximum Input Power (Pin) | 1 dBm max. |
| Power Gain | 54 dB min. |
| Gain Flatness | ±4 dB |
| Input VSWR | 2:1 |
| Harmonic Suppression | -20 dBc |
| Spurious Suppression | -60 dBc |
nn
Engineered for Operational Excellence
n

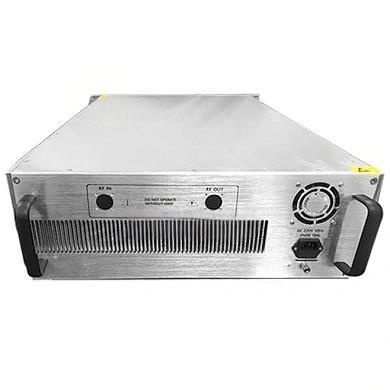

Beyond its electrical performance, the amplifier is built to withstand the rigors of continuous industrial and military use. Its robust mechanical and environmental design ensures longevity and reliability in even the most challenging settings. The next table outlines the physical and power characteristics that make this 1-18GHz 100W ultrabroadband solid-state power amplifier a truly versatile tool.
nn
| Parameter | Specification |
|---|---|
| Power Supply | 90 – 260 VAC (50-60 Hz) |
| Total Power Consumption | 950 W |
| Dimensions | 19-inch rack-mount, 4U |
| Weight | 40 Kg |
| RF Connectors | N-type |
| Control Interface | GPIB / LAN / RS-232 |
| Cooling Method | Air-cooling |
| Operating Temperature | -10°C to +40°C |
| Storage Temperature | -55°C to +70°C |
nn
Conclusion: The Ultimate Solution for High-Power Broadband Needs
n
Selecting the right amplifier can be the difference between mission success and failure. The 1-18GHz 100W ultrabroadband solid-state power amplifier delivers the high power, broad bandwidth, and rock-solid reliability essential for electronic countermeasures, advanced communication testing, and sophisticated radar systems. Its combination of 100W minimum output power, wide frequency coverage, and intelligent control interfaces makes it the ideal core component for any demanding RF system. When you require uncompromised performance and unwavering stability, this amplifier stands ready to meet your most challenging broadband amplification requirements.
