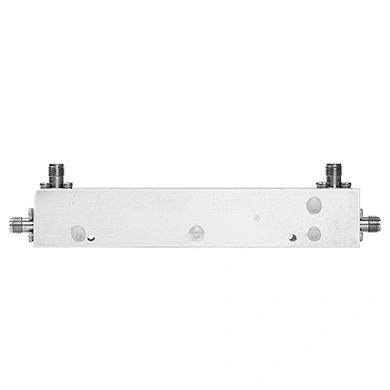

Precision Engineering Meets Broadband Performance: The MOPTECH Single Directional Coupler
nnIn the demanding world of RF engineering, the ability to monitor signal flow without compromising system integrity is paramount. The MOPTECH single directional coupler stands as a testament to precision engineering, offering a robust solution for applications that require high directivity, minimal insertion loss, and reliable signal sampling. Designed to operate across a broad frequency range up to 12.4GHz, this device is not merely a component but a critical enabler for modern telecommunications, radar systems, and sophisticated test and measurement setups. As an RF directional coupler, its primary function is to sample a small, known portion of the RF signal traveling in one direction—either forward or reflected—allowing engineers to measure power, monitor performance, or provide feedback for system tuning without causing significant disruption to the main signal path. The MOPTECH model excels in this role, delivering stable and accurate performance even under high-power conditions, making it an indispensable tool in any RF engineer’s arsenal.nn
The Core Advantage of Low Insertion Loss
nnOne of the most critical specifications for any coupler is its insertion loss—the amount of signal power lost as it passes through the device. The MOPTECH single directional coupler is engineered as a low insertion loss coupler, minimizing signal attenuation to preserve overall system efficiency. This is particularly vital in sensitive applications where every decibel of signal strength matters. The design ensures that the primary RF signal is transmitted with minimal degradation, a key factor in maintaining the integrity of base station power amplifiers or long-haul communication links. By keeping signal loss to a minimum, this RF directional coupler ensures that the system’s performance remains uncompromised, allowing for more accurate measurements and more efficient power transfer.nn
Technical Specifications at a Glance
nnTo provide a clear understanding of the device’s capabilities across its operational bandwidth, the following table outlines the critical electrical parameters.nn| Parameter | Frequency Band (GHz) | Value (Typical / Maximum) |n| :— | :— | :— |n| Coupling (dB) | DC~0.3 | 25 / – |n| | 0.3~0.5 | 17 / – |n| | 0.5~4 | 10 / 10±2.5 |n| | 4~12.4 | 10 / 10±1.8 |n| Insertion Loss (dB) | DC~0.3 | 0.2 / 0.7 |n| | 0.3~0.5 | 0.5 / 0.9 |n| | 0.5~4 | 1 / 1.5 |n| | 4~12.4 | 1 / 1.3 |n| Directivity (dB) | DC~0.3 | 15 / – |n| | 0.3~0.5 | 15 / – |n| | 0.5~4 | 15 / 14 |n| | 4~12.4 | 15 / 14 |n| VSWR (Mainline) | DC~0.3 | 1.2 / 1.5 |n| | 0.3~0.5 | 1.2 / 1.5 |n| | 0.5~4 | 1.3 / 1.5 |n| | 4~12.4 | 1.3 / 1.6 |n| VSWR (Coupling) | DC~0.3 | 1.2 / 1.5 |n| | 0.3~0.5 | 1.2 / 1.5 |n| | 0.5~4 | 1.3 / 1.5 |n| | 4~12.4 | 1.3 / 1.8 |nn| Mechanical & Environmental Specification | Value |n| :— | :— |n| Size | 111.8 x 17.8 x 12.7 mm |n| Connectors | SMA Female |n| Mounting | 2-Φ2.4mm through-hole |n| Average Power Handling | 30W |n| Operating Temperature | -55 to +85°C |n| Non-operating Temperature | -55 to +100°C |nn
High Directivity for Accurate Signal Analysis
nnDirectivity is the measure of how well a directional coupler distinguishes between forward and reflected power. The MOPTECH single directional coupler boasts high directivity, a crucial attribute for applications like VSWR measurements and antenna tuning. With high directivity, this RF directional coupler can accurately isolate the forward signal from the reflected signal, leading to more precise measurements. This ability is essential for characterizing antenna systems, ensuring impedance matching, and reducing signal reflections that can degrade system performance. In radar systems and advanced communication networks, this high directivity translates directly into better system reliability and more effective troubleshooting.nn
A Versatile 30W RF Power Coupler for Modern Systems
nnThe MOPTECH coupler is a robust 30W RF power coupler, designed to handle significant power levels in a compact form factor. Its capability to manage up to 30 watts of average power makes it suitable for a wide range of high-power scenarios, from base station power amplifiers to laboratory test setups. This power handling, combined with its SMA directional coupler interface, allows for seamless integration into existing systems. The compact size of this single directional coupler is optimized for space-constrained deployments, making it an excellent choice for modern, densely packed RF equipment where board real estate is at a premium. Whether used for monitoring forward power in a transmitter or detecting reflected power for protection circuits, this coupler provides the necessary reliability and performance.nn
Conclusion: A Cornerstone Component for RF Excellence
nnIn summary, the MOPTECH single directional coupler is more than just a passive component; it is a high-performance tool designed to meet the rigorous demands of modern RF engineering. Its combination of low insertion loss, high directivity, and substantial 30W power handling makes it an essential element for telecom infrastructure, military and aerospace systems, and precise test and measurement equipment. By enabling accurate signal sampling and isolation, this 10dB coupler ensures that critical systems operate at peak efficiency. For engineers seeking a dependable 12.4GHz coupler with robust SMA connectivity, this single directional coupler delivers unmatched performance and reliability in a compact, rugged package. It is a definitive solution for accurate power monitoring, signal analysis, and maintaining the integrity of complex RF circuits.
