Exceptional Signal Purity with This Advanced Low PIM Termination Solution
n
In the demanding world of critical communications infrastructure and precision testing, signal integrity is non-negotiable. This advanced RF termination system is engineered as a premium-grade 50ohm termination solution, designed to meet the rigorous requirements of modern cellular networks, distributed antenna systems, and sensitive measurement setups. At the heart of its capability is a dummy antenna configuration that provides exceptional signal absorption across a broad DC-3GHz spectrum, ensuring clean and reliable performance in environments where every decibel matters. Whether you are optimizing a 5G installation or calibrating lab equipment, this device delivers unmatched consistency.
n
What truly sets this solution apart is its status as a low PIM termination device. Passive intermodulation (PIM) distortion can cripple multi-carrier systems, leading to dropped calls and reduced network capacity. This unit addresses that challenge head-on, with PIM3 levels ≤-120dBc and PIM5 ≤-145dBc at standard test conditions. Such performance ensures minimal distortion in dense RF environments, making it an ideal choice for 4G/LTE and 5G deployments where signal purity directly impacts quality of service. The precision 50ohm termination design boasts a VSWR of ≤1.2:1 across the entire frequency range, effectively eliminating signal reflections that can compromise system efficiency.
nn
Power Handling and Frequency Versatility
n
This dummy antenna solution is available in multiple power handling options, from 2W for low-power laboratory testing up to 200W for high-power transmission scenarios. This flexibility allows engineers to use a single product family across diverse applications, streamlining inventory and ensuring consistent performance. The frequency coverage of DC-3GHz accommodates everything from legacy systems to the latest wireless standards, making it a versatile tool for field testing, permanent installation, and network optimization.
nn
Low PIM Termination Performance Across Configurations
n
To fully appreciate the capabilities of this low PIM termination device, it is essential to examine its technical specifications. The following table details the key parameters across the available power options, highlighting the exceptional performance that ensures signal clarity in multi-carrier environments.
n
| Model No. | Power (W) | Frequency Range | Impedance (Ω) | VSWR | PIM3 (dBc) | PIM5 (dBc) | Connector Options | Operating Temp. | Humidity |
|---|---|---|---|---|---|---|---|---|---|
| MOP-DL-3GHz-02W-NM(NF/MM/DM/DF) | 2 | DC-3GHz | 50 | ≤1.2:1 | ≤-120@2X33dBm | ≤-145@2X33dBm | Type N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other types | -20 to +55°C | ≤95% |
| MOP-DL-3GHz-05W-NM(NF/MM/DM/DF) | 5 | DC-3GHz | 50 | ≤1.2:1 | ≤-120@2X33dBm | ≤-145@2X33dBm | Type N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other types | -20 to +55°C | ≤95% |
| MOP-DL-3GHz-25W-NM(NF/MM/DM/DF) | 25 | DC-3GHz | 50 | ≤1.2:1 | ≤-120@2X33dBm | ≤-145@2X33dBm | Type N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other types | -20 to +55°C | ≤95% |
| MOP-DL-3GHz-50W-NM(NF/MM/DM/DF) | 50 | DC-3GHz | 50 | ≤1.2:1 | ≤-120@2X33dBm | ≤-145@2X33dBm | Type N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other types | -20 to +55°C | ≤95% |
| MOP-DL-3GHz-100W-NM(NF/MM/DM/DF) | 100 | DC-3GHz | 50 | ≤1.2:1 | ≤-105@2X43dBm | ≤-120@2X43dBm | Type N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other types | -20 to +55°C | ≤95% |
| MOP-DL-3GHz-200W-NM(NF/MM/DM/DF) | 200 | DC-3GHz | 50 | ≤1.2:1 | ≤-105@2X43dBm | ≤-120@2X43dBm | Type N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other types | -20 to +55°C | ≤95% |
nn
Robust Construction and Environmental Resilience
n

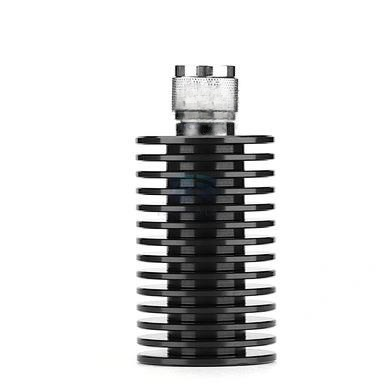

This low PIM termination device is built to withstand challenging conditions, operating reliably in temperatures ranging from -20°C to +55°C and humidity levels up to 95%. The advanced thermal management system ensures stable performance even during prolonged high-power operation, preventing overheating and maintaining signal integrity. Multiple connector options—including N-type, DIN, BNC, and PL259—provide flexible integration with various RF systems, simplifying installation and reducing the need for adapters. This robust construction makes it an excellent dummy antenna replacement for transmitter testing, system calibration, and network analyzer reference loads.
nn
Applications in Modern Wireless Ecosystems
n
Telecommunications engineers and RF system designers will appreciate the consistent performance and reliability of this 50ohm termination solution. Its low PIM termination technology helps maintain signal clarity in dense RF environments, reducing interference and improving overall system efficiency. Specific applications include cellular infrastructure maintenance and optimization, in-building wireless systems, public safety communications, military and aerospace RF systems, and broadcast transmission systems. The balanced approach to power handling, frequency coverage, and signal purity establishes a new benchmark for low PIM termination devices in professional RF applications.
n
Whether used for field testing, laboratory measurements, or permanent installation, this 50ohm termination dummy antenna delivers the precision and reliability demanded by today’s increasingly complex wireless ecosystems. With its exceptional low PIM performance and versatile design, it is the definitive choice for engineers who refuse to compromise on signal quality. Trust this advanced solution to elevate your network’s performance and ensure seamless operation in even the most demanding environments.
