High-Power Signal Shielding System: Comprehensive Technical Guide
In today’s security-conscious world, managing wireless communications in sensitive environments is critical. Whether you are securing a prison, an oil refinery, or a protected government facility, a reliable signal shielding solution ensures that unauthorized communications are effectively blocked. Our high-power signal shielding system delivers robust performance, covering a wide range of frequencies and providing intelligent remote management. This article explores the technical parameters, applications, and advanced features of this professional-grade equipment, helping you understand why it is the ideal choice for your security infrastructure.
System Overview and Key Features

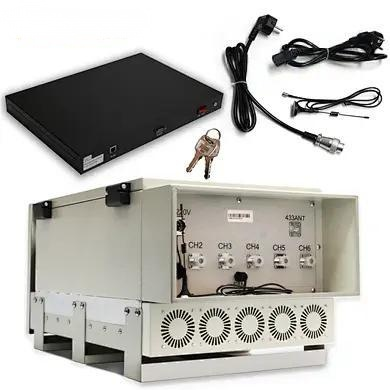

This signal shielding system is designed for demanding environments that require consistent, high-power interference. With a total RF power of 300W distributed across six output channels, it offers unparalleled coverage and flexibility. The system supports remote network control via RJ45, enabling seamless integration into existing security networks. Additionally, it features advanced monitoring capabilities, allowing operators to track module status, temperature, voltage, current, and power levels in real time. The system’s ability to cover a radius of 50 to 200 meters (at -75dBm in open outdoor conditions) makes it suitable for large-scale installations.
Primary Specifications
| Parameter | Value |
|---|---|
| Shielding Range | Radius of 50-200 meters (-75dBm, outdoor open environment, distance dependent on surrounding base stations) |
| Total RF Power (Whole Machine) | 300W |
| Total DC Current | 30A |
| Whole Machine Power Consumption | 840W |
| Total AC Current | 3.85A |
| Shielded Signal Types | 4G, 3G (LTE/TD/WCDMA/CDMA2000), GSM (2G), CDMA (2G) |
| Output Channels | 6 channels (single channel 50W, software adjustable range 5W-50W) |
| Remote Control | Network RJ45 (wired or wireless via 433M or 135M transmission) |
Monitoring and Alarm Capabilities
Effective security relies on constant vigilance. This system provides comprehensive monitoring of all equipment in a prison or facility. It tracks working status, frequency, power, temperature, voltage, and current for each module. Alarms are triggered for various conditions, including whole machine faults, door open state, position movement, standing wave open circuit faults, and module-specific issues such as low power, over temperature, over voltage, overload, and standing wave alarms. Software-controlled power adjustment (5W-50W per channel) enables precise optimization.
Detailed RF Module Specifications
The RF module is the core of this signal shielding solution. It operates across a wide frequency range and delivers consistent gain under extreme conditions. The following table outlines the key electrical and mechanical characteristics:
RF Module Technical Data
| Parameter | Specification | Remark |
|---|---|---|
| Frequency Range | 500M-6000MHz | High frequency |
| Working Voltage | 28V | 12-30V range |
| Max Output Power | 4±1dBm | Typical |
| VSWR | ≤1.5 | No power, standard network output |
| VSWR (Under Power) | ≤1.5, -10dBm | Power on, dual directional coupler test |
| Working Environment Temperature | -10~+65ºC | Low temperature start, monitoring works normally |
| Gain Stability | ±1dB @-20ºC~+55ºC | — |
| Power Stability | ±1dB @-20ºC~+55ºC | — |
| Power Requirements | ≥0.8A @+28Vdc | — |
| Power Supply Interface | RS485 7W2 male | Monitoring interface |
| RF Connector | SMA-F | — |
| Dimensions | 123mm 107mm 20mm | — |
| Appearance / How to Use | Aluminum cavity form | No need to add radiator |
Critical Applications
Prisons and Correctional Facilities
In high-security prisons, preventing inmates from using mobile phones for illegal activities is paramount. This signal shielding system covers the entire facility, blocking unauthorized communications while remaining invisible to daily operations. Its remote monitoring ensures that security personnel can instantly detect any issues, such as module failures or tampering, maintaining a safe environment.
Oil Refineries and Industrial Sites
Oil refineries and chemical plants face risks from sparks caused by mobile phones. This system eliminates that danger by creating a controlled RF environment. The wide frequency range (500M-6000MHz) and high output power guarantee effective shielding even in complex industrial landscapes. The rugged aluminum cavity design, requiring no external radiator, withstands harsh conditions.
Protected Government Areas and Sensitive Zones
Government buildings, military installations, and research centers demand complete communication control. This solution enables custom coverage and power adjustments via software, adapting to changing security needs. The RS485 monitoring interface and RJ45 network control facilitate integration with existing command centers, providing a unified security management platform.
Conclusion: Why Choose This Signal Shielding System
This high-power signal shielding system stands out for its robust technical specifications, intelligent monitoring, and ease of use. With a total RF power of 300W, six software-adjustable output channels, and a shielding range of up to 200 meters, it offers unmatched coverage for critical applications. The signal shielding system ensures real-time visibility into all operational parameters, while comprehensive alarms protect against failures and interference. Whether deployed in a prison, oil refinery, or protected area, this solution delivers reliable performance and long-term value. Choose this system to safeguard your sensitive environments with confidence.
