Seamless Signal Transfer: The MOP-AD-NF/DM Adapter for N RF Coaxial Connector and DIN RF Coaxial Connector
n
In the world of high-frequency communications, the integrity of every connection point is paramount. Whether you are managing a busy communication base station, deploying industrial RF systems, or testing critical equipment, a single weak link can compromise your entire signal chain. The MOP-AD-NF/DM adapter is engineered to eliminate this risk, offering a robust and reliable bridge between two of the most common connector families in the industry. This adapter for N RF coaxial connector and DIN RF coaxial connector is not just a simple piece of hardware—it is a precision component designed to maintain signal purity and system performance in the most demanding environments.
n

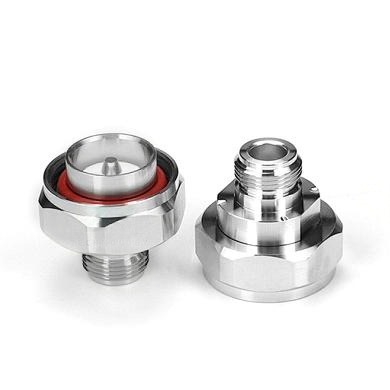

This straight-style adapter is specifically crafted to connect an N female coaxial interface to a 7/16 DIN male interface, providing a secure and stable mechanical and electrical connection. Its design prioritizes low signal loss and high durability, making it an essential tool for professionals who cannot afford downtime or signal degradation. From cellular infrastructure to broadcast systems, this adapter ensures that your system operates at peak efficiency.
nn
Superior Electrical Performance for Critical Systems
n
When integrating different RF subsystems, the adapter for N RF coaxial connector and DIN RF coaxial connector must do more than simply join two cables. It must preserve the electrical characteristics of the entire transmission path. The MOP-AD-NF/DM excels in this regard, with a Voltage Standing Wave Ratio (VSWR) of ≤1.06 and an insertion loss of just ≤0.08dB. These exceptional figures mean that signal reflection is minimized, and virtually no power is wasted as the signal passes through the adapter. This is particularly crucial in systems where every decibel of signal strength matters, such as in long-distance communications or high-precision testing.
n
The adapter supports a standard 50Ω impedance and operates across a broad frequency range from DC to 3GHz, covering a wide spectrum of applications. Its exceptional performance is further underscored by a low third-order intermodulation (IM3) level of ≤-155 dBc at 2×20W, making it suitable for multi-channel and high-power systems where distortion must be kept to an absolute minimum. These electrical properties ensure that the adapter acts as a nearly invisible part of the signal path, preserving the integrity of your data or voice transmissions.
nn
Robust Materials for Lasting Durability
n
Durability begins with material selection. The MOP-AD-NF/DM is built to last, with a silver-plated brass alloy inner contact that provides excellent conductivity and corrosion resistance. The outer contact features a Tri-Alloy plating, offering superior protection against environmental wear and ensuring a long service life. The insulator is made from high-quality PTFE, a material renowned for its stable dielectric properties and ability to withstand temperature fluctuations. These materials work in concert to deliver consistent electrical performance over thousands of mating cycles and years of operation.
n
To ensure reliability in harsh conditions, the adapter offers a comprehensive set of environmental properties. It boasts an IP67 waterproof rating, meaning it is completely protected against dust and can withstand immersion in water up to one meter deep. This makes it an ideal choice for outdoor installations, such as rooftop base stations or tower-mounted equipment. The operating temperature range of -40°C to +85°C guarantees functionality in everything from freezing winters to scorching summers. Furthermore, the adapter is fully compliant with the 2011/65/EU (RoHS) directive, confirming that it is manufactured without hazardous substances.
nn
Technical Specifications at a Glance
n
The following table details the complete technical specifications for the MOP-AD-NF/DM adapter for N RF coaxial connector and DIN RF coaxial connector, providing a clear overview of its capabilities.
nn
| Property | Specification |
|---|---|
| Model | MOP-AD-NF/DM |
| Interface Type | N Female to 7/16 DIN Male |
| Mounting Angle | Straight |
| Impedance | 50 Ω |
| Frequency Range | DC ~ 3 GHz |
| VSWR | ≤ 1.06 |
| Insertion Loss | ≤ 0.08 dB |
| Third Order Intermodulation (IM3) | ≤ -155 dBc @ 2×20W |
| Inner Contact Material & Plating | Brass alloy, silver plated |
| Outer Contact Material & Plating | Brass alloy, Tri-Alloy plated |
| Insulator Material | PTFE |
| Inner Contact Resistance | ≤ 1.0 mΩ |
| Outer Contact Resistance | ≤ 0.4 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstanding Voltage | ≥ 2500 V, RMS, 50Hz, at sea level |
| Operating Temperature Range | -40°C to +85°C |
| Waterproof Rating | IP67 |
| RoHS Compliant | 2011/65/EU (RoHS) |
nn
Conclusion: The Optimal Choice for Critical Connections
n
Choosing the right adapter is about more than just matching connector types; it is about ensuring your entire system performs as intended. The MOP-AD-NF/DM is a high-performance adapter for N RF coaxial connector and DIN RF coaxial connector that delivers on every promise. Its combination of ultra-low VSWR and insertion loss, robust construction with premium materials, and IP67-rated environmental sealing makes it a superior choice for any application demanding reliability and efficiency. Whether you are upgrading existing infrastructure or building a new system, this adapter provides the dependable link your network requires, ensuring seamless signal transfer for years to come.
