Elevate Your Indoor Network with the High-Performance RF Device
nnIn the ever-evolving landscape of telecommunications, the need for reliable, high-efficiency indoor radio frequency (RF) solutions has never been greater. Whether you’re deploying indoor communication base station units, enhancing distributed antenna systems, or refining in-building coverage, the performance of your passive components directly impacts signal quality and network reliability. This high-performance indoor RF device is engineered to meet the rigorous demands of modern indoor environments, delivering exceptional signal integrity, minimal interference, and robust operational stability. Its design prioritizes both technical excellence and practical installation, making it an indispensable component for system integrators and network engineers.nn
Understanding the Core Technology of the RF Solution
nnAt the heart of this device lies a meticulously engineered architecture that ensures superior signal transmission. It covers a wide frequency range of 698~2700MHz, effectively supporting mainstream multi-band communication standards including LTE, 5G NR, and various cellular bands. This broad spectrum coverage ensures that the device can seamlessly integrate into existing infrastructure while remaining future-proof for upcoming network upgrades. The device’s low Voltage Standing Wave Ratio (VSWR) of ≤1.25 is a critical performance indicator, minimizing signal reflection and power loss. This characteristic is essential for maintaining high data throughput and reducing system noise, especially in dense indoor environments where signal degradation can be pronounced.nn
Key Technical Specifications and Performance Metrics
nnTo fully appreciate the engineering precision of this RF device, it is vital to examine its technical parameters. The following table outlines the core specifications that define its operational capabilities and reliability.nn
| Parameter | Specification |
|---|---|
| Frequency Range | 698 ~ 2700 MHz |
| Voltage Standing Wave Ratio (VSWR) | ≤ 1.25 |
| Passive Intermodulation (PIM) | ≤ -150 dBc @ 2 × +43 dBm |
| Impedance | 50 Ω |
| Average Power Handling | 10 W |
| Connector Type | 4.3-10, Male / Female |
| Operating Temperature | -40 ~ +60 °C |
| Sealing Rating | Indoor |
| Dimensions (Excluding Connector & Handle) | 150 mm × Ф40 mm |
| Weight | 0.8 kg |
nn
Superior Interference Management and Signal Purity
nnOne of the standout features of this indoor RF device is its exceptional Passive Intermodulation (PIM) performance. With a PIM rating of ≤ -150 dBc at 2 × +43 dBm, the device significantly reduces unwanted signal distortions that can plague multi-carrier systems. Low PIM is paramount in modern networks where multiple high-power signals coexist; high intermodulation products can desensitize receivers and degrade call quality or data speeds. By maintaining such stringent PIM levels, this device ensures clean, high-fidelity signal paths, which is particularly beneficial in high-density indoor environments like stadiums, shopping malls, and office complexes.nn
Practical Design for Easy Installation and Long-Term Reliability

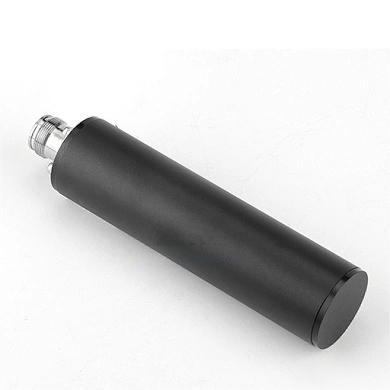

nnBeyond its electrical performance, the device is designed with hands-on installation in mind. It adopts a standard 50Ω impedance, ensuring compatibility with the vast majority of RF equipment and cabling. The use of industry-standard 4.3-10 male and female connectors provides a robust, low-loss interface that is quick to connect and disconnect, facilitating faster deployments and maintenance cycles. Its compact form factor—measuring just 150×Ф40mm (excluding connectors and handle) and weighing only 0.8kg—allows for flexible placement in confined spaces such as equipment racks, ceiling plenums, or junction boxes. The device operates reliably across a wide temperature range of -40 to +60°C, making it suitable for unconditioned indoor spaces. This combination of stability and practicality ensures that the device not only meets stringent technical benchmarks but also simplifies the work of field technicians.nn
Conclusion: The Optimal Choice for Indoor RF Needs
nnIn summary, this high-performance indoor RF device represents a perfect synergy of cutting-edge performance, robust construction, and user-centric design. Its broad frequency coverage, low VSWR, and exceptional PIM characteristics make it a superior choice for critical indoor communication infrastructure. By integrating this RF solution into your network, you are investing in enhanced signal quality, reduced interference, and long-term operational reliability. Whether you are upgrading an existing system or building a new one, this device provides the technical foundation necessary for delivering a seamless wireless experience. It stands as a testament to how thoughtful engineering can overcome the unique challenges of indoor RF propagation, ensuring robust connectivity in the most demanding environments.
