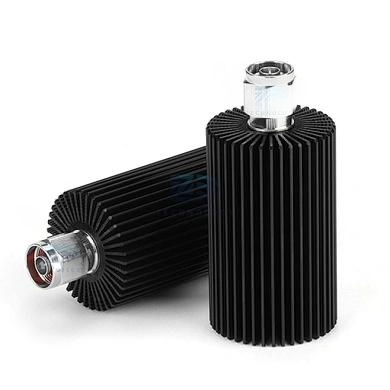

Understanding the Power Handling and PIM Performance of the MOP-DL-3GHz Series
nn
In the world of RF and telecommunications infrastructure, few components are as critical as low-PIM (Passive Intermodulation) loads. The MOP-DL-3GHz-xxW-NM series represents a versatile family of terminations designed to handle demanding network environments. Whether you are optimizing a base station, testing amplifier circuits, or building out a distributed antenna system (DAS), choosing the right load with the correct power rating and connector type is essential for signal integrity. This article explores the capabilities, specifications, and application considerations for this series, ensuring you have the knowledge to select the ideal component for your setup.
nn
These loads are engineered to cover a broad frequency spectrum from DC to 3GHz, making them suitable for a wide range of cellular, Wi-Fi, and public safety frequency bands. The core strength of this product line lies in its ability to maintain very low voltage standing wave ratio (VSWR) across the entire bandwidth, typically ≤1.2:1, which minimizes signal reflection and maximizes power transfer. Furthermore, the stringent PIM3 and PIM5 ratings ensure that these loads do not introduce harmful intermodulation products that can degrade receiver sensitivity in high-power, multi-carrier systems.
nn
Decoding the Model Number: MOP-DL-3GHz-xxW-NM
n
The model number itself provides immediate insight into the product’s configuration. MOP-DL-3GHz defines the base series and upper frequency limit. The xxW placeholder indicates the specific continuous wave (CW) power handling capacity, which varies from compact 2-watt terminations up to robust 200-watt models. The suffix NM refers to the connector interface, specifically the standard N-Male platform, though the product family supports multiple connector genders and types to meet diverse integration needs.
nn
Power Handling Options and Connector Variations
n
Selecting the appropriate power level is the first step in ensuring reliable operation. The series offers a ladder of power ratings to match different system requirements, from low-power test equipment to high-power transmitter outputs. Each power variant is optimized for heat dissipation and consistent electrical performance. Additionally, the connector interface is a critical variable; while N-Male is standard, alternatives like N-Female, DIN-Male, DIN-Female, BNC-Male, and PL259-Male are available to directly connect to common RF components without adapters.
nn
Below is a comprehensive breakdown of the key specifications for the MOP-DL-3GHz series. All technical parameters are presented in a structured format for quick comparison and reference.
nn
Comprehensive Technical Specifications for the MOP-DL-3GHz Series
nn
| Parameter | Specification / Value | Notes / Options |
|---|---|---|
| Model Designation | MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) | xxW denotes power rating (2W, 5W, 25W, 50W, 100W, 200W) |
| Frequency Range | DC – 3 GHz | Covers cellular (700 MHz – 2700 MHz), Wi-Fi, ISM bands |
| Available Power Ratings (CW) | 2W, 5W, 25W, 50W, 100W, 200W | Select based on system power and thermal margin |
| Impedance | 50 Ω | Standard for most RF and telecommunications systems |
| Voltage Standing Wave Ratio (VSWR) | ≤ 1.2:1 | Measured across full frequency range; ensures low reflection |
| PIM3 (Passive Intermodulation, 3rd order) | ≤ -120 dBc @ 2x +33 dBm | For lower power testing or sensitive environments |
| PIM3 (Passive Intermodulation, 3rd order) | ≤ -105 dBc @ 2x +43 dBm | For high-power base station and tower-mounted applications |
| PIM5 (Passive Intermodulation, 5th order) | ≤ -145 dBc @ 2x +33 dBm | Low power test condition; excellent linearity |
| PIM5 (Passive Intermodulation, 5th order) | ≤ -120 dBc @ 2x +43 dBm | Maintains low intermodulation at high transmit power |
| Standard Connector Types | N-Male, N-Female, DIN-Male, DIN-Female | Most common for telecom infrastructure |
| Alternative Connector Types | BNC-Male, PL259-Male | Available upon request; check lead time |
| Other Connector Options | Custom interfaces available | Consult factory for non-standard configurations |
| Operating Temperature Range | -20°C to +55°C | Indoor and protected outdoor environments |
| Relative Humidity (Operating) | ≤ 95% (non-condensing) | Suitable for humid climates with proper ventilation |
nn
Applications and Performance Considerations for the MOP-DL-3GHz Series
n
The combination of high power handling and low PIM makes the MOP-DL-3GHz series an excellent choice for several critical applications. In cellular base stations, these loads are used for antenna port terminations, dummy loads during transmitter testing, and as calibration references for PIM test equipment. The ability to sustain ≤-120 dBc PIM3 at 2×43 dBm ensures that even in high-power scenarios, the load will not generate intermodulation products that could interfere with adjacent receivers or degrade network capacity.
nn
Environmental Resilience and Installation Best Practices
n
While these loads are rated for a broad temperature range from -20°C to +55°C and high humidity, proper installation is crucial to maintain performance. The connector should be tightened to the manufacturer’s specified torque to ensure low contact resistance and stable PIM performance. For higher power variants (100W and 200W), adequate heatsinking or forced air cooling may be necessary to keep the load temperature within safe limits during continuous operation. Always verify that the chosen connector type (N, DIN, BNC, or PL259) matches the mating interface to avoid impedance mismatches or mechanical stress.
nn
Conclusion: Selecting the Optimal Low-PIM Load for Your Network
n
The MOP-DL-3GHz series offers a compelling value proposition for engineers and network operators who require reliable, low-PIM terminations across the DC-3GHz spectrum. With power options ranging from 2W to 200W, a variety of connector interfaces including N, DIN, BNC, and PL259, and stringent PIM specifications that meet both low-power and high-power test conditions, this product family addresses a wide array of deployment scenarios. By carefully matching the power rating and connector type to your system’s specific requirements, you can ensure minimal signal degradation and long-term operational stability. Whether you are constructing a new site or troubleshooting an existing installation, the MOP-DL-3GHz load series provides the performance and consistency needed to maintain a clean, interference-free RF environment.
