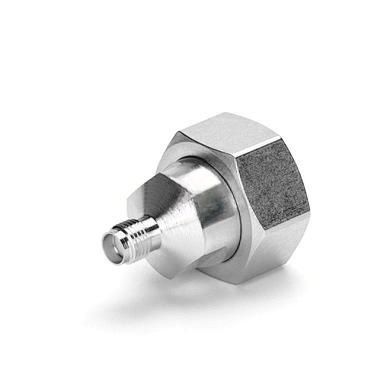

Understanding the High-Performance SMA Female to 4.3-10 Mini Din RF Adapter
In the complex world of radio frequency (RF) engineering, the quality of your connections can define the success of your entire system. Whether you are deploying a telecommunications network, testing aerospace equipment, or managing high-frequency laboratory instruments, a single poor interface can introduce noise, cause signal loss, and degrade performance. This is where a meticulously engineered RF adapter becomes indispensable. Designed to bridge the gap between an SMA female interface and a 4.3-10 mini din male connector, this adapter ensures seamless and reliable signal transfer across diverse RF systems. By combining precision engineering with robust materials, it delivers the stability and clarity that modern communication systems demand. From wideband operation to exceptional environmental resilience, this component is built to excel in even the most challenging applications.
The adapter, identified by model number MOP-AD-MM-SMAF, is engineered for straightforward integration. Its straight mounting design simplifies the connection process, while its standard 50Ω impedance ensures compatibility with a vast array of coaxial cables and RF equipment. With support for wideband operation from DC to 7.5GHz, this adapter is versatile enough for everything from basic broadcast signals to advanced 5G and satellite communications. By minimizing signal reflection and insertion loss, it maintains signal integrity across the entire frequency range, reducing the risk of data corruption or transmission errors.
Exceptional Signal Performance and Reliability
As a trusted RF adapter, this component sets a high bar for electrical performance. Its very low voltage standing wave ratio (VSWR) of ≤1.06 ensures that nearly all transmitted power reaches the load, with minimal reflections that could disrupt system operation. Complementing this is an insertion loss of ≤0.08dB, which means signal strength is preserved with negligible energy losses. Together, these specifications guarantee clear, stable signal transmission—critical for applications where signal fidelity is paramount, such as in high-speed data links or precision measurement setups.
RF Adapter: Engineered for Durability and Accuracy
Beyond electrical excellence, this RF adapter is designed to endure harsh operational conditions. Its construction combines high-quality materials that resist wear, corrosion, and environmental stress. The SMA female side features a silver-plated inner contact, which provides low contact resistance and excellent conductivity. On the 4.3-10 mini din male end, a Tri-Alloy plating offers superior resistance to oxidation and mechanical wear. A PTFE insulator further enhances performance by delivering high insulation resistance and stable dielectric properties across the entire frequency range.
The result is an adapter that not only transmits signals with precision but also withstands the rigors of continuous use in demanding environments. Its IP67 waterproof rating ensures protection against dust and temporary immersion in water, making it suitable for outdoor installations, industrial settings, and mobile platforms. The adapter operates reliably across a wide temperature range from -40°C to +85°C, ensuring consistent performance in both freezing climates and high-temperature conditions. RoHS compliance guarantees adherence to environmental safety standards, making it a responsible choice for global deployment.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MOP-AD-MM-SMAF |
| Interface Type | SMA Female / 4.3-10 Mini Din Male |
| Mounting Angle | Straight |
| Impedance | 50Ω |
| Frequency Range | DC ~ 7.5 GHz |
| 3rd Order Intermodulation | ≤ -150 dBc @ 2×20W |
| Inner Contact Resistance | ≤ 1.0 mΩ |
| Outer Contact Resistance | ≤ 1.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstanding Voltage | ≥ 2500 V RMS, 50Hz, at sea level |
| VSWR | ≤ 1.06 |
| Insertion Loss | ≤ 0.08 dB |
| Inner Contact Material & Plating | Brass alloy, silver plated |
| Outer Contact Material & Plating | Brass alloy, Tri-Alloy plated |
| Insulator Material | PTFE |
| Operating Temperature Range | -40°C ~ +85°C |
| Waterproof Rating | IP67 |
| RoHS Compliance | Yes (2011/65/EU) |
Conclusion: Why This RF Adapter Is a Smart Investment
When you select an RF adapter for your system, you are choosing more than just a connector—you are ensuring the long-term performance and reliability of your entire signal chain. This SMA female to 4.3-10 mini din adapter excels by combining low VSWR, minimal insertion loss, and robust environmental protection into a compact, durable design. Its wideband capability and precision engineering make it suitable for a broad spectrum of applications, from cellular base stations to test and measurement equipment. By integrating this adapter into your network, you minimize signal degradation, reduce maintenance needs, and achieve consistent, high-quality performance. Whether you are building new systems or upgrading existing ones, this RF adapter delivers the reliability and accuracy you need to stay connected.
