High-Performance RF Amplification for Critical Communications
nnIn the demanding world of high-frequency wireless systems, signal integrity and reliability are non-negotiable. The MOP 2200-2600MHz 25W RF Power Amplifier Module delivers precisely this, offering a robust solution for applications ranging from telecom infrastructure to defense communications. This amplifier module is engineered to provide a clean, powerful signal output of 25W (44dBm) across the 2200-2600MHz spectrum, ensuring your transmissions are clear, stable, and far-reaching. For engineers working with 5G repeaters, satellite links, or radar systems, this RF Power Amplifier is designed to maintain signal purity while withstanding the rigors of continuous operation. Its high-gain, low-noise architecture will minimize distortion and maximize efficiency, making it a cornerstone component for any serious RF deployment.nn
Design Features of the RF Power Amplifier
nnThis module is packed with features that directly address the challenges of modern RF engineering. The standout element is its built-in intelligent protection system, which safeguards the module during high-stress conditions and extends its operational lifespan.nn
Intelligent Thermal Management and Protection
nnTo prevent overheating, a critical concern for high-power amplifiers, the module includes a precise temperature monitoring system. It operates on a voltage reference of 10mV/°C, providing a real-time, linear readout of the internal temperature. This allows for proactive thermal management, such as adjusting fan speeds or triggering safety shutdowns, preventing heat-related failures during prolonged use.nn
Robust VSWR and Impedance Protection
nnA crucial aspect of any RF Power Amplifier is its ability to handle impedance mismatches, which can cause significant power loss and damage. This module features advanced VSWR (Voltage Standing Wave Ratio) protection for both input and output, with a rating of ≤1.5. This ensures the amplifier remains stable and efficient, even when connected to imperfect loads or antenna systems, dramatically enhancing reliability in dynamic environments.nn
Technical Specifications
nnThe following table provides a complete breakdown of the MOP 2200-2600MHz 25W RF Power Amplifier Module’s core parameters.nn
| Parameter | Specification |
|---|---|
| Working Frequency | 2200 – 2600 MHz |
| Saturated Power Output | 44 dBm (25W) |
| Gain | 44 dB |
| In-band Flatness | ±1 dB (typical) |
| Working Current | ≤ 3 A |
| Input & Output VSWR | ≤ 1.5 |
| Out-of-band Spurs (9kHz～1GHz) | ≤ -36 dBm / 30kHz |
| Out-of-band Spurs (1GHz～12.75GHz) | ≤ -30 dBm / 30kHz |
| Maximum Lossless Input | +10 dBm |
| Operating Voltage (DC) | +28 V |
| Power Supply Interface | Feed-through Capacitor |
| RF Port | SMA-KFD |
| Monitoring Interface | Feed-through Capacitor |
| Amplifier Size | 125 x 65 x 20 mm |
| Operating Temperature | -10 ～ +55 ℃ |
| Relative Humidity | 5% ～ 95% (no condensation) |
| Storage Temperature | -25 ～ +65 ℃ |
| Current Report | Voltage 0-5V (monitor current) |
| Temperature Report | VO = 10 mV/°C (25°C baseline reference) |
nn
Seamless Integration and Application

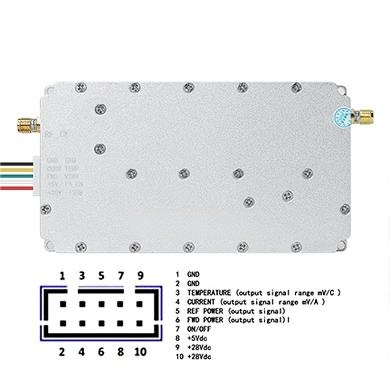

nnThe module’s compact dimensions (125x65x20mm) and lightweight aluminum casing are purpose-built for easy integration into space-constrained equipment. It uses standard SMA-KFD RF ports for secure, high-frequency connections, and its wide operating temperature range from -10°C to +55°C ensures reliable performance in diverse environments, from fixed base stations to mobile military units. This RF Power Amplifier is a versatile workhorse, perfectly suited for high-stakes applications like 5G repeaters, satellite communications, and IoT gateways where signal fidelity is paramount.nn
Conclusion: The Reliable Choice for Modern RF Systems
nnThe MOP 2200-2600MHz 25W RF Power Amplifier Module stands out for its exceptional balance of high power, low noise, and intelligent protection. By combining a 44dB gain with a robust thermal monitoring and VSWR protection system, it offers a level of reliability that is essential for critical communications. For any engineer designing a system where signal integrity and long-term durability are key, this RF Power Amplifier provides a proven, high-performance foundation that ensures your signals stay strong and clear under any condition.
