Understanding the Interface EC 60169-15 Standard

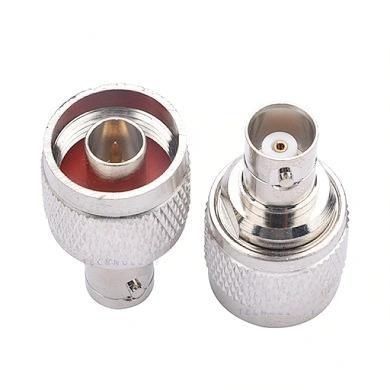

The Interface EC 60169-15 connector is a vital component in modern radio frequency (RF) systems, offering reliable performance across a wide range of applications. This connector type is designed to meet specific electrical and mechanical requirements, ensuring consistent signal transmission in various environments. Whether you are working with telecommunications equipment, test and measurement devices, or broadcasting systems, this interface provides the durability and precision needed for high-frequency operations. Its robust construction and thoughtful design make it a preferred choice for engineers seeking dependable connectivity solutions.
Interface EC 60169-15: Electrical Frequency Range and Performance
The electrical frequency range of the Interface EC 60169-15 spans from DC to 12 GHz, covering a broad spectrum suitable for many RF applications. This wide frequency range allows the connector to handle both low-frequency and high-frequency signals with minimal degradation. At the core of its electrical performance is a characteristic impedance of 50 ohms, which aligns with standard RF system requirements. This matching impedance reduces signal reflections and ensures optimal power transfer between connected devices. The voltage standing wave ratio (VSWR) is maintained at ≤1.15 from DC to 3000 MHz, indicating excellent impedance matching and low signal loss during transmission. Over the entire frequency range, insertion loss remains below 0.10 dB, ensuring that the connector preserves signal integrity even in demanding setups. These electrical characteristics make the Interface EC 60169-15 a reliable choice for applications where signal quality cannot be compromised.
Mechanical Durability and Material Construction
Mechanical durability is a key feature of this connector, with a design that supports at least 500 mating cycles without performance degradation. This longevity makes it suitable for applications requiring frequent connections and disconnections, such as in test laboratories or field deployments. The materials used in the connector contribute significantly to its robustness. The insulator is made from PTFE (polytetrafluoroethylene), a material known for its excellent dielectric properties and resistance to high temperatures. The coupling nut is constructed from brass and finished with gold plating (Au), which provides corrosion resistance and ensures smooth threading during assembly. The body is made from brass with an AU/NI (gold/nickel) plating, offering both conductivity and protection against environmental factors. The center conductor is composed of phosphor bronze with a gold (Au) finish, which enhances conductivity and reduces signal loss. A gasket made from silicone rubber provides sealing and helps maintain the connector’s environmental resistance.
Environmental Specifications and Weatherproofing
The Interface EC 60169-15 is rated for operation within a temperature range of -40°C to 85°C, making it suitable for use in both cold and moderate heat conditions. This wide operating temperature ensures functionality in diverse climates, from freezing environments to warm industrial settings. Additionally, the connector achieves a weatherproof rate of IP65, meaning it is protected against dust ingress and low-pressure water jets from any direction. This IP65 rating is critical for outdoor installations or applications exposed to moisture, such as antenna systems or remote monitoring equipment. The combination of temperature resilience and weatherproofing extends the connector’s lifespan and reliability in harsh conditions.
Product Specifications Table
| Parameter | Value |
|---|---|
| Interface Standard | EC 60169-15 |
| Electrical Frequency Range | DC – 12 GHz |
| Insertion Loss | ≤0.10 dB |
| Characteristic Impedance | 50 Ω |
| VSWR | ≤1.15 @ DC-3000 MHz |
| Durability (Mating Cycles) | ≥500 |
| Operating Temperature Range | -40°C to 85°C |
| Weatherproof Rate | IP65 |
| Component | Material | Plating |
|---|---|---|
| Insulator | PTFE | — |
| Coupling Nut | Brass | Au (Gold) |
| Body | Brass | AU/NI (Gold/Nickel) |
| Center Conductor | Phosphor Bronze | Au (Gold) |
| Gasket | Silicone Rubber | — |
Conclusion: The Reliability of Interface EC 60169-15
In summary, the Interface EC 60169-15 connector stands out as a versatile and dependable solution for RF applications requiring both performance and durability. Its wide frequency range, low insertion loss, and excellent VSWR ensure signal integrity across various frequencies. The robust mechanical design, with high-quality materials and plating, supports long-term use even in demanding environments. The environmental ratings, including a wide operating temperature range and IP65 weatherproofing, make it suitable for outdoor and industrial applications. By choosing the Interface EC 60169-15, engineers and system integrators can achieve consistent connectivity and peace of mind, knowing that the interface will perform reliably under diverse conditions. This connector exemplifies the balance between technical precision and practical resilience, making it a valuable component in any RF system.
