Maximizing Wireless Coverage: Understanding High Gain Panel Directional Antennas
In the world of wireless communication, the choice between antennas can make or break your signal performance. While omnidirectional antennas are celebrated for their 360-degree coverage, they often compromise on gain. This is where the portable high gain panel directional antenna designed by ZHTED comes into play, offering exceptional signal strength in specific directions while enabling comprehensive coverage when multiple units are deployed.
Omnidirectional vs. High Gain Panel Directional Antennas
Omnidirectional Antennas: 360-Degree Coverage with Limitations
Omnidirectional antennas radiate and receive signals evenly across a full 360-degree horizontal plane. This design makes them ideal for applications requiring blanket coverage, such as homes, offices, and public spaces. However, because the signal is dispersed in all directions, the gain is typically low—usually around 12 dBi. This limitation can lead to weaker performance in scenarios where obstacles or interference compromise signal quality.
The High Gain Panel Directional Antenna Advantage
In contrast, a high gain panel directional antenna focuses energy in a specific direction, concentrating the signal for superior strength and reach. This directional approach is perfect for targeting specific areas like open office layouts, parking lots, or backyards where omnidirectional antennas fall short. The concentrated radiation pattern allows signals to travel farther and maintain higher quality over longer distances, making these antennas invaluable for outdoor installations.
Practical Applications of the 2.4GHz Outdoor WiFi Panel Antenna
A 2.4GHz outdoor WiFi panel antenna is particularly effective for scenarios demanding precise coverage or obstacle penetration. For example, in offices, parking lots, or backyards, these antennas can be mounted outdoors to extend coverage to specific zones. Proper installation is critical—requiring a clear line of sight and elevated placement—to minimize signal loss from obstructions like buildings. Similarly, a 5.8GHz outdoor WiFi panel antenna offers enhanced performance for high-frequency applications, focusing signals for robust long-distance communication.
Versatility and Customization of High Gain Panel Directional Antennas

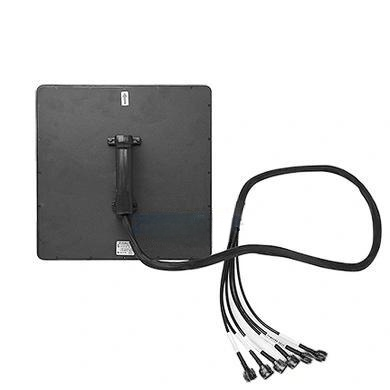

A notable feature of ZHTED’s high gain panel directional antenna is its adaptability. These antennas can be manufactured with multiple ports—ranging from 3 to 12—allowing customization based on user requirements. This flexibility, combined with a portable handheld design, makes the antenna suitable for diverse fields. The lightweight construction and high gain capabilities ensure easy portability without sacrificing performance.
Technical Specifications of the High Gain Panel Directional Antenna
For a clear understanding of this antenna’s capabilities, the following table outlines its key parameters:
| Parameter | Specification |
|---|---|
| Model | MOP-JHA-6P-NM |
| Working Frequency | 900MHz / 1.2GHz / 1.5GHz / 2.4GHz / 5.2GHz / 5.8GHz (or customized) |
| Gain | 5±1 / 8±1 / 14±1 / 16±1 dBi |
| Polarization | 3vertical / 2vertical+horizontal |
| VSWR | ≤1.8 |
| Front-to-back Ratio | ≥15 / ≥20 / ≥23 dB |
| Antenna Size | 39039050 mm |
| Connector Type | 6*N-M |
Conclusion
In summary, a high gain panel directional antenna represents a strategic upgrade over omnidirectional designs for targeted coverage. By focusing signals, these antennas deliver higher gain and strength, overcoming obstacles and extending range. Whether using a 2.4GHz outdoor WiFi panel antenna for local applications or a 5.8GHz outdoor WiFi panel antenna for specialized needs, the ability to customize port configurations enhances versatility. The portable ZHTED model exemplifies this innovation, offering a lightweight, high-performance solution for diverse scenarios. The high gain panel directional antenna is not just a tool—it is a key to reliable, focused wireless communication.
