Enhanced Signal Monitoring with a Portable Multi-Band Detection System
nnIn an era where unmanned aerial vehicles (UAVs) and wireless communications are rapidly evolving, the need for robust, adaptable, and quickly deployable signal monitoring has never been greater. The portable multi-band detection system stands as a critical tool for security professionals, military personnel, and environmental surveyors who require reliable signal monitoring and positioning across a variety of operational landscapes. Whether safeguarding sensitive airspace, managing drone traffic, or conducting field reconnaissance, this cutting-edge solution delivers exceptional performance with a focus on mobility and precision.nnDesigned to meet the demands of dynamic environments, this portable detection system is engineered for rapid deployment, high accuracy, and a broad detection spectrum. Its ability to adapt to multiple frequencies ensures comprehensive coverage, while its compact form factor allows operators to move and position it with ease. From urban settings to remote terrains, this device transforms complex signal intelligence into actionable, real-time data.nn
Core Capabilities of a Portable Multi-Band Detection System
nnThe system excels in detecting and tracking multiple drone signals simultaneously, offering a powerful solution for anti-drone operations and airspace management. With the capacity to handle scalable detection frequencies, operators can fine-tune the system to match specific mission requirements. The portable multi-band detection system supports frequencies across 900 MHz, 1.2 GHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz, covering the most common communication bands used by commercial and hobbyist drones.nn
Detection and Tracking Performance
nnBeyond mere detection, this system provides sophisticated trajectory tracking. It can monitor and display the paths of five or more targets at once, giving operators a comprehensive view of the airspace. Real-time data updates ensure that decision-makers have the most current information available, reducing reaction times and enhancing situational awareness. The combination of low azimuth error (≤1.5° RMS) and high positioning accuracy (within 10 meters) ensures that every identified target is precisely located, contributing to a detection success rate of 95% or higher.nn
| Parameter | Value | Notes |
|---|---|---|
| Detection Frequency (Hz) | 900M, 1.2G, 2.4G, 5.2G, 5.8G | Scalable |
| Detecting Positioning Distance | 1–10 km | Depends on environment |
| Detection Height | 0 m–1000 m | — |
| Number of Targets Detected Simultaneously | ≥5 sorties | — |
| Simultaneous Tracking & Display of Drone Trajectories | ≥5 articles | — |
| Azimuth Error | ≤1.5° (RMS) | — |
| Positioning Accuracy | ≤10 m | — |
| Detection Success Rate | ≥95% | — |
| Deployment Time | ≤90 s | Equipment unfolded to working condition |
| Equipment Withdrawal Time | ≤30 s | — |
| Identification Response Time | ≤5 s | — |
nn
Physical and Power Specifications

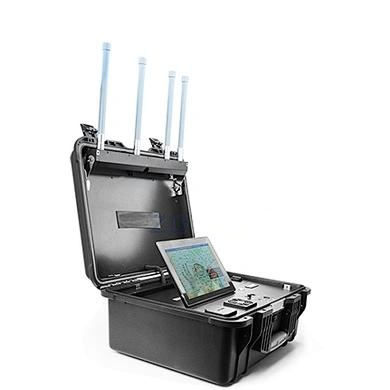

nnPortability is at the heart of this system’s design. Weighing less than 18 kg (excluding the power adapter), it fits into a compact case sized at 520 mm × 415 mm × 224 mm (±2 mm). This form factor makes it easy to transport in a vehicle or carry by hand between field locations. The system is also designed for rapid setup; it can be transitioned from a packed case to operational status in under 90 seconds and stowed away in less than 30 seconds.nnPower delivery is equally versatile. The system can run on an external power supply ranging from 100 to 220 V AC, or operate on battery for approximately four hours when off-grid. With an overall power consumption of ≤100 W, the device strikes a balance between performance and energy efficiency, making it suitable for extended missions where access to mains electricity may be limited.nn
| Item | Parameter | Notes |
|---|---|---|
| Weight | ≤18 kg | Power adapter not included |
| Size (Case Closed) | (520 mm × 415 mm × 224 mm) ±2 mm | — |
nn
| Item | Parameter | Notes |
|---|---|---|
| Overall Power Consumption | ≤100 W | — |
| External Power Voltage | 100–220 V AC | — |
| Battery Life | About 4 hours | When battery powered |
nn
Practical Applications and Deployment Scenarios
nnThe portable multi-band detection system is ideally suited for a wide range of operational needs. Security teams can deploy it at airports, stadiums, or government events to monitor for unauthorized drone activity. Military units can use it for perimeter defense, providing early warning and tracking of aerial threats. In civilian contexts, it supports environmental monitoring, search-and-rescue operations, and airspace management in complex terrains.nnThanks to its scalable frequency support and rapid deployment capabilities, the system is a reliable asset in both planned operations and emergency response situations. Its quick identification response time (≤5 seconds) ensures that no threat goes undetected for long, while the precision tracking enables effective countermeasures or evasive actions.nn
Conclusion: A Trusted Partner in Airspace Security
nnIn conclusion, the portable multi-band detection system represents a powerful fusion of precision engineering, user-centered design, and field-ready reliability. From its high detection success rate and low error margins to its lightweight, portable form and flexible power options, every aspect is crafted to support mission success. This portable detection system empowers operators to take control of complex airspace environments, ensuring safety, security, and situational clarity. Whether you are securing sensitive infrastructure or managing drone traffic in dynamic conditions, this solution stands as an indispensable tool for modern signal monitoring and positioning.
