Mastering Signal Control: The Power of a Single Band Power Amplifier with DDS & ALC
In the demanding world of professional security, facility protection, and complex signal management, the ability to exert precise control over specific frequency bands is not just an advantage—it’s a necessity. General-purpose amplifiers often fall short, introducing noise and instability where clarity and reliability are paramount. Enter the advanced single band power amplifier with DDS & ALC technology, a rack-mounted powerhouse designed to deliver clean, stable, and highly customizable signal amplification. This integrated module combines a signal generator with a high-power amplifier, all controlled via an intuitive touch screen interface, setting a new standard for performance and user convenience.
What is a Single Band Power Amplifier with DDS & ALC?
At its core, this device is a specialized solution for applications requiring rigorous control within a specific frequency range. The term single band indicates its focus on a dedicated spectrum (2399–2503MHz in this model), ensuring optimized performance and minimal interference. The DDS (Direct Digital Synthesis) component allows for incredibly precise frequency generation and tuning, while ALC (Automatic Level Control) ensures output power remains stable and consistent, even under varying load conditions. This combination results in a signal that is not only powerful but remarkably clean and dependable.
Uncompromising Technical Specifications for Reliable Performance
The true value of this module lies in its meticulously engineered specifications. To ensure absolute clarity and precision, the key technical parameters are detailed below. This data is critical for system integrators and engineers who require verifiable performance metrics.
| Parameter | Specification | Remark / Condition |
|---|---|---|
| Working Frequency | 2399 – 2503 MHz | Dedicated single band |
| Max Output Power | 100 W | CW output at 28V |
| Operating Voltage | 24 – 36 V DC | Nominal 28V |
| Conversion Efficiency | ≥ 42% | @ 100W output |
| Adjustable Output Power | 10W ~ 100W | Software controlled via DDS & ALC |
| ALC Power Adjustment Range | ≥ 20 dB | Voltage controlled attenuation |
| Gain | 50 ± 1.0 dB | Ensures stable signal boost |
| In-Band Flatness | ≤ 2.5 dB | Peak to peak fluctuation |
| In-Band Spurious Emissions | ≤ -15 dBm/1MHz | Measured at max output with CW signal |
| Input VSWR | ≤ 1.35 | Add +28V, standard network output -10dBm |
| Output VSWR | ≤ 1.35 | Powered on, dual directional coupler test |
| Max Allowable Input Power | ≥ +10 dBm | Lasts 1 minute without damage |
Integrated Intelligence and Comprehensive Monitoring
Beyond raw power, this single band power amplifier with DDS & ALC is a smart system. It features an array of intelligent protection circuits and query functions that provide real-time insight and safeguard the module and connected equipment from damage.
Intelligent Protection System
The module automatically monitors critical parameters and can initiate safe shutdown or recovery to prevent failure. This includes alarms for:
– Over-temperature: Automatically shuts down the amplifier if the internal temperature exceeds 85°C, and restores power when it cools to 65°C.
– Over-voltage / Under-voltage: If voltage exceeds 32V, the system shuts down to prevent damage.
– Overcurrent: Automatic shutdown is triggered when current exceeds 12A.
– VSWR (Standing Wave): If the output standing wave ratio is greater than 4 (indicating a mismatched load), the amplifier is automatically turned off to protect the output stage.
– Overpower / Under-power: The system monitors actual output power against set thresholds and provides alerts.
Real-Time Parameter Query and Control
The user-friendly touch screen interface allows operators to query and adjust settings on the fly. Key monitoring functions include:
– Amplifier switch status (ON/OFF)
– Downstream output power level (detection range: Pomax+2 to Pomax-20)
– Downward standing wave ratio value
– Internal module temperature (detection range: -40°C to +100°C)
– ALC set value
– Module operating voltage and current
Versatile Signal Generation Modes
The integrated DDS signal generator offers remarkable flexibility for different scenarios:
– Mode 1: Set any single frequency point within the 2399-2503 MHz range.
– Mode 2: Broadband frequency sweep mode, with adjustable frequency interval and step.
– Mode 3: Set any 4 sub-frequency segments within the operating bandwidth, allowing for complex, segmented scanning.
Environmental Resilience and Physical Design

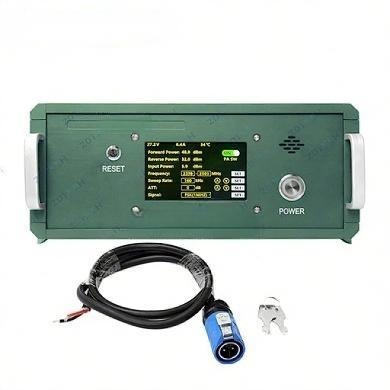

Designed for rigorous professional use, the module is built to last. It operates reliably across a wide temperature range of -10°C to +65°C, and even demonstrates stable gain and power performance from -40°C to +65°C. The rack-mounted chassis features an N-type female RF connector and a communication interface using RS485 protocol (7W2 male connector, pins 1: 485A, 2: 485B). A clear status panel with POWER, RUN, and ALARM LEDs provides at-a-glance system awareness.
Conclusion: The Ultimate Tool for Precision Signal Management
In an environment where signal integrity and reliability are non-negotiable, the single band power amplifier with DDS & ALC stands out as a superior solution. It seamlessly integrates high-power amplification with intelligent control and robust protection, offering engineers and security professionals an unmatched level of command over their signal environment. From its clean output power to its comprehensive monitoring suite and durable design, this module is engineered for the most demanding professional applications. Whether for facility protection, signal testing, or advanced communication systems, this amplifier delivers the stability, precision, and performance required to get the job done right.
