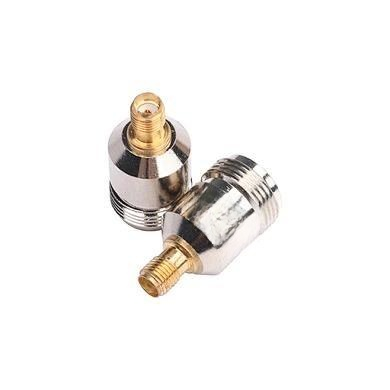

Unmatched Performance: The MOP-AD-SMAF/NF N Female to SMA Female RF Adapter
In the demanding world of high-frequency signal transmission, reliable connectivity is not just a convenience—it is a necessity. The MOP-AD-SMAF/NF stands as a premium solution among RF adapters, engineered to deliver exceptional performance in critical applications ranging from telecommunications and military systems to advanced test instrumentation. As a high-grade N female to SMA female adapter, it ensures seamless compatibility between devices with N-type and SMA interfaces while maintaining signal integrity with minimal loss. This connector adapter is precision-machined to operate across a broad frequency range, from DC to 3 GHz, making it ideal for a wide spectrum of RF applications. Its ultra-low insertion loss of ≤0.08 dB and outstanding Voltage Standing Wave Ratio (VSWR ≤1.06) guarantee negligible signal degradation, even in high-power environments. The adapter’s 50-ohm impedance ensures perfect matching with standard RF systems, while its impressive third-order intermodulation suppression (≤-155 dBc @ 2×20W) makes it suitable for the most demanding scenarios where signal clarity is non-negotiable.
Built to Last: Durability and Environmental Resilience of This SMA Adaptor
Durability is a cornerstone of this SMA adaptor, thanks to its premium materials and advanced plating technologies. The inner contact is crafted from silver-plated brass alloy, offering excellent conductivity and corrosion resistance. Meanwhile, the outer contact utilizes a Tri-Alloy plating over brass, which enhances mechanical strength and electromagnetic shielding. The insulator, made from PTFE (polytetrafluoroethylene), provides superior dielectric properties and thermal stability, ensuring consistent performance even under extreme conditions. Whether deployed in outdoor communication towers, industrial test setups, or aerospace systems, this cable adapter is built to endure. It operates flawlessly across a wide temperature range of -40°C to +85°C and boasts an IP67-rated waterproof and dustproof design, making it resilient against moisture, dirt, and other environmental challenges. Compliance with the 2011/65/EU RoHS directive further underscores its suitability for eco-conscious applications.
Key Specifications of the N Female to SMA Female Adapter
| Parameter | Value |
|---|---|
| Model | MOP-AD-SMAF/NF |
| Mounting Angle | Straight |
| Impedance | 50 Ω |
| Frequency Range | DC to 3 GHz |
| 3rd Order Inter-modulation | ≤ -155 dBc @ 2×20W |
| Inner Contact Resistance | ≤1.0 mΩ |
| Outer Contact Resistance | ≤0.4 mΩ |
| Insulation Resistance | ≥5000 MΩ·km |
| Dielectric Withstanding Voltage | ≥2500 V, RMS, 50 Hz, at sea level |
| VSWR | ≤1.06 |
| Insertion Loss | ≤0.08 dB |
| Inner Contact Material | Brass alloy plated with silver |
| Outer Contact Material | Brass alloy plated with Tri-Alloy |
| Insulator Material | PTFE |
| Temperature Range | -40 to +85 °C |
| Waterproof Rating | IP67 |
| RoHS Compliance | 2011/65/EU compliant |
Versatile Applications of This RF Adapter in Critical Industries
The N female to SMA female adapter is a versatile solution for numerous high-frequency connectivity needs. In telecommunications, it facilitates secure connections in 5G base stations and microwave links, where reliability and signal purity are paramount. For test and measurement professionals, it serves as an essential RF adapter for vector network analyzers (VNAs) and other precision instruments, ensuring accurate readings without introducing errors. Military and aerospace engineers rely on its robustness for radar systems, electronic warfare, and satellite communications, where any failure is simply not an option. The adapter’s consistent performance across a wide temperature range and its resistance to environmental stressors make it a trusted component in the field.
Why This Connector Adapter Outperforms Standard Alternatives
Unlike generic connector adapters, the MOP-AD-SMAF/NF is engineered for excellence. Its precision-machined contacts and optimized design minimize signal loss and reflection, outperforming standard adapters in critical metrics such as insertion loss and VSWR. The rugged Tri-Alloy plating and IP67 protection ensure long-term reliability, reducing maintenance needs in harsh deployments. Whether used as a standalone SMA adaptor or integrated into a larger system of cable adapters, this product delivers consistent, high-fidelity performance. The combination of superior electrical properties and robust construction makes it the go-to choice for engineers who demand uncompromised quality in their RF connections.
Conclusion: The Ultimate Choice for High-Fidelity RF Connectivity
As a top-tier N female to SMA female adapter, this product exemplifies the best in RF adapter technology. It seamlessly integrates into systems requiring connector adapters, whether as a standalone SMA adaptor or part of a broader network of cable adapters. With its unmatched electrical performance, rugged construction, and environmental resilience, the MOP-AD-SMAF/NF is the ideal choice for professionals who demand nothing less than perfection in RF connectivity. For telecommunications, testing, military, or aerospace applications, this adapter ensures that your signal remains clear, strong, and reliable, no matter the conditions.
