Precision RF Dummy Loads: The Key to Stable System Performance

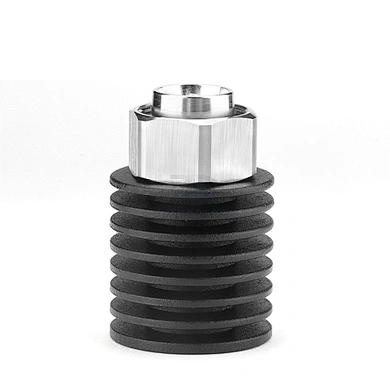

nnIn the demanding world of radio frequency engineering, signal integrity is paramount. Whether you are maintaining a cellular base station, calibrating laboratory instruments, or developing next-generation wireless equipment, a reliable termination point is essential. The MOP-DL-3GHz series of RF dummy loads provides this critical function with exceptional precision. These components are not just accessories; they are foundational to ensuring that your RF systems operate without interference, distortion, or reflected power damage. With a robust design tailored for frequencies from DC to 3 GHz, these loads offer a versatile solution that meets the rigorous standards of modern telecommunication and test environments.nn
Exceptional Electrical Performance: VSWR and Intermodulation
nnThe hallmark of any high-quality RF dummy load is its ability to absorb power without creating signal reflections. The MOP-DL-3GHz series excels here, maintaining a Voltage Standing Wave Ratio (VSWR) of ≤1.2:1 across the entire operating band. This low VSWR means that nearly all incident RF energy is dissipated as heat, with minimal signal bounce-back. This directly translates to protecting your sensitive transmitters and amplifiers from potential damage.nnFurthermore, the unit’s performance in multi-carrier environments is outstanding. When multiple signals are present, non-linearities can create unwanted intermodulation products that degrade system clarity. This series mitigates this effectively. The 3rd order intermodulation (PIM3) is kept exceptionally low at ≤-120 dBc when tested with two 33 dBm tones, and even under higher power conditions (2×43 dBm), it remains at ≤-105 dBc. Similarly, the 5th order intermodulation (PIM5) is suppressed to ≤-145 dBc at 2×33 dBm. These figures ensure that your signal path remains clean, making these loads ideal for applications where spectral purity is non-negotiable.nn
| Parameter | Specification |
|---|---|
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC – 3 GHz |
| VSWR | ≤1.2:1 |
| PIM3 (2×33 dBm) | ≤ -120 dBc |
| PIM3 (2×43 dBm) | ≤ -105 dBc |
| PIM5 (2×33 dBm) | ≤ -145 dBc |
| PIM5 (2×43 dBm) | ≤ -120 dBc |
| Operating Temperature | -20℃ to +55℃ |
| Humidity | ≤95% |
n
nn
Flexible Power Handling and Connector Options
nnChoosing the Right Power Rating for Your RF Dummy LoadnnOne size rarely fits all in RF engineering. The MOP-DL-3GHz series recognizes this by offering a broad selection of power dissipation ratings. From low-power applications requiring just 2W to high-power scenarios demanding 200W, there is a variant to suit your needs. This flexibility allows system designers to specify the exact component for their power budget, avoiding over-engineering and cost excess while ensuring the load can safely handle transmitted power.nnEqually important is the connector interface. The module provides extensive compatibility with standard RF connectors, including N-Type (both Male and Female), DIN 7/16 (Male and Female), BNC-Male, and PL259-Male. This variety simplifies integration into existing systems, whether you are working with tower-top amplifiers, network analyzers, or lab test jigs. For specialized requirements, custom connector types can also be accommodated, ensuring the MOP-DL-3GHz series fits seamlessly into almost any RF architecture.nn
Versatile Applications in Communications and Testing
nn
Reliable Terminal Loads for Base Stations and Instruments
nnThe practical utility of this RF dummy load extends across numerous sectors. In communication base stations, they serve as terminal loads for unused ports or for loading combiner and filter networks. Their low intermodulation performance ensures that even in dense spectral environments, the load does not become a source of interference. For test instrumentation, these loads provide a known, stable termination impedance, which is vital for accurate measurements of DUTs (Devices Under Test). Whether you are performing a simple power measurement or a complex vector network analysis, a high-quality termination is your starting point.nn
Durability in Diverse Environmental Conditions
nnReliability under stress is another key feature. Designed to operate over a temperature range of -20°C to +55°C and in humidity conditions up to 95%, the MOP-DL-3GHz series is built for both indoor labs and harsh outdoor environments. The robust construction ensures consistent electrical performance, preventing drift that could compromise system integrity. This durability, combined with its superb electrical data, makes it a trustworthy choice for engineers who demand precision and longevity.nn
Conclusion: A High-Performance Solution for Your RF Needs
nnWhen your project demands a termination that can handle wide bandwidths, suppress intermodulation products, and provide a clean 50 ohm load, the MOP-DL-3GHz series stands out as an excellent choice. Its combination of a low VSWR of 1.2:1, superior PIM performance, and flexible power options from 2W to 200W makes it a versatile tool in any RF engineer’s arsenal. By choosing the right RF dummy load for your specific power and connector requirements, you are investing in the stability, accuracy, and longevity of your entire RF system. This series delivers the dependable performance needed to keep your signals clear and your equipment safe.
